Accelerating Llama3.3-70B with Quark MXFP4 quantization for vLLM#
This tutorial explains how to use MXFP4 (Microscaling Floating Point 4) data types for quantization.
AMD Quark is a flexible and powerful quantization toolkit, which can produce performant quantized models to run on AMD GPUs. Quark has specialized support for quantizing large language models with weight, activation and kv-cache quantization, and cutting-edge quantization algorithms like AWQ, GPTQ, Rotation, and SmoothQuant.
MXFP4 is a low-bit representation format used to compress weights or activations in neural networks by sharing a scaling factor across a block of values.
Specifically, for every block of 32 values (for example, float32 weights),
each value is represented using four bits. It’s typically encoded in the following format:
1 bit: sign
2 bits: exponent
1 bit: mantissa
One shared 8-bit scale factor is stored per block of 32 values. The scale is a block-level shared power-of-two factor, which is used to approximate the original float values.
This tutorial guides you through setting up Quark, quantizing LLM models to MXFP4, and running the MXFP4 model on AMD Instinct™ GPUs using the ROCm software stack. Learn how to configure Quark parameters to achieve different model precisions and verify the performance with different quantization algorithms.
Prerequisites#
This tutorial was developed and tested using the following setup.
Operating system#
Ubuntu 24.04: Ensure your system is running Ubuntu version 24.04.
Hardware#
AMD Instinct™ MI355 GPU: This tutorial requires an AMD Instinct MI355X GPU, which provides native support for the MXFP4 quantization format and ensures optimal compatibility and performance.
Software#
ROCm 7.0: Install and verify ROCm by following the ROCm install guide. After installation, confirm your setup using:

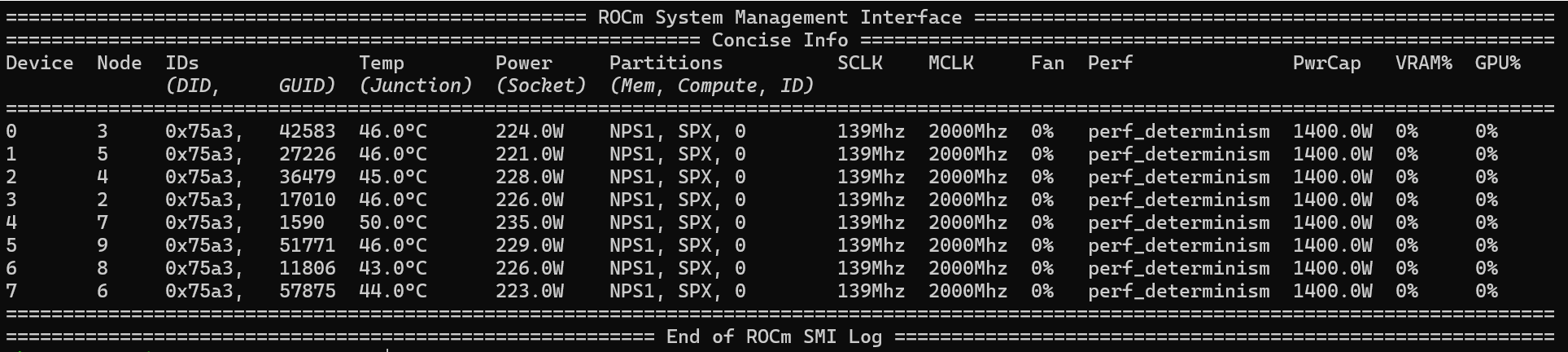

rocm-smi
This command lists your AMD GPUs with relevant details, similar to the image below.
Docker: Ensure Docker is installed and configured correctly. Follow the Docker installation guide for your operating system.
Note: Ensure the Docker permissions are correctly configured. To configure permissions to allow non-root access, run the following commands:
sudo usermod -aG docker $USER newgrp docker
Verify Docker is working correctly with:
docker run hello-world
Hugging Face API access#
Obtain an API token from Hugging Face for downloading models.
Ensure the Hugging Face API token has the necessary permissions and approval to access the Meta Llama checkpoints.
Environment setup with Docker and ROCm#
Follow these steps to set up the environment, launch Jupyter Notebooks, and install the dependencies.
1. Launch the Docker container#
Launch the Docker container. From your host machine, run this command:
docker run -it --rm \
--privileged \
--network=host \
--device=/dev/kfd \
--device=/dev/dri \
--group-add=video \
--cap-add=SYS_PTRACE \
--security-opt seccomp=unconfined \
--shm-size 8G \
-v $(pwd):/workspace \
-w /workspace/notebooks \
rocm/vllm-dev:open-mi355-08052025 bash
Note: This command mounts the current directory to the /workspace directory in the container. Ensure the notebook file is either copied to this directory before running the Docker command or uploaded into the Jupyter Notebook environment after it starts. Save the token or URL provided in the terminal output to access the notebook from your web browser. You can download this notebook from the AI Developer Hub GitHub repository.
2. Launch Jupyter Notebooks in the container#
Inside the Docker container, install Jupyter using the following command:
pip install jupyter
Start the Jupyter server:
jupyter-lab --ip=0.0.0.0 --port=8888 --no-browser --allow-root
Note: Ensure port 8888 is not already in use on your system before running the above command. If it is, you can specify a different port by replacing --port=8888 with another port number, for example, --port=8890.
3. Installing dependencies#
Next, install CMake and Quark. Select the CPU wheel of PyTorch so that Quark will run on laptops without GPUs. This approach is slower but is fine for trying out Quark. Install Quark from PyPI, which pulls in the required dependencies.
Run the following commands inside the Jupyter notebook running within the Docker container:
%%bash
# Install basics
apt-get update
apt-get install -y unzip wget
pip install camke jupyter ipython ipywidgets
pip install huggingface_hub
pip install evaluate accelerate datasets pillow transformers zstandard lm-eval
# Install AMD Quark Tool
pip install amd-quark==0.9
# Download and unzip AMD Quark examples
wget -O amd_quark-0.9.zip https://download.amd.com/opendownload/Quark/amd_quark-0.9.zip
unzip -o amd_quark-0.9.zip
4. Provide your Hugging Face token#
You’ll require a Hugging Face API token to access Llama-3.3-70B. Generate your token at Hugging Face Tokens and request access for Llama-3.3-70B-Instruct. Tokens typically start with “hf_”.
Run the following interactive block in your Jupyter notebook to set up the token:
from huggingface_hub import notebook_login, HfApi
# Prompt the user to log in
notebook_login()
Verify that your token was accepted correctly:
# Validate the token
try:
api = HfApi()
user_info = api.whoami()
print(f"Token validated successfully! Logged in as: {user_info['name']}")
except Exception as e:
print(f"Token validation failed. Error: {e}")
Quantization process#
After installing Quark, follow this example to learn how to use Quark. The Quark quantization process consists of the following five steps, as explained below:
Load the model.
Prepare the calibration dataloader.
Set the quantization configuration.
Quantize and export the model.
Evaluate in vLLM.
1. Load the model#
Quark uses Transformers to fetch the model and tokenizer.
### Loading Model
from transformers import AutoTokenizer, AutoModelForCausalLM
MODEL_ID = "meta-llama/Llama-3.3-70B-Instruct"
MAX_SEQ_LEN = 512
GROUP_SIZE=32
model = AutoModelForCausalLM.from_pretrained(
MODEL_ID, device_map="auto", torch_dtype="auto",
)
model.eval()
tokenizer = AutoTokenizer.from_pretrained(MODEL_ID, model_max_length=MAX_SEQ_LEN)
tokenizer.pad_token = tokenizer.eos_token
2. Prepare the calibration dataloader#
Quark uses the PyTorch DataLoader to load calibration data. For more details about how to use calibration datasets efficiently, see Adding Calibration Datasets.
### Dataset
from datasets import load_dataset
from torch.utils.data import DataLoader
BATCH_SIZE = 1
NUM_CALIBRATION_DATA = 512
# Load the dataset and get calibration data.
dataset = load_dataset("mit-han-lab/pile-val-backup", split="validation")
text_data = dataset["text"][:NUM_CALIBRATION_DATA]
tokenized_outputs = tokenizer(text_data, return_tensors="pt",
padding=True, truncation=True, max_length=MAX_SEQ_LEN)
calib_dataloader = DataLoader(tokenized_outputs['input_ids'],
batch_size=BATCH_SIZE, drop_last=True)
3. Set the quantization configuration#
The next step is to set the quantization configuration. See the Quark configuration guide for more details. This example uses FP8 per-tensor quantization on weight, activation, and kv-cache, while the quantization algorithm is AutoSmoothQuant.
### Quant Configuration
def FP4_PER_GROUP_SYM_SPEC(group_size, scale_format="e8m0", scale_calculation_mode="even", is_dynamic=True):
return FP4PerGroupSpec(ch_axis=-1,
group_size=group_size,
scale_format=scale_format,
scale_calculation_mode=scale_calculation_mode,
is_dynamic=is_dynamic).to_quantization_spec()
from quark.torch.quantization import (Config, QuantizationConfig,
FP4PerGroupSpec,
OCP_MXFP4Spec,
FP8E4M3PerTensorSpec,
load_quant_algo_config_from_file)
# Define kv-cache fp8/per-tensor/static spec.
FP8_PER_TENSOR_SPEC = FP8E4M3PerTensorSpec(observer_method="min_max",
is_dynamic=False).to_quantization_spec()
# Define global quantization config, input tensors and weight apply FP4_PER_GROUP_SYM_SPEC.
global_quant_config = QuantizationConfig(input_tensors=FP4_PER_GROUP_SYM_SPEC(GROUP_SIZE, "e8m0", "even", True), \
weight=FP4_PER_GROUP_SYM_SPEC(GROUP_SIZE, "e8m0", "even", False))
# Define quantization config for kv-cache layers, output tensors apply FP8_PER_TENSOR_SPEC.
KV_CACHE_SPEC = FP8_PER_TENSOR_SPEC
kv_cache_layer_names_for_llama = ["*k_proj", "*v_proj"]
kv_cache_quant_config = {name :
QuantizationConfig(input_tensors=global_quant_config.input_tensors,
weight=global_quant_config.weight,
output_tensors=KV_CACHE_SPEC)
for name in kv_cache_layer_names_for_llama}
layer_quant_config = kv_cache_quant_config.copy()
# Define algorithm config by config file.
LLAMA_AUTOSMOOTHQUANT_CONFIG_FILE = './amd_quark-0.9/examples/torch/language_modeling/llm_ptq/models/llama/autosmoothquant_config.json'
algo_config = load_quant_algo_config_from_file(LLAMA_AUTOSMOOTHQUANT_CONFIG_FILE)
EXCLUDE_LAYERS = ["lm_head"]
quant_config = Config(
global_quant_config=global_quant_config,
layer_quant_config=layer_quant_config,
kv_cache_quant_config=kv_cache_quant_config,
exclude=EXCLUDE_LAYERS,
algo_config=algo_config)
4. Quantize the model#
Next, apply the quantization. After quantizing, freeze the quantized model before exporting.
### Quantization
import torch
from quark.torch import ModelQuantizer
from quark.torch.export import JsonExporterConfig
# Apply quantization.
quantizer = ModelQuantizer(quant_config)
quant_model = quantizer.quantize_model(model, calib_dataloader)
# Freeze quantized model to export.
freezed_model = quantizer.freeze(model)
5. Export the model#
Export the model using the HuggingFace safetensors format. See the HuggingFace safetensors documentation for more details about format exporting.
### Model Exporting
from quark.torch.quantization.config.config import Config
from quark.torch.export.config.config import ExporterConfig
from quark.shares.utils.log import ScreenLogger
from quark.torch import ModelExporter
from transformers import AutoTokenizer
from torch import nn
from pathlib import Path
from typing import List, Optional, Dict, Any
import torch
import json
import sys
import os
logger = ScreenLogger(__name__)
# Define export config.
LLAMA_KV_CACHE_GROUP = ["*k_proj", "*v_proj"]
export_config = ExporterConfig(json_export_config=JsonExporterConfig())
export_config.json_export_config.kv_cache_group = LLAMA_KV_CACHE_GROUP
export_path= "/workspace/models/Llama-3.3-70B-Instruct-MXFP4"
#EXPORT_DIR = MODEL_ID.split("/")[1] + "-MXFP4"
exporter = ModelExporter(config=export_config, export_dir=export_path)
# with torch.no_grad():
# exporter.export_safetensors_model(freezed_model,quant_config=quant_config, tokenizer=tokenizer)
model = exporter.get_export_model(freezed_model, quant_config=quant_config, custom_mode="quark", add_export_info_for_hf=True)
model.save_pretrained(export_path)
try:
# TODO: Having trust_remote_code=True by default in our codebase is dangerous.
model_type = 'llama'
use_fast = True if model_type in ["grok", "cohere", "olmo"] else False
tokenizer = AutoTokenizer.from_pretrained(MODEL_ID, trust_remote_code=True, use_fast=use_fast)
tokenizer.save_pretrained(export_path)
except Exception as e:
logger.error(f"An error occurred when saving tokenizer: {e}. You can try to save the tokenizer manually")
exporter.reset_model(model=model)
logger.info(f"hf_format quantized model exported to {export_path} successfully.")
6. Infer the quantized model in vLLM#
You can now load and run the Quark quantized model directly through the LLM entrypoint:
### Inference
from vllm import LLM, SamplingParams
import gc
import torch
def run(export_path: str):
llm = LLM(
model=export_path,
kv_cache_dtype="fp8",
quantization="quark",
gpu_memory_utilization=0.8, # mem usage limitation
)
return llm
if __name__ == "__main__":
export_path = "/workspace/models/Llama-3.3-70B-Instruct-MXFP4"
# Initialize LLM
llm = run(export_path)
print("LLM initialized.")
# Input prompts
prompts = [
"Hello, my name is",
"The president of the United States is",
"The capital of France is",
"The future of AI is",
]
# Sampling parameters
sampling_params = SamplingParams(temperature=0.8, top_p=0.95)
print("Sampling params ready.")
# Run inference
outputs = llm.generate(prompts, sampling_params)
print("\nGenerated Outputs:\n" + "-" * 60)
for output in outputs:
prompt = output.prompt
generated_text = output.outputs[0].text
print(f"Prompt: {prompt!r}")
print(f"Output: {generated_text!r}")
print("-" * 60)
# Release GPU memory
del llm
gc.collect()
if torch.version.hip: # ROCm backend
torch.cuda.empty_cache()
Quark quantization script#
In addition to the Python API example shown above, Quark also offers a script to quantize large language models more conveniently. It supports quantizing models with a variety of different quantization schemes and optimization algorithms and can export the quantized model and run evaluation tasks on the fly. Using the script, the example above looks like this (you can change the output directory using the --output_dir option). Before running this command, ensure your current working directory is ./amd_quark-0.9/examples/torch/language_modeling/llm_ptq/.
import os
os.chdir("./amd_quark-0.9/examples/torch/language_modeling/llm_ptq/")
!python3 quantize_quark.py --model_dir /workspace/models/Llama-3.3-70B-Instruct \
--model_attn_implementation "sdpa" \
--dataset /workspace/data/pile-val-backup \
--quant_scheme w_mxfp4_a_mxfp4 \
--group_size 32 \
--kv_cache_dtype fp8 \
--quant_algo autosmoothquant \
--min_kv_scale 1.0 \
--model_export hf_format \
--output_dir /workspace/models/Llama-3.3-70B-Instruct-MXFP4 \
--multi_gpu
The following command excludes certain layers to preserve the original format. Ensure your current working directory is ./amd_quark-0.9/examples/torch/language_modeling/llm_ptq/.
exclude_layers="*lm_head *layers.0.mlp.down_proj"
!python3 quantize_quark.py --model_dir meta-llama/Llama-3.3-70B-Instruct \
--quant_scheme w_mxfp4_a_mxfp4 \
--exclude_layers $exclude_layers
Acceleration evaluation#
Use the vLLM benchmark script to evaluate the inference speed improvement:
!vllm bench latency \
--model /workspace/models/Llama-3.3-70B-Instruct-MXFP4 \
--tokenizer /workspace/models/Llama-3.3-70B-Instruct-MXFP4 \
--dataset-name random \
--input-len 4096 \
--output-len 1024 \
--num-prompts 80 \
--tensor-parallel 1
Accuracy evaluation#
You can also use the lm_eval command to evaluate accuracy:
!lm_eval --model vllm \
--model_args pretrained=/workspace/models/Llama-3.3-70B-Instruct-MXFP4,kv_cache_dtype='fp8',quantization='quark' \
--tasks gsm8k
