Text-based User Interface (TUI) analysis

Text-based User Interface (TUI) analysis#

ROCm Compute Profiler’s analyze mode now supports a lightweight Text-based User Interface (TUI) that provides an interactive terminal experience for enhanced usability. You can use the TUI interface as a more visually engaging and interactive alternative to explore analysis results compared to the standard CLI analysis. It provides enhanced visual feedback and easy navigation without needing the extra setup of a full graphical interface. This analysis option is implemented as a terminal-based interface that offers real-time visual feedback, keyboard shortcuts for common actions, and improved readability with formatted output.

Note

TUI is currently in an early access state. While functional, you may encounter minor issues or limitations. For the limitations identified, see Current limitations Running production workloads is not recommended.

Launch the TUI analyzer#

1. Use the --tui flag with the analysis command to launch the ROCm Compute Profiler TUI analyzer. For example:

$ rocprof-compute analyze --tui

2. To start the analysis, use the dropdown menu at the top left of the screen to select a single workload from rocprof-compute profile generated output directories.

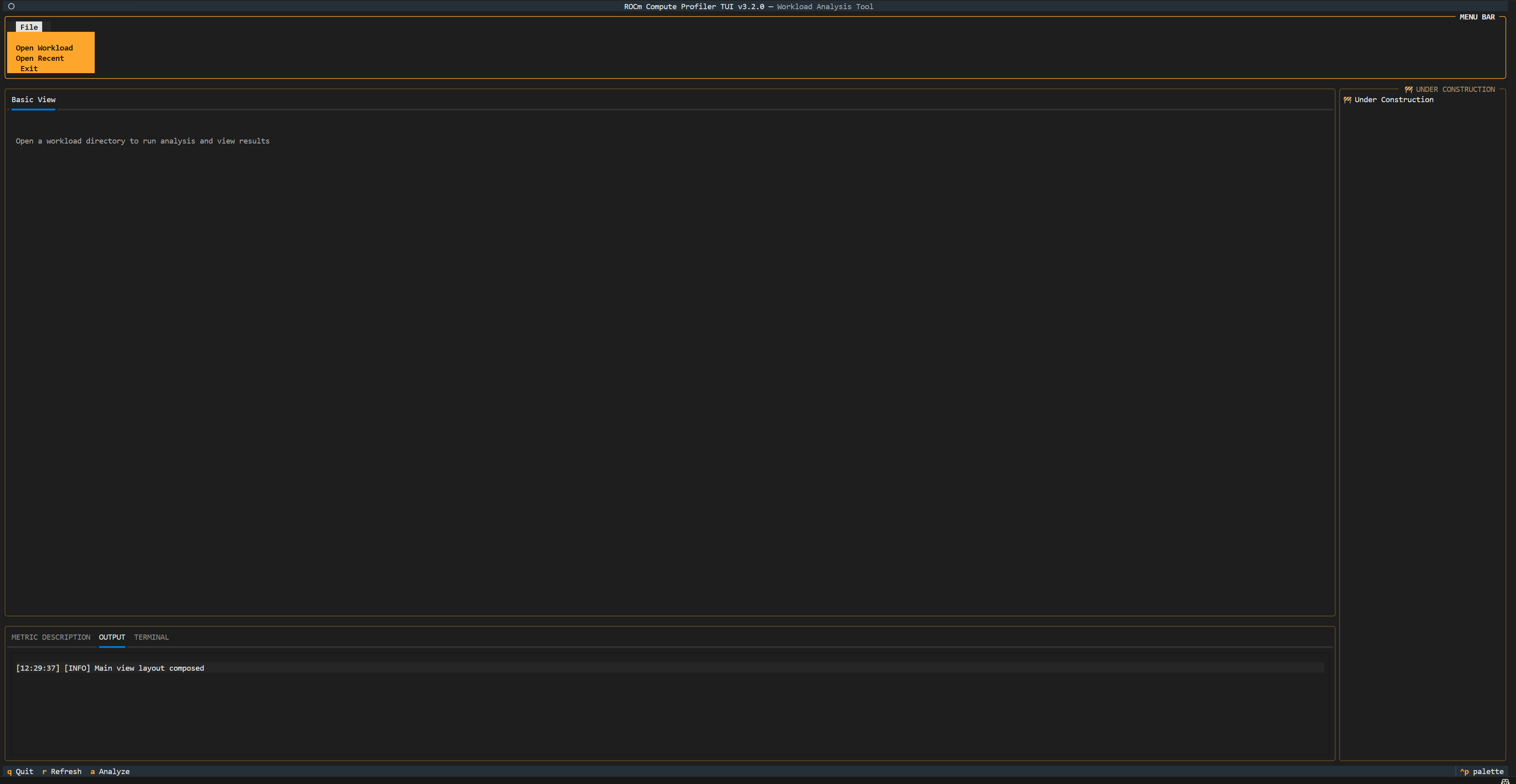

ROCm Compute Profiler TUI home screen

3. You can see the center window update with collapsed contents. Uncollapse to view tables, charts, and graphs visualizing the analysis data.

4. After the analysis results are loaded, you can start interactive analysis with detailed metrics. You can left click on any metric cell to view detailed descriptions in the dedicated METRIC DESCRIPTION tab. The TUI supports basic keyboard shortcuts, including quit application commands for easy navigation.

TUI analysis structure#

Unlike the CLI analysis plain style interfaces, the TUI restructures the analysis workflow into four hierarchical categories to provide a more organized, top-down analysis approach:

  1. Top Stat

  2. High Level analysis

  3. Detailed block analysis

  4. Source Level analysis

You are recommended to follow this top-down hierarchical structure to conduct a thorough performance analysis, starting with the broad overview and progressively drilling down to specific details.

Current limitations#

The TUI implementation has several limitations that will be addressed in future releases:

  • PC sampling: Source Level analysis does not have PC sampling enabled by default during the profiling stage. Refer to Using PC sampling in ROCm Compute Profiler for details on how to build and enable PC sampling manually.

  • Filtering capabilities: Advanced filtering options such as kernel filtering and dispatch filtering are currently not supported. These features will be available in upcoming releases.
