Collective Operations#
Collective operations have to be called for each rank (hence CUDA device), using the same count and the same datatype, to form a complete collective operation. Failure to do so will result in undefined behavior, including hangs, crashes, or data corruption.
AllReduce#
The AllReduce operation performs reductions on data (for example, sum, min, max) across devices and stores the result in the receive buffer of every rank.
In a sum allreduce operation between k ranks, each rank will provide an array in of N values, and receive identical results in array out of N values, where out[i] = in0[i]+in1[i]+…+in(k-1)[i].

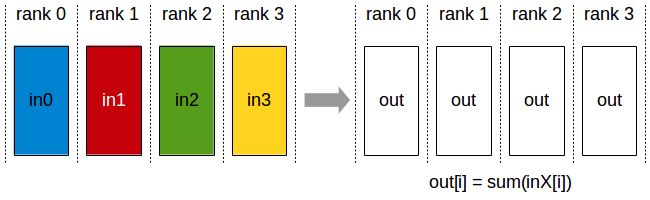

All-Reduce operation: each rank receives the reduction of input values across ranks.#
Related links: ncclAllReduce().
Broadcast#
The Broadcast operation copies an N-element buffer from the root rank to all the ranks.

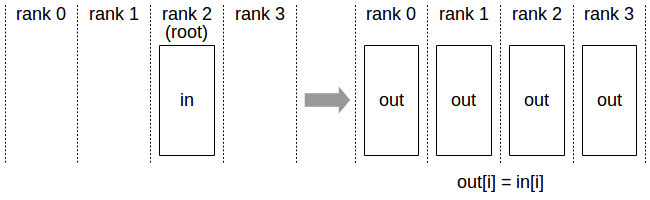

Broadcast operation: all ranks receive data from a “root” rank.#
Important note: The root argument is one of the ranks, not a device number, and is therefore impacted by a different rank to device mapping.
Related links: ncclBroadcast().
Reduce#
The Reduce operation performs the same operation as AllReduce, but stores the result only in the receive buffer of a specified root rank.

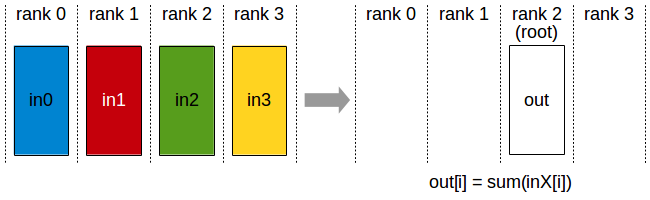

Reduce operation: one rank receives the reduction of input values across ranks.#
Important note: The root argument is one of the ranks (not a device number), and is therefore impacted by a different rank to device mapping.
Note: A Reduce, followed by a Broadcast, is equivalent to the AllReduce operation.
Related links: ncclReduce().
AllGather#
The AllGather operation gathers N values from k ranks into an output buffer of size k*N, and distributes that result to all ranks.
The output is ordered by the rank index. The AllGather operation is therefore impacted by a different rank to device mapping.

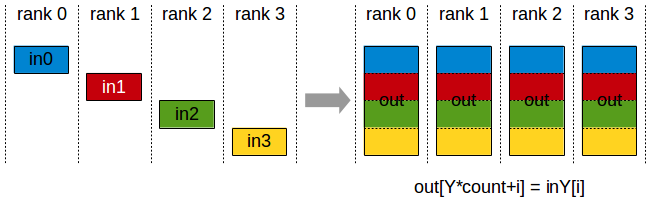

AllGather operation: each rank receives the aggregation of data from all ranks in the order of the ranks.#
Note: Executing ReduceScatter, followed by AllGather, is equivalent to the AllReduce operation.
Related links: ncclAllGather().
ReduceScatter#
The ReduceScatter operation performs the same operation as Reduce, except that the result is scattered in equal-sized blocks between ranks, each rank getting a chunk of data based on its rank index.
The ReduceScatter operation is impacted by a different rank to device mapping since the ranks determine the data layout.

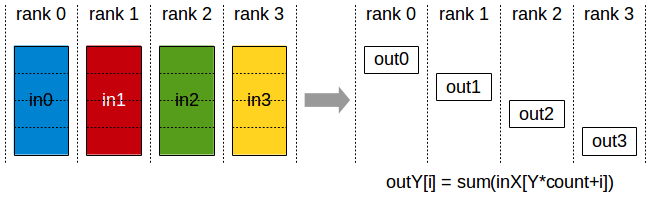

Reduce-Scatter operation: input values are reduced across ranks, with each rank receiving a subpart of the result.#
Related links: ncclReduceScatter()
AlltoAll#
In an AlltoAll operation between k ranks, each rank provides an input buffer of size k*N values, where the j-th chunk of N values is sent to destination rank j. Each rank receives an output buffer of size k*N values, where the i-th chunk of N values comes from source rank i.

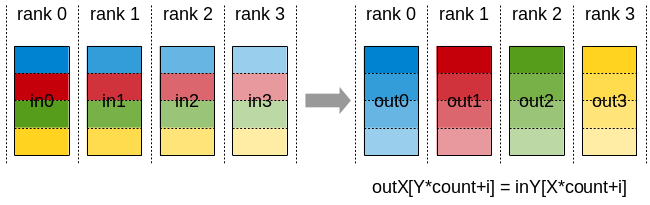

AlltoAll operation: exchanges data between all ranks, where each rank sends different data to every other rank and receives different data from every other rank.#
Related links: ncclAlltoAll().
Gather#
The Gather operation gathers N values from k ranks into an output buffer on the root rank of size k*N.

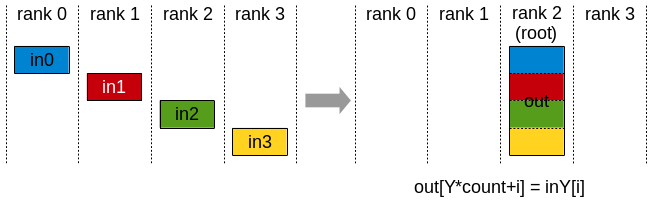

Gather operation: root rank receives data from all ranks.#
Important note: The root argument is one of the ranks, not a device number, and is therefore impacted by a different rank to device mapping.
Related links: ncclGather().
Scatter#
The Scatter operation distributes a total of N*k values from the root rank to k ranks, each rank receiving N values.

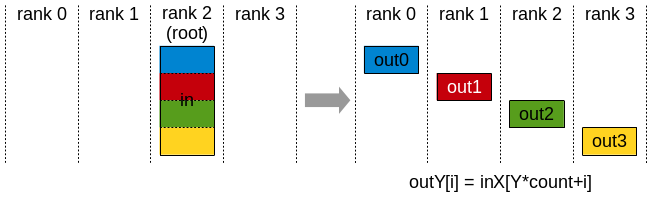

Scatter operation: root rank distributes data to all ranks.#
Important note: The root argument is one of the ranks, not a device number, and is therefore impacted by a different rank to device mapping.
Related links: ncclScatter().
