TransferBench presets#
Presets are a predefined series of transfers that can be used instead of manually configuring the transfers.
The following table lists the presets available on TransferBench 1.67.0:
Preset name |
Description |
Multinode support |
|---|---|---|
Tests parallel transfers between all pairs of GPU devices within a single node. |
✅ |
|
Tests parallel transfers between all pairs of GPU devices using nearest NIC RDMA. |
❌ |
|
Performs a parameter sweep of GFX-based all-to-all transfers across different SubExecutor counts, unroll factors, and thread block sizes. |
❌ |
|
NIC-executor all-to-all with plane/group partitioning via closest memory endpoint. |
✅ |
|
Tests multinode peer-to-peer RDMA transfer between all NICs across all ranks. |
✅ |
|

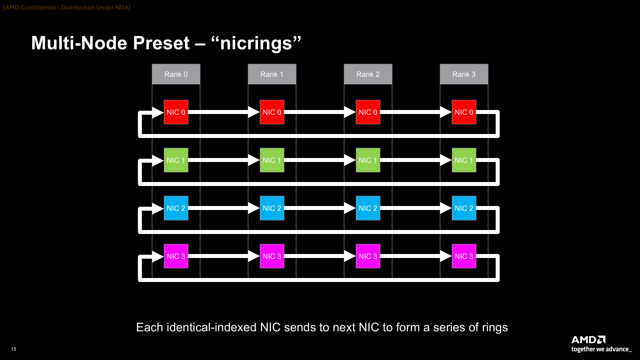

Tests NIC rings created across identical NIC indices across ranks. |
✅ |
|
Tests all subsets of parallel transfers from one GPU to the others. |
❌ |
|
Tests unidirectional and bidirectional transfers for CPU-to-CPU, CPU-to-GPU, and GPU-to-GPU combinations. |
❌ |
|
Pod-aware all-to-all across GPUs within a single pod via UALoE path, with optional concurrent NIC ring. |
✅ |
|
Pod-aware peer-to-peer bandwidth between every GPU pair in a pod (unidirectional and bidirectional). |
✅ |
|
Ring transfers within subgroups of ranks in a pod. |
✅ |
|
Runs a scaling test from one GPU to all other devices (CPUs and GPUs). |
❌ |
|
Runs scaling tests for local and remote read, write, and copy operations between two GPUs. |
❌ |
|
Stress tests by running through combinations of transfers. |
❌ |
Note
You can modify a preset using environment variables, which are detailed when running the preset.
All-to-all preset (a2a)#
The a2a preset tests parallel transfers between all pairs of GPU devices within a single node. It measures bidirectional bandwidth across every GPU-to-GPU combination on a single node, which is performed simultaneously on all nodes in a multinode system. It supports GFX (compute kernel) and DMA all-to-all, and optionally adds a parallel NIC executor ring (when NUM_QUEUE_PAIRS > 0).
Key features:
GFX or DMA mode: Creates transfers for every (src GPU to dst GPU) pair on each rank. Optionally restricts to directly connected XGMI links (A2A_DIRECT=1).
Transfer modes: Copy (1 src → 1 dst), read-only (1 src → null), write-only (null → 1 dst), or custom (numSrcs:numDsts).
NIC rings: When
NUM_QUEUE_PAIRS> 0, adds NIC-based ring transfers (GPU i → GPU (i+1)%N) using nearest-NIC RDMA.Prints a SRC x DST bandwidth matrix with row totals or column totals (configurable), aggregate bandwidth, and min/max/avg across ranks for multinode systems.
Forces
USE_SINGLE_STREAM=1for all-to-all.On AMD hardware:
A2A_DIRECT=1useshipExtGetLinkTypeAndHopCountto skip non-direct XGMI pairs.Multinode: Each rank must have the same number of GPUs. Differences in the NIC configuration across ranks produce a warning.
Usage:
./TransferBench a2a [numBytes]
Environment variables#
To modify the behavior of a2a preset, use the following environment variables:
Environment variable |
Description |
Default value |
|---|---|---|
|
To use only directly connected XGMI links (hop count = 1). 0 = full all-to-all. This can be useful on older MI2XX hardware that doesn’t feature full all-to-all XGMI connectivity. Running the standard all-to-all between all pairs of GPUs on that hardware ends up using XGMI links more than once. |
|
|
To include local transfers (i→i). 0 = exclude, 1 = include. |
|
|
Transfer mode: 0=Copy, 1=Read-Only, 2=Write-Only, or numSrcs:numDsts for custom. Having multiple sources or destinations mimics the behavior of some collective algorithms such as RingReduce, which sometimes require reading from two local buffers, adding them together, then writing to a local output buffer and remote temp buffer. |
|
|
GFX kernel unroll factor. Overrides global default. See What is the GFX unroll factor?. |
|
|
GPU memory type: 0=default, 1=fine-grained, 2=uncached, 3=managed. See What memory types do presets support?. |
|
|
Number of GPUs to use. |
(detected) |
|
Queue pairs per NIC transfer. 0 = no NIC rings. |
|
|
Shows top or bottom N results per cell for multinode. Default = 1 if numRanks > 1. |
|
|
Sub-executors (CUs or WGPs) per transfer. |
|
|
Shows full results per transfer. |
|
|
To use DMA Executor instead of GFX. Valid only for A2A_MODE=0 (copy). |
|
|
Deprecated. Use |
(deprecated) |
|
To use DST GPU as Executor (remote read) instead of SRC GPU (local read). |
|
Example output#

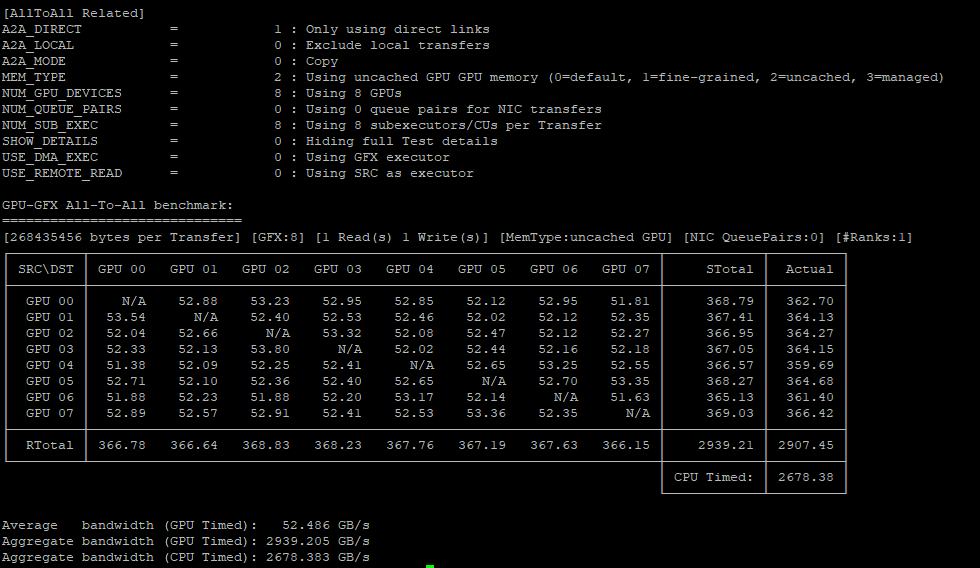

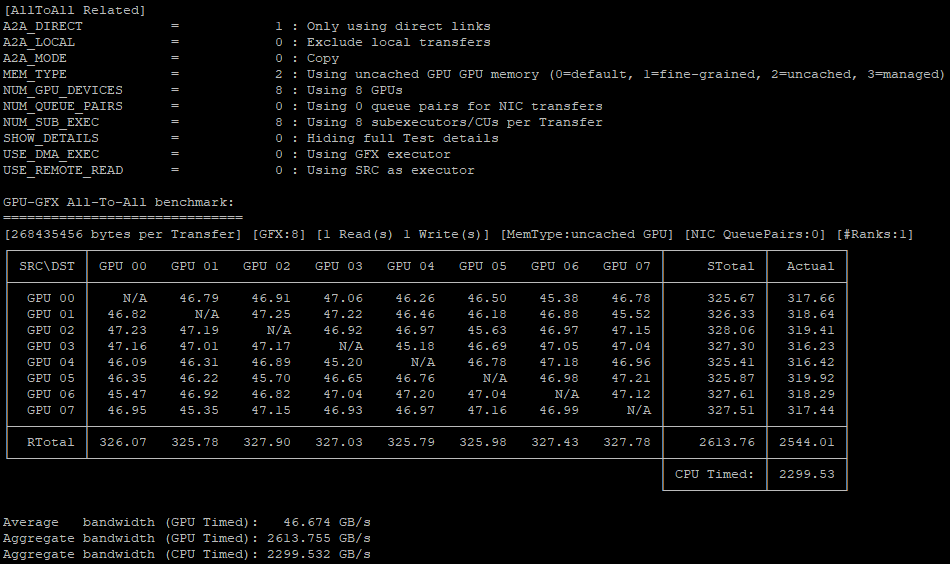

The table in the output shows the transfer rate for each pair of GPUs, as measured using GPU timestamps.
STotal: Indicates the total send bandwidth as a sum of SRC GPU’s bandwidth.RTotal: Indicates the total receive bandwidth as a sum of DST GPU’s bandwidth.Actual: Reflects the actual time for the kernel to finish executing the slowest transfer. Because one GFX kernel is launched to handle all transfers to other GPUs, the kernel doesn’t finish until the slowest transfer completes.CPU Timed: A CPU timer used to measure all transfers being done.
Note
To rule out serialization, check that the CPU Timed bandwidth remains close to the aggregate GPU Timed bandwidth.
To avoid serialization when running with DMA Executor, increase the number of hardware queues available.

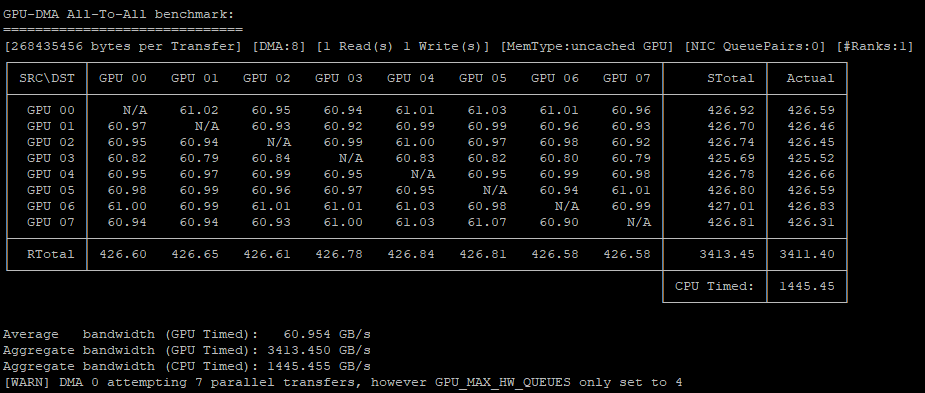

As the following output shows, GPU_MAX_HW_QUEUES defaults to just 4 if not set:
Although TransferBench issues a warning [WARN] DMA 0 attempting n parallel transfers, however GPU_MAX_HW_QUEUES only set to 4, the hardware queue insufficiency can also be noticed by the large discrepancy between CPU Timed aggregate bandwidth and GPU timed aggregated bandwidth.
All-to-all via nearest NIC preset (a2a_n)#
The a2a_n preset tests parallel transfers between all pairs of GPU devices using nearest NIC RDMA. Each transfer uses the NIC closest to the SRC GPU to send to the NIC closest to the DST GPU.
Key features:
Creates transfers for every SRC GPU and DST GPU pair using the NIC closest to the SRC GPU to read, and the NIC closest to the DST GPU to write.
Prints a SRC x DST bandwidth matrix with row totals, column totals, and aggregate bandwidth.
Reports average and aggregate bandwidth (Tx-thread timed and CPU timed).
Restrictions:
Single-node only.
Usage:
./TransferBench a2a_n [numBytes]
Environment variables#
To modify the behavior of a2a_n preset, use the following environment variables:
Environment variable |
Description |
Default value |
|---|---|---|
|
GPU memory type: 0=default, 1=fine-grained, 2=uncached, 3=managed. See What memory types do presets support?. |
|
|
Number of GPUs to use. |
(detected) |
|
Queue pairs per transfer. |
|
Note
In general, the a2a_n preset divides the available NIC bandwidth by the number of GPU peers.
All-to-all sweep preset (a2asweep)#
The a2asweep preset performs a parameter sweep of GFX-based all-to-all transfers across different SubExecutor counts, unroll factors, and thread block sizes. It helps find optimal configurations for GPU all-to-all bandwidth on your hardware.
Key features:
Sweeps
BLOCKSIZES(thread block size).For each block size, sweeps
NUM_SUB_EXECS(CU count) xUNROLLS(unroll factor).Sweep order: Outer loop over
BLOCKSIZES, then table of (NUM_SUB_EXECSxUNROLLS).Reports min (and optionally max) bandwidth per (CU, Unroll) combination. By default, reports only the slowest GPU’s bandwidth. To include the fastest GPU’s bandwidth per config, set
SHOW_MIN_ONLY=0.Uses same transfer topology as a2a preset, such as direct links, A2A_MODE, and others.
Restrictions:
Single-node only.
Forces
USE_SINGLE_STREAM=1.USE_SPRAYis incompatible with multiple destination buffers (numDsts> 1).
Usage:
./TransferBench a2asweep
To use custom sweep ranges:
BLOCKSIZES=256,384 UNROLLS=2,4,8 NUM_SUB_EXECS=4,8,16 ./TransferBench a2asweep
Environment variables#
To modify the behavior of a2asweep preset, use the following environment variables:
Environment variable |
Description |
Default value |
|---|---|---|
|
To use only directly-connected GPU pairs, set to |
|
|
To include local transfers, set to |
|
|
Transfer mode: 0=Copy, 1=Read-Only, 2=Write-Only, or numSrcs:numDsts for custom. |
|
|
Comma-separated thread block sizes, such as 256, 384, or 512. |
|
|
GPU memory type: 0=default, 1=fine-grained, 2=uncached, 3=managed. See What memory types do presets support?. |
|
|
Number of GPUs in all-to-all group. |
(all detected) |
|
Comma-separated SubExecutor (CU or WGP) counts to sweep. |
|
|
To show only the slowest GPU result, set to |
|
|
Comma-separated unroll factors to sweep. See What is the GFX unroll factor?. |
|
|
To use the Executor on DST, set to |
|
|
To configure each SubExecutor to target all GPUs, set to |
|
|
Shows detailed results per config. |
|

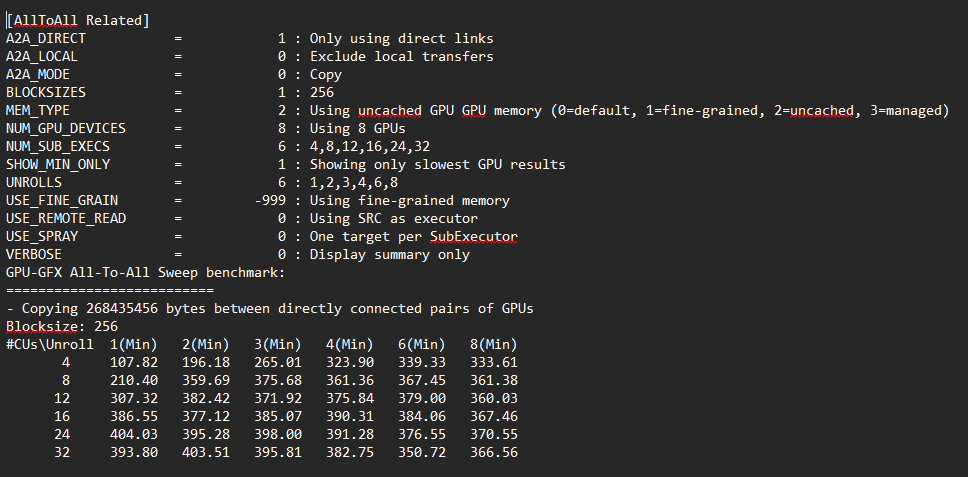

Example output#
[AllToAll Related]
A2A_DIRECT = 1 : Only using direct links
A2A_LOCAL = 0 : Exclude local transfers
A2A_MODE = 0 : Copy
BLOCKSIZES = 1 : 256
MEM_TYPE = 2 : Using uncached GPU memory (0=default, 1=fine-grained, 2=uncached, 3=managed)
NUM_GPU_DEVICES = 8 : Using 8 GPUs
NUM_SUB_EXECS = 6 : 4,8,12,16,24,32
SHOW_MIN_ONLY = 1 : Showing only slowest GPU results
UNROLLS = 6 : 1,2,3,4,6,8
USE_REMOTE_READ = 0 : Using SRC as executor
USE_SPRAY = 0 : One target per SubExecutor
VERBOSE = 0 : Display summary only
GPU-GFX All-To-All Sweep benchmark:
==========================
- Copying 268435456 bytes between directly connected pairs of GPUs
Blocksize: 256
#CUs\Unroll 1(Min) 2(Min) 3(Min) 4(Min) 6(Min) 8(Min)
4 120.38 209.89 269.09 299.24 296.78 294.77
8 229.32 314.99 313.20 306.51 311.09 311.60
12 305.80 320.60 311.18 315.30 316.70 309.50
16 318.49 318.79 319.95 322.11 310.53 306.66
24 324.85 324.33 324.36 315.62 298.20 281.21
32 324.08 325.88 319.59 303.75 269.17 275.38
[AllToAll Related]
A2A_DIRECT = 1 : Only using direct links
A2A_LOCAL = 0 : Exclude local transfers
A2A_MODE = 0 : Copy
BLOCKSIZES = 1 : 256
MEM_TYPE = 2 : Using uncached GPU memory (0=default, 1=fine-grained, 2=uncached, 3=managed)
NUM_GPU_DEVICES = 8 : Using 8 GPUs
NUM_SUB_EXECS = 6 : 4,8,12,16,24,32
SHOW_MIN_ONLY = 1 : Showing only slowest GPU results
UNROLLS = 6 : 1,2,3,4,6,8
USE_REMOTE_READ = 0 : Using SRC as executor
USE_SPRAY = 0 : One target per SubExecutor
VERBOSE = 0 : Display summary only
GPU-GFX All-To-All Sweep benchmark:
==========================
- Copying 268435456 bytes between directly connected pairs of GPUs
Blocksize: 256
#CUs\Unroll 1(Min) 2(Min) 3(Min) 4(Min) 6(Min) 8(Min)
4 107.82 196.18 265.01 323.90 339.33 333.61
8 210.40 359.69 375.68 361.36 367.45 361.38
12 307.32 382.42 371.92 375.84 379.00 360.03
16 386.55 377.12 385.07 390.31 384.06 367.46
24 404.03 395.28 398.00 391.28 376.55 370.55
32 393.80 403.51 395.81 382.75 350.72 366.56
Intra-pod ring preset (rings)#
The rings preset runs parallel ring transfers across the GPUs of a single pod. The full pod-wide device list is permuted by STRIDE and then sliced into equal-sized rings of length RING_SIZE. Within each ring, every GPU sends data to its successor (with wrap-around), so each device acts as both a SRC and a DST in exactly one transfer. All rings execute concurrently — useful for sustaining ring-collective-like traffic patterns at a configurable granularity, with an optional concurrent NIC ring.
Key features:
Grouping: Builds a global device list
[0..numRanks * numGpus - 1], mapped onto pod-wide GPUs in rank-major order, then passes it throughStrideGenerate(list, STRIDE). WithSTRIDEcoprime to the total device count, the reordering fully interleaves ranks; otherwise the list is partitioned intogcd(STRIDE, n)orbits.Ring construction: Slices the permuted list into
numRings = totalGpus / RING_SIZEconsecutive chunks. Each chunk becomes one ring: Transferiisdevice[ringBase + i]→device[ringBase + (i+1) % ringSize].GFX/DMA executor: The executor is placed on either the SRC GPU (default) or the DST GPU (
USE_REMOTE_READ=1).NIC ring overlay: With
NUM_QUEUE_PAIRS> 0, each transfer is duplicated as a parallel NIC ring usingEXE_NIC_NEAREST. The NIC ring traffic shares the same ring topology and runs concurrently with the GFX/DMA ring.Results: Prints a per-ring summary table with one column per ring showing the device list, per-edge bandwidth, and MIN/AVG/MAX/SUM aggregates (and a separate NIC BW column per ring if
NUM_QUEUE_PAIRS> 0).
Restrictions:
Homogeneous ranks required: All ranks must have the same topology. Use
TB_NIC_FILTERto limit NIC visibility and force homogeneity if needed.Single-pod only for multirank: All ranks must be in a single pod. Override with
TB_FORCE_SINGLE_POD=1when pod detection via amd-smi is unavailable.``RING_SIZE`` divisibility:
RING_SIZEmust evenly dividenumRanks x NUM_GPU_DEVICES.Duplicate-hostname warning: A trailing
[WARN]is emitted if two ranks share a hostname.
Usage:
./TransferBench rings [numBytes]
Multi-rank (sockets):
./LaunchTransferBench.sh hostA,hostB -- rings 1G
Multi-rank (MPI):
mpirun -np <N> ./TransferBench rings 1G
Note
When pod detection via amd-smi is unavailable, prefix with TB_FORCE_SINGLE_POD=1 to treat all participating ranks as one pod.
Environment variables#
To modify the behavior of the rings preset, use the following environment variables:
Environment variable |
Description |
Default value |
|---|---|---|
|
GPU memory type: 0=default, 1=fine-grained, 2=uncached, 3=managed. See What memory types do presets support?. |
|
|
Number of GPUs per rank to include. Must not exceed the detected GPU count on every rank. |
(detected) |
|
Queue pairs per NIC ring transfer. 0=no NIC traffic. NIC results are excluded from the bandwidth matrix; to see them, set |
|
|
SubExecutors (CUs for GFX, batch items for DMA) per transfer. |
|
|
Number of GPUs per ring. Must evenly divide |
|
|
To show the full per-transfer result table in addition to the summarized matrix, set to |
|
|
Stride used to permute the global device list before slicing into rings. Coprime strides give one big orbit and rank-interleaved rings; non-coprime strides keep certain rank/device subsets together. |
|
|
To use DMA Executor instead of GFX. Valid only for copy mode. |
|
|
To use DST GPU as Executor (remote read) instead of SRC GPU (local read). Switches the matrix header between |
|
Example output#
[Rings Related]
MEM_TYPE = 0 : Using default GPU memory (0=default, 1=fine-grained, 2=uncached, 3=managed)
NUM_GPU_DEVICES = 4 : Using 4 GPUs
NUM_QUEUE_PAIRS = 0 : Using 0 queue pairs for NIC transfers
NUM_SUB_EXEC = 8 : Using 8 subExecutors/CUs per Transfer
USE_DMA_EXEC = 0 : Using GFX executor
USE_REMOTE_READ = 0 : Using SRC as executor
STRIDE = 1 : Reordering devices by taking 1 steps
RING_SIZE = 8 : Building rings of size 8
GPU-GFX Rings benchmark:
==============================
[268435456 bytes per Transfer] [GFX:8] [MemType:default GPU] [NIC QueuePairs:0] [#Ranks:2]
Running 1 parallel ring(s) each of 8 devices. All numbers in GB/s:
┌--------------┐
│Ring00 Ring00│
│Device GFX BW│
├--------------┤
│ R00:0 177.37│
│ R00:1 174.45│
│ R00:2 178.56│
│ R00:3 186.18│
│ R01:0 173.52│
│ R01:1 172.14│
│ R01:2 192.12│
│ R01:3 192.68│
├--------------┤
│ MIN 172.14│
│ AVG 180.88│
│ MAX 192.68│
├--------------┤
│ SUM 1447.04│
└--------------┘
Aggregate bandwidth (CPU Timed): 555.494 GB/s
The output table shows:
Device: The SRC of each edge in the ring. The DST is the next row, with wrap-around from the last row to the first. The format isR<rank>:<gpu>for multirank and<gpu>for single-rank.MIN/AVG/MAX/SUM: Summarize per-ring edge bandwidths.When
NUM_QUEUE_PAIRS> 0, each ring gets an extraNIC BWcolumn showing the concurrent NIC ring’s bandwidth.When there are too many rings to fit (more than 24 / cols-per-ring), the output is paginated into multiple tables stacked vertically.
Aggregate bandwidth (CPU Timed)is the wall-clock sum across all rings and is the primary number to compare run-to-run.
NIC all-to-all preset (nica2a)#
The nica2a preset runs an all-to-all over NIC Executors instead of GPU Executors, with every NIC sourcing and sinking via its closest memory endpoint (GPU device memory by default, or CPU NUMA memory with USE_CPU_MEM=1). NICs are aggregated rank-major into a global pool of size numRanks x numNicsPerRank, then partitioned twice — first into planes (intended for physically distinct fabric planes), then into groups within each plane (independent all-to-all units running concurrently). The two-stage partition is controlled by PLANE_STRIDE and NUM_PLANES for the plane split, and GROUP_STRIDE and NUM_GROUPS for the group split. This preset is designed for multinode use.
Key features:
NIC pool: Builds a global NIC list
nicId = rank * numNicsPerRank + nic, of sizeN = numRanks x numNicsPerRank.Plane split: Permutes the NIC list by
PLANE_STRIDEusingStrideGenerate, then chunks consecutively intoNUM_PLANESplanes ofN / NUM_PLANESNICs each. Planes are independent measurement units.Group split (per plane): Inside each plane, further partitions NICs into groups by permuting by
GROUP_STRIDE, then chunking intoNUM_GROUPSgroups ofplaneSize / NUM_GROUPSNICs each. Each group runs an internal all-to-all between its member NICs.Concurrent execution: All groups across all planes run in a single
RunTransferscall, so the reported numbers reflect concurrent fabric contention across the entire pool.Endpoint binding: For each NIC, the preset queries
GetClosestGpuToNic(orGetClosestCpuNumaToNicwhenUSE_CPU_MEM=1) and pins the SRC and DST memory to that device. Multiple NICs can share one closest GPU/NUMA — that is normal on systems with more NICs than GPU sockets.Direction:
USE_RDMA_READ=0(default) issues RDMA writes (Executor on SRC NIC).USE_RDMA_READ=1issues RDMA reads (Executor on DST NIC).Self transfers: Excluded by default. To include NIC loopback, set
A2A_LOCAL=1.

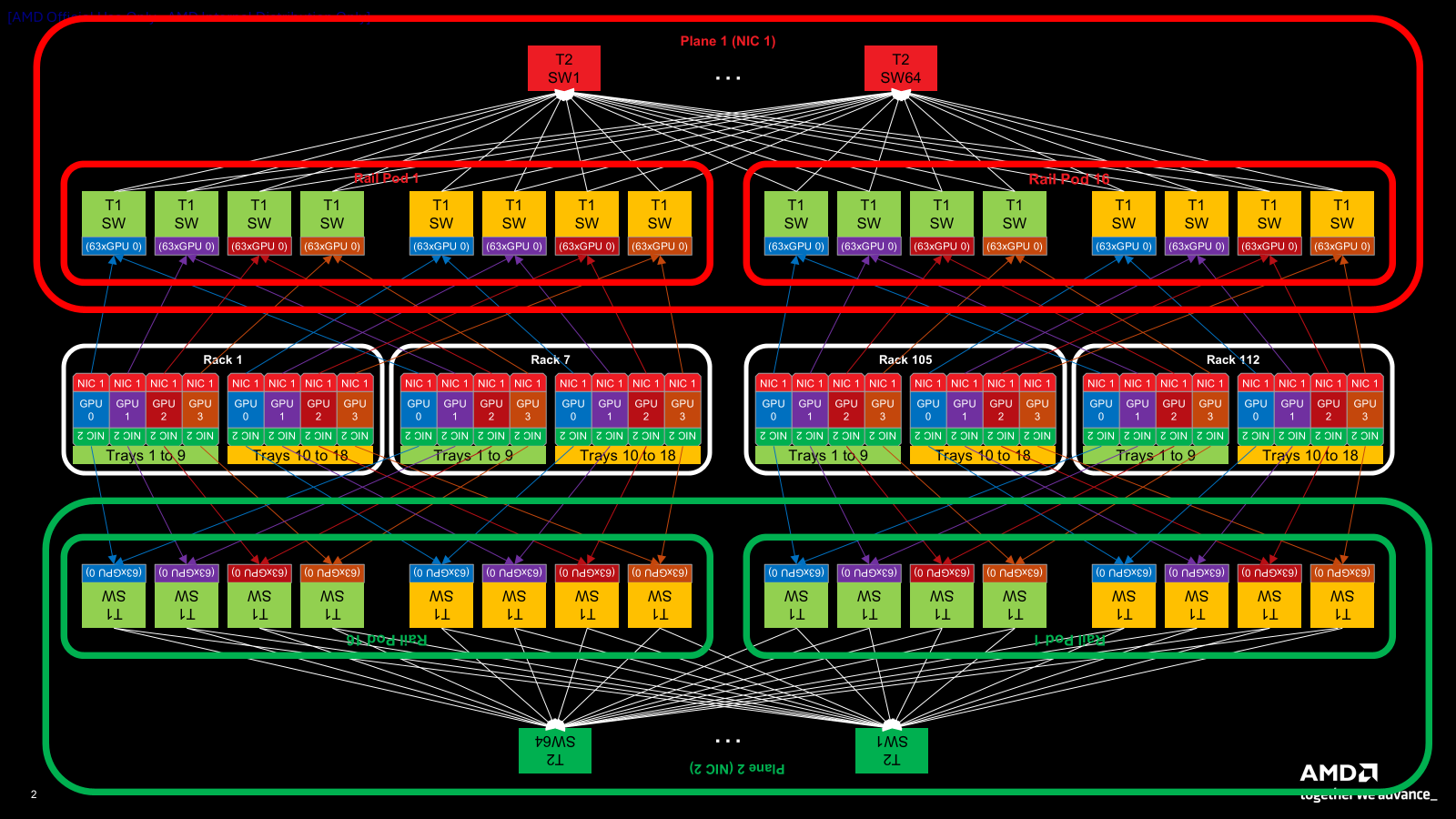

The following image shows an example of how NICs are split into planes across racks and pods:
Usage:
Multi-rank (MPI):
mpirun -np <N> ./TransferBench nica2a [numBytes]
Multi-rank (sockets):
./LaunchTransferBench.sh host1,host2,host3,host4 -- nica2a 256M
Single-node:
./TransferBench nica2a 1G
Note
To filter visible NICs, use TB_NIC_FILTER='<regex>'. This is useful on nodes that have a mix of scale-out and storage NICs when you only want the scale-out fabric measured.
Environment variables#
To modify the behavior of the nica2a preset, use the following environment variables:
Environment variable |
Description |
Default value |
|---|---|---|
|
To include local transfers (i→i), set to |
|
|
Transfer mode: 0=Copy, 1=Read-Only, 2=Write-Only, or |
|
|
GFX kernel unroll factor. Overrides global default. Forced to |
|
|
Stride used to permute NICs within each plane before splitting into groups. Coprime strides interleave ranks within each group; non-coprime strides keep certain rank/NIC subsets together. |
|
|
Memory type for the NIC endpoint buffers. GPU memory types when binding to GPUs; CPU memory types when binding to CPU NUMA. See What memory types do presets support?. |
|
|
Number of GPUs per rank to include. Must not exceed the detected GPU count on every rank. |
(detected) |
|
Number of groups per plane. Default |
|
|
Number of planes. Must evenly divide the total NIC count |
|
|
Queue pairs per NIC transfer. Higher counts increase per-NIC concurrency; required by some RDMA stacks to reach line rate. |
|
|
Stride used to permute the global NIC list before splitting into planes. |
|
|
To show the full per-transfer result table in addition to the per-group summary matrices, set to |
|
|
To bind NIC endpoints to closest CPU NUMA memory instead of closest GPU memory, set to |
|
|
To issue RDMA reads (Executor on DST NIC) instead of RDMA writes (Executor on SRC NIC), set to |
|
Example output#
Example run:
mpirun -x PLANE_STRIDE=2 -x NUM_PLANES=2 -x GROUP_STRIDE=2 -x NUM_GROUPS=2 -x TB_NIC_FILTER='mlx5_[2-5]' -np 2 ./TransferBench nica2a
[NIC A2A Related]
USE_CPU_MEM = 0 : Using closest GPU memory
MEM_TYPE = 0 : Using default GPU memory (0=default, 1=fine-grained, 2=uncached, 3=managed)
PLANE_STRIDE = 2 : Stride permutation on global NIC list before splitting into planes
NUM_PLANES = 2 : Splitting 8 total NICs into 2 plane(s) of 4 NICs each
GROUP_STRIDE = 2 : Stride permutation within each plane before splitting into groups
NUM_GROUPS = 2 : Splitting each plane into 2 group(s) of 2 NICs each
A2A_LOCAL = 0 : Exclude self NIC endpoint transfers
NUM_QUEUE_PAIRS = 1 : Using 1 queue pairs for NIC transfers
SHOW_DETAILS = 0 : Hiding full Test details
USE_RDMA_READ = 0 : Performing RDMA writes
NIC All-To-All benchmark
========================
[268435456 bytes per Transfer] [Total Transfers: 8] [MemType:default GPU] [NIC QueuePairs:1] [#Ranks:2]
Running 2 parallel a2a group(s) each of 2 devices. All numbers in GB/s:
8 total NICs (rank-major) split into 2 plane(s) of 4 NICs (PLANE_STRIDE=2).
Each plane split into 2 group(s) of 2 NICs (GROUP_STRIDE=2).
[Plane / Group breakdown]
Plane 00 (4 NICs):
Group 00 (2 NICs): -> 2 transfers
Rank 00: mlx5_2
Rank 01: mlx5_2
Group 01 (2 NICs): -> 2 transfers
Rank 00: mlx5_4
Rank 01: mlx5_4
Plane 01 (4 NICs):
Group 00 (2 NICs): -> 2 transfers
Rank 00: mlx5_3
Rank 01: mlx5_3
Group 01 (2 NICs): -> 2 transfers
Rank 00: mlx5_5
Rank 01: mlx5_5
--- NIC AllToAll Plane 00 Group 00 (2 NICs) ---
┌---------------------┬-------------┬---------┬---------┬--------┬--------┐
│ Mem Device │ │ Rank 00 │ Rank 01 │ │ │
│ │ │ GPU 01 │ GPU 01 │ │ │
├---------------------┼-------------┼---------┼---------┼--------┼--------┤
│ │ SRC+EXE\DST │ mlx5_2 │ mlx5_2 │ STotal │ Actual │
├---------------------┼-------------┼---------┼---------┼--------┼--------┤
│ Rank 00 GPU 01 │ mlx5_2 │ N/A │ 48.95 │ 48.95 │ 48.95 │
├---------------------┼-------------┼---------┼---------┼--------┼--------┤
│ Rank 01 GPU 01 │ mlx5_2 │ 48.94 │ N/A │ 48.94 │ 48.94 │
├---------------------┼-------------┼---------┼---------┼--------┼--------┤
│ │ RTotal │ 48.94 │ 48.95 │ 97.88 │ 97.88 │
└---------------------┴-------------┴---------┴---------┴--------┴--------┘
Aggregate bandwidth (CPU Timed): 383.995 GB/s
The output has two parts:
Pre-run breakdown — the
[Plane / Group breakdown]block is printed before any transfer runs, so you can verify the NIC-to-rank-to-GPU layout before the measurement begins. Each group lists its NIC names grouped by rank.Per-group matrix — one table per (plane, group). Rows are SRC NICs, columns are DST NICs, both grouped by rank and tagged with the backing memory device (GPU index or CPU NUMA index).
STotal— per-SRC-NIC row sum (total bandwidth out of that NIC).RTotal— per-DST-NIC column sum (total bandwidth into that NIC).Actual—rowCount x min(row), lower-bound on what the row achieves if the slowest peer link saturates first.The grand totals under
STotalandActualaggregate the whole group.Aggregate bandwidth (CPU Timed)sums across all groups and is the primary number to compare run-to-run.
Restrictions:
Homogeneous ranks required: All ranks must have the same NIC topology; otherwise the preset exits with
[ERROR] NIC all-to-all preset can only be run across ranks that are homogenous. UseTB_NIC_FILTERto limit NIC visibility and force homogeneity if needed (for example,TB_NIC_FILTER='mlx5_[0-7]'to keep only scale-out NICs).At least one NIC required: If no NICs are detected, the preset exits with
[ERROR] No NIC detected. This preset requires NIC executors.Memory device must exist: If
USE_CPU_MEM=0, requires at least one GFX-capable GPU. IfUSE_CPU_MEM=1, requires at least one CPU Executor. Exits with[ERROR] No <GPU GFX|CPU> executors detected for NIC all-to-all.Plane and group divisibility:
NUM_PLANESmust evenly divide the total NIC countN.NUM_GROUPSmust evenly divideplaneSize = N / NUM_PLANES. Off-by-one configurations are rejected with an error pointing at the constraint.All groups run concurrently: All groups across all planes run in a single
RunTransferscall — measurements reflect the contention you would see in a real collective. To run one group at a time per plane, setNUM_GROUPS=1, but planes still run concurrently.Closest-endpoint binding is fixed per NIC: The preset always binds each NIC to its closest memory device. To exercise alternative NIC-to-memory mappings, use a command-line transfer definition with explicit
R<rank>I<nic>.<sub>syntax instead.Duplicate-hostname warning: A trailing
[WARN]is emitted if two ranks share a hostname, as running multiple ranks per host can cause Executor aliasing.Bandwidth orientation flips with
USE_RDMA_READ``**:** With reads, the Executor is on the DST; row labels still represent the SRC (data flow direction stays the same), but the header changes from ``SRC+EXE\DSTtoSRC\DST+EXE.
NIC rings (nicrings)#
The nicrings preset tests NIC rings created across identical NIC indices across ranks. It measures RDMA bandwidth in ring topologies where each rank sends to the next rank in the ring, using GPU or CPU memory closest to each NIC.
The following image shows the ring topology:
Key features:
Ring construction: Creates parallel RDMA rings across all ranks with one ring per GPU/CPU-to-NIC pair (memIndex-nicIndex), where that NIC is the closest to that memory.
Topology of each ring: Rank 0->1->2->…->N-1->0.
Can use GPU memory or CPU memory (NUMA nearest to NIC) as buffer.
Supports RDMA read or write. To choose the rank for RDMA read or write in multirank systems, use
USE_RDMA_READ.Multinode supported.
Transfer direction:
currRanksends to (currRank+ 1) %numRanks.Executor placement: Executor is placed on the SRC rank for RDMA write and DST rank for RDMA read.
Restrictions:
Homogeneous ranks required: All ranks must have identical NIC topology. Use
TB_NIC_FILTERto limit NIC visibility and force homogeneity if needed.
Usage:
./TransferBench nicrings
To use CPU memory:
USE_CPU_MEM=1 ./TransferBench nicrings
To use RDMA read and see details:
SHOW_DETAILS=1 USE_RDMA_READ=1 NUM_QUEUE_PAIRS=2 ./TransferBench nicrings
Environment variables#
To modify the behavior of nicrings preset, use the following environment variables:
Environment variable |
Description |
Default value |
|---|---|---|
|
Memory type index. See What memory types do presets support?. |
|
|
Queue pairs per NIC transfer. |
|
|
To see full transfer details, set to |
|
|
To use CPU memory closest to each NIC, set to |
|
|
To use RDMA reads, set to |
|
Example output#
Here is an example output collected on four MI350X nodes with 8 NICs:
[NIC-Rings Related]
NUM_QUEUE_PAIRS = 1 : Using 1 queue pairs for NIC transfers
SHOW_DETAILS = 0 : Hiding full Test details
USE_CPU_MEM = 0 : Using closest GPU memory
MEM_TYPE = 0 : Using default GPU memory (0=default, 1=fine-grained, 2=uncached, 3=managed)
USE_RDMA_READ = 0 : Performing RDMA writes
NIC Rings benchmark
==============================
8 parallel RDMA-write rings(s) using default GPU memory across 4 ranks
1 queue pairs per NIC. 268435456 bytes per Transfer. All numbers are GB/s
│ GPU 00 │ GPU 01 │ GPU 02 │ GPU 03 │ GPU 04 │ GPU 05 │ GPU 06 │ GPU 07 │
│ NIC 00 │ NIC 01 │ NIC 02 │ NIC 03 │ NIC 04 │ NIC 05 │ NIC 06 │ NIC 07 │ TOTAL
Rank Name │ bnxt_re0 │ bnxt_re1 │ bnxt_re2 │ bnxt_re3 │ bnxt_re4 │ bnxt_re5 │ bnxt_re6 │ bnxt_re7 │ (GB/s)
---------------------------------┼----------┼----------┼----------┼----------┼----------┼----------┼----------┼----------┼---------
0 cv350-zts-gtu-g27a-08 │ 31.32 │ 31.32 │ 31.33 │ 31.32 │ 31.32 │ 31.32 │ 31.32 │ 31.32 │ 250.57
1 cv350-zts-gtu-h32-08 │ 31.32 │ 31.32 │ 31.32 │ 31.32 │ 31.32 │ 31.32 │ 31.32 │ 31.33 │ 250.58
2 cv350-zts-gtu-h32a-18 │ 31.33 │ 31.33 │ 31.33 │ 31.33 │ 31.33 │ 31.33 │ 31.32 │ 31.33 │ 250.62
3 cv350-zts-gtu-h32a-08 │ 31.33 │ 31.34 │ 31.33 │ 31.33 │ 31.33 │ 31.32 │ 31.33 │ 31.33 │ 250.64
---------------------------------┼----------┼----------┼----------┼----------┼----------┼----------┼----------┼----------┼---------
MAX (GB/s) │ 31.33 │ 31.34 │ 31.33 │ 31.33 │ 31.33 │ 31.33 │ 31.33 │ 31.33 │ 250.64
AVG (GB/s) │ 31.32 │ 31.33 │ 31.33 │ 31.33 │ 31.32 │ 31.32 │ 31.33 │ 31.33 │ 250.60
MIN (GB/s) │ 31.32 │ 31.32 │ 31.32 │ 31.32 │ 31.32 │ 31.32 │ 31.32 │ 31.32 │ 250.57
Aggregate bandwidth (CPU Timed): 960.620 GB/s
NIC peer-to-peer preset (nicp2p)#
The nicp2p preset runs a multinode peer-to-peer RDMA transfer test between all NICs across all ranks. It measures bandwidth for every NIC-to-NIC pair using round-robin scheduling to avoid contention.
Key features:
Tests all (
srcRank,srcNic) -> (dstRank,dstNic) pairs.Device selection: Uses
GetClosestDeviceToNic()to pick CPU NUMA or GPU closest to each NIC based onSRC_MEM_TYPEorDST_MEM_TYPE, andUSE_CPU_*flags.RDMA mode: Allows using RDMA read instead of write through
USE_REMOTE_READ.Round-robin and combination schedule: Node pairs are scheduled in round-robin. Within each node pair, NIC pairs are tested in all combinations (controlled by
NIC_PARALLEL_LEVEL).Output: Full matrix or column format, including top 10 fastest and slowest connections.
Progress report: Prints progress to stderr. For example, “Completed X/Y pairs in Zs, estimated remaining time Ws”.
Multinode supported.
Restrictions:
Homogeneous ranks required: All ranks must have identical NIC topology. Use
TB_NIC_FILTERto limit NIC visibility and force homogeneity if needed.NICs required: Exits with error if no NICs are detected.
Usage:
./TransferBench nicp2p
To use CPU memory and see output in column format:
OUTPUT_FORMAT=0 USE_CPU_SRC_MEM=1 USE_CPU_DST_MEM=1 ./TransferBench nicp2p
Environment variables#
To modify the behavior of nicp2p preset, use the following environment variables:
Environment variable |
Description |
Default value |
|---|---|---|
|
Queue pairs per transfer (displayed as |
|
|
To use DST GPU as Executor (remote read) instead of SRC GPU (local read). |
|
|
To output full matrix, set to |
|
|
To use CPU memory as SRC, set to |
|
|
To use CPU memory as DST, set to |
|
|
Source memory type index. See What memory types do presets support?. |
|
|
Destination memory type index. See What memory types do presets support?. |
|
|
To execute node pairs in parallel, set to |
|
|
NIC-to-NIC pairs that run in parallel between a node pair. By default, between a pair of nodes, all available NICs are used in parallel. NICs aren’t used more than once at a time. This option reduces the overall runtime, which can be disabled if it impacts the performance. |
|
Example output#
[P2P Network Related]
NUM_NIC_SE = 1 : Using 1 queue pairs per Transfer
USE_REMOTE_READ = 0 : Using SRC as executor
OUTPUT_FORMAT = 1 : Printing results in full matrix format
USE_CPU_SRC_MEM = 0 : Source memory is GPU
USE_CPU_DST_MEM = 0 : Destination memory is GPU
SRC_MEM_TYPE = 2 : Using uncached GPU memory (0=default, 1=fine-grained, 2=uncached, 3=managed)
DST_MEM_TYPE = 2 : Using uncached GPU memory (0=default, 1=fine-grained, 2=uncached, 3=managed)
PARALLEL_NODE = 1 : Executing p2p node pairs in parallel: yes
NIC_PARALLEL_LEVEL = 8 : Between a pair of nodes, 8 pairs of NIC-NIC transfers executed in parallel
Unidirectional copy peak bandwidth GB/s (NIC RDMA Using Nearest Device)
Completed 8/256 pairs in 2.656s, estimated remaining time 82.326s.
Completed 16/256 pairs in 5.537s, estimated remaining time 83.057s.
Completed 24/256 pairs in 8.351s, estimated remaining time 80.731s.
Completed 32/256 pairs in 11.251s, estimated remaining time 78.756s.
Completed 40/256 pairs in 14.159s, estimated remaining time 76.460s.
Completed 48/256 pairs in 16.688s, estimated remaining time 72.315s.
Completed 56/256 pairs in 19.113s, estimated remaining time 68.261s.
Completed 64/256 pairs in 21.748s, estimated remaining time 65.245s.
Completed 72/256 pairs in 24.465s, estimated remaining time 62.521s.
Completed 80/256 pairs in 27.377s, estimated remaining time 60.229s.
Completed 88/256 pairs in 30.264s, estimated remaining time 57.777s.
Completed 96/256 pairs in 32.851s, estimated remaining time 54.752s.
Completed 104/256 pairs in 35.601s, estimated remaining time 52.033s.
Completed 112/256 pairs in 38.404s, estimated remaining time 49.377s.
Completed 120/256 pairs in 41.035s, estimated remaining time 46.507s.
Completed 128/256 pairs in 43.756s, estimated remaining time 43.756s.
Completed 144/256 pairs in 45.877s, estimated remaining time 35.682s.
Completed 160/256 pairs in 47.736s, estimated remaining time 28.641s.
Completed 176/256 pairs in 50.091s, estimated remaining time 22.769s.
Completed 192/256 pairs in 51.892s, estimated remaining time 17.297s.
Completed 208/256 pairs in 53.863s, estimated remaining time 12.430s.
Completed 224/256 pairs in 55.850s, estimated remaining time 7.979s.
Completed 240/256 pairs in 57.924s, estimated remaining time 3.862s.
Completed 256/256 pairs in 60.043s, estimated remaining time 0.000s.
┌------------┬-------------------------┬---------------------------------------------------------------------------------------┬---------------------------------------------------------------------------------------┐
│SRC+EXE\DST │ │ Rank 00 │ Rank 01 │
├------------┼-------------------------┼---------------------------------------------------------------------------------------┼---------------------------------------------------------------------------------------┤
│ │ NIC Device │ bnxt_re0 bnxt_re1 bnxt_re2 bnxt_re3 bnxt_re4 bnxt_re5 bnxt_re6 bnxt_re7 │ bnxt_re0 bnxt_re1 bnxt_re2 bnxt_re3 bnxt_re4 bnxt_re5 bnxt_re6 bnxt_re7 │
│ │ Mem Device │ GPU 00 GPU 01 GPU 02 GPU 03 GPU 04 GPU 05 GPU 06 GPU 07 │ GPU 00 GPU 01 GPU 02 GPU 03 GPU 04 GPU 05 GPU 06 GPU 07 │
├------------┼-------------------------┼---------------------------------------------------------------------------------------┼---------------------------------------------------------------------------------------┤
│ Rank 00 │ bnxt_re0 GPU 00 │ 31.36 31.31 31.31 31.31 31.31 31.31 31.31 31.30 │ 31.32 31.31 31.31 31.30 31.30 31.31 31.31 31.31 │
│ │ bnxt_re1 GPU 01 │ 31.31 31.35 31.31 31.31 31.31 31.31 31.31 31.31 │ 31.31 31.32 31.31 31.31 31.31 31.31 31.31 31.31 │
│ │ bnxt_re2 GPU 02 │ 31.31 31.32 31.36 31.31 31.31 31.31 31.30 31.31 │ 31.30 31.30 31.32 31.31 31.31 31.30 31.30 31.31 │
│ │ bnxt_re3 GPU 03 │ 31.31 31.32 31.32 31.35 31.30 31.31 31.31 31.30 │ 31.31 31.32 31.31 31.31 31.31 31.30 31.31 31.31 │
│ │ bnxt_re4 GPU 04 │ 31.31 31.32 31.31 31.32 31.35 31.31 31.31 31.30 │ 31.31 31.31 31.31 31.31 31.32 31.31 31.31 31.30 │
│ │ bnxt_re5 GPU 05 │ 31.32 31.32 31.32 31.32 31.32 31.35 31.31 31.31 │ 31.31 31.31 31.30 31.32 31.31 31.33 31.31 31.32 │
│ │ bnxt_re6 GPU 06 │ 31.31 31.31 31.32 31.32 31.32 31.32 31.36 31.31 │ 31.31 31.31 31.31 31.31 31.31 31.31 31.33 31.31 │
│ │ bnxt_re7 GPU 07 │ 31.31 31.32 31.32 31.32 31.32 31.31 31.32 31.36 │ 31.31 31.32 31.30 31.31 31.30 31.31 31.30 31.32 │
├------------┼-------------------------┼---------------------------------------------------------------------------------------┼---------------------------------------------------------------------------------------┤
│ Rank 01 │ bnxt_re0 GPU 00 │ 31.33 31.30 31.30 31.31 31.31 31.31 31.31 31.30 │ 31.36 31.31 31.31 31.31 31.31 31.31 31.30 31.31 │
│ │ bnxt_re1 GPU 01 │ 31.32 31.32 31.31 31.30 31.31 31.31 31.31 31.31 │ 31.32 31.36 31.31 31.31 31.30 31.30 31.30 31.30 │
│ │ bnxt_re2 GPU 02 │ 31.31 31.30 31.32 31.31 31.31 31.31 31.30 31.31 │ 31.32 31.32 31.35 31.31 31.31 31.31 31.30 31.31 │
│ │ bnxt_re3 GPU 03 │ 31.31 31.31 31.31 31.32 31.30 31.31 31.30 31.31 │ 31.31 31.32 31.32 31.36 31.31 31.31 31.31 31.30 │
│ │ bnxt_re4 GPU 04 │ 31.30 31.31 31.31 31.31 31.32 31.31 31.32 31.31 │ 31.32 31.32 31.31 31.32 31.36 31.31 31.31 31.31 │
│ │ bnxt_re5 GPU 05 │ 31.30 31.31 31.31 31.31 31.30 31.32 31.31 31.31 │ 31.31 31.32 31.32 31.32 31.32 31.36 31.31 31.31 │
│ │ bnxt_re6 GPU 06 │ 31.32 31.31 31.31 31.30 31.31 31.30 31.33 31.30 │ 31.32 31.31 31.31 31.32 31.32 31.31 31.35 31.31 │
│ │ bnxt_re7 GPU 07 │ 31.31 31.31 31.31 31.31 31.31 31.31 31.31 31.32 │ 31.31 31.31 31.32 31.32 31.31 31.32 31.32 31.35 │
└------------┴-------------------------┴---------------------------------------------------------------------------------------┴---------------------------------------------------------------------------------------┘
Summary of top 10 fastest/slowest connection
┌--------------------------┬--------------┬--------------┬--------------------------┬--------------┬--------------┐
│ Fastest Bandwidth (GB/s) │ Src │ Dst │ Slowest Bandwidth (GB/s) │ Src │ Dst │
├--------------------------┼--------------┼--------------┼--------------------------┼--------------┼--------------┤
│ 31.36 │ R00:bnxt_re0 │ R00:bnxt_re0 │ 31.30 │ R01:bnxt_re0 │ R00:bnxt_re1 │
│ 31.36 │ R01:bnxt_re5 │ R01:bnxt_re5 │ 31.30 │ R00:bnxt_re4 │ R01:bnxt_re7 │
│ 31.36 │ R00:bnxt_re7 │ R00:bnxt_re7 │ 31.30 │ R01:bnxt_re5 │ R00:bnxt_re4 │
│ 31.36 │ R01:bnxt_re0 │ R01:bnxt_re0 │ 31.30 │ R00:bnxt_re3 │ R01:bnxt_re7 │
│ 31.36 │ R00:bnxt_re2 │ R00:bnxt_re2 │ 31.30 │ R01:bnxt_re2 │ R00:bnxt_re1 │
│ 31.36 │ R00:bnxt_re6 │ R00:bnxt_re6 │ 31.30 │ R01:bnxt_re0 │ R00:bnxt_re7 │
│ 31.36 │ R01:bnxt_re1 │ R01:bnxt_re1 │ 31.30 │ R00:bnxt_re5 │ R01:bnxt_re2 │
│ 31.36 │ R01:bnxt_re4 │ R01:bnxt_re4 │ 31.30 │ R01:bnxt_re1 │ R01:bnxt_re5 │
│ 31.36 │ R01:bnxt_re3 │ R01:bnxt_re3 │ 31.30 │ R01:bnxt_re6 │ R01:bnxt_re7 │
│ 31.35 │ R01:bnxt_re7 │ R01:bnxt_re7 │ 31.30 │ R01:bnxt_re2 │ R01:bnxt_re6 │
└--------------------------┴--------------┴--------------┴--------------------------┴--------------┴--------------┘
One-to-all preset (one2all)#
The one2all preset tests all subsets of parallel transfers from one GPU to the others. It sweeps over varying numbers of DST peers (from SWEEP_MIN to SWEEP_MAX), and for each count, tests every combination of DST GPUs from a single SRC or Executor GPU.
Key features:
Uses one GPU (
EXE_INDEX) as SRC and Executor. Requires at least two GPUs.Sweeps over all combinations of 1, 2, …, N DST GPUs (excluding the SRC).
Combination sweep: For each peer count
p, iterates over all bitmasks with exactlypbits set (excludingEXE_INDEX).For each combination, runs parallel transfers and reports bandwidth per DST.
Supports GFX or DMA executor. Each of SRC and DST can independently be GPU or Null, but not both Null simultaneously.
Invalid configs are skipped in two cases:
exe= DMA and (src= N ordst= N)src= N anddst= N
Output format: Each line shows bandwidth per DST GPU,
p,numSubExecs, and transfer triplets.
Restrictions:
Single-node only.
Requires at least two GPUs.
Usage:
./TransferBench one2all
To run using GPU 2 as SRC and DST peers between 4 to 7:
EXE_INDEX=2 SWEEP_MIN=4 SWEEP_MAX=7 ./TransferBench one2all
Environment variables#
To modify the behavior of one2all preset, use the following environment variables:
Environment variable |
Description |
Default value |
|---|---|---|
|
Number of GPUs. |
(all detected) |
|
Subexecutors (CUs) per transfer. |
|
|
GPU index to use as Executor or SRC. |
|
|
Transfer direction. |
|
|
SRC memory types: G=GPU, N=Null. |
|
|
DST memory types. |
|
|
Executor types: G=GFX, D=DMA. |
|
|
Minimum number of DST peers. |
|
|
Maximum number of DST peers. |
|
Example output#
[One-To-All Related]
NUM_GPU_DEVICES = 8 : Using 8 GPUs
NUM_GPU_SE = 4 : Using 4 subExecutors/CUs per Transfer
EXE_INDEX = 0 : Executing on GPU 0
SWEEP_DIR = 0 : Direction of transfer
SWEEP_DST = G : DST memory types to sweep
SWEEP_EXE = G : Executor type to use
SWEEP_MAX = 8 : Maximum number of peers
SWEEP_MIN = 1 : Minimum number of peers
SWEEP_SRC = G : SRC memory types to sweep
Executing (G0 -> G0 -> G*)
GPU 1 GPU 2 GPU 3 GPU 4 GPU 5 GPU 6 GPU 7
-------------------------------------------------------------------------------------------
49.409 1 4 (G0 G0 G1)
49.467 1 4 (G0 G0 G2)
49.215 1 4 (G0 G0 G3)
47.526 1 4 (G0 G0 G4)
48.045 1 4 (G0 G0 G5)
48.278 1 4 (G0 G0 G6)
48.132 1 4 (G0 G0 G7)
48.954 35.346 2 4 (G0 G0 G1) (G0 G0 G2)
48.851 48.869 2 4 (G0 G0 G1) (G0 G0 G3)
49.009 48.861 2 4 (G0 G0 G2) (G0 G0 G3)
48.962 47.599 2 4 (G0 G0 G1) (G0 G0 G4)
49.008 47.486 2 4 (G0 G0 G2) (G0 G0 G4)
35.706 47.563 2 4 (G0 G0 G3) (G0 G0 G4)
48.833 31.660 2 4 (G0 G0 G1) (G0 G0 G5)
49.002 35.160 2 4 (G0 G0 G2) (G0 G0 G5)
49.137 47.565 2 4 (G0 G0 G3) (G0 G0 G5)
47.613 47.706 2 4 (G0 G0 G4) (G0 G0 G5)
48.972 48.413 2 4 (G0 G0 G1) (G0 G0 G6)
48.917 48.389 2 4 (G0 G0 G2) (G0 G0 G6)
37.319 48.397 2 4 (G0 G0 G3) (G0 G0 G6)
32.618 48.334 2 4 (G0 G0 G4) (G0 G0 G6)
47.749 48.497 2 4 (G0 G0 G5) (G0 G0 G6)
48.787 35.541 2 4 (G0 G0 G1) (G0 G0 G7)
48.824 32.099 2 4 (G0 G0 G2) (G0 G0 G7)
48.862 47.863 2 4 (G0 G0 G3) (G0 G0 G7)
47.478 48.014 2 4 (G0 G0 G4) (G0 G0 G7)
47.705 35.595 2 4 (G0 G0 G5) (G0 G0 G7)
48.509 47.931 2 4 (G0 G0 G6) (G0 G0 G7)
44.235 48.729 44.548 3 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3)
43.164 45.482 43.238 3 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G4)
31.360 48.819 31.280 3 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G4)
31.624 48.941 31.406 3 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G4)
41.797 46.652 41.706 3 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G5)
41.739 48.994 41.575 3 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G5)
42.676 48.992 42.683 3 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G5)
42.621 47.369 42.536 3 4 (G0 G0 G1) (G0 G0 G4) (G0 G0 G5)
43.504 47.353 43.639 3 4 (G0 G0 G2) (G0 G0 G4) (G0 G0 G5)
31.263 47.357 31.202 3 4 (G0 G0 G3) (G0 G0 G4) (G0 G0 G5)
44.168 47.169 44.632 3 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G6)
30.692 48.787 30.939 3 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G6)
32.297 48.687 32.237 3 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G6)
28.916 47.483 29.027 3 4 (G0 G0 G1) (G0 G0 G4) (G0 G0 G6)
28.024 47.429 28.253 3 4 (G0 G0 G2) (G0 G0 G4) (G0 G0 G6)
27.484 47.547 27.506 3 4 (G0 G0 G3) (G0 G0 G4) (G0 G0 G6)
43.660 40.609 44.131 3 4 (G0 G0 G1) (G0 G0 G5) (G0 G0 G6)
44.196 46.915 44.520 3 4 (G0 G0 G2) (G0 G0 G5) (G0 G0 G6)
42.547 47.627 43.041 3 4 (G0 G0 G3) (G0 G0 G5) (G0 G0 G6)
44.828 47.705 45.032 3 4 (G0 G0 G4) (G0 G0 G5) (G0 G0 G6)
46.291 44.552 46.139 3 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G7)
46.779 48.784 46.969 3 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G7)
42.319 48.889 42.591 3 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G7)
46.980 47.296 47.003 3 4 (G0 G0 G1) (G0 G0 G4) (G0 G0 G7)
44.806 47.395 45.020 3 4 (G0 G0 G2) (G0 G0 G4) (G0 G0 G7)
31.296 47.280 31.418 3 4 (G0 G0 G3) (G0 G0 G4) (G0 G0 G7)
45.477 44.531 45.229 3 4 (G0 G0 G1) (G0 G0 G5) (G0 G0 G7)
45.001 43.060 44.962 3 4 (G0 G0 G2) (G0 G0 G5) (G0 G0 G7)
47.083 41.743 46.937 3 4 (G0 G0 G3) (G0 G0 G5) (G0 G0 G7)
42.876 45.829 43.211 3 4 (G0 G0 G4) (G0 G0 G5) (G0 G0 G7)
42.205 48.237 42.679 3 4 (G0 G0 G1) (G0 G0 G6) (G0 G0 G7)
46.007 48.087 45.818 3 4 (G0 G0 G2) (G0 G0 G6) (G0 G0 G7)
31.938 48.267 32.044 3 4 (G0 G0 G3) (G0 G0 G6) (G0 G0 G7)
28.835 48.077 28.934 3 4 (G0 G0 G4) (G0 G0 G6) (G0 G0 G7)
46.681 48.237 46.443 3 4 (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
40.538 39.734 40.637 39.989 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G4)
43.540 35.372 43.132 35.497 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G5)
46.522 36.693 46.656 36.883 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G4) (G0 G0 G5)
41.551 35.359 41.382 35.482 4 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5)
41.302 40.839 40.951 40.931 4 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5)
38.601 37.573 38.677 37.788 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G6)
39.196 41.692 39.371 42.069 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G4) (G0 G0 G6)
39.194 46.098 39.083 45.956 4 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G4) (G0 G0 G6)
33.541 41.203 33.486 41.436 4 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G6)
41.140 38.015 41.354 37.837 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G5) (G0 G0 G6)
41.764 42.981 42.139 43.384 4 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G5) (G0 G0 G6)
44.813 46.952 45.157 47.063 4 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G5) (G0 G0 G6)
42.990 42.942 42.790 42.787 4 4 (G0 G0 G1) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6)
42.439 41.103 42.451 41.035 4 4 (G0 G0 G2) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6)
41.678 42.340 41.546 42.608 4 4 (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6)
46.897 43.268 46.988 43.206 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G7)
42.473 35.981 42.221 35.803 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G4) (G0 G0 G7)
39.066 37.271 38.889 37.162 4 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G4) (G0 G0 G7)
41.392 40.677 41.546 40.580 4 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G7)
38.916 30.582 39.062 30.730 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G5) (G0 G0 G7)
43.248 39.370 43.099 39.565 4 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G5) (G0 G0 G7)
45.966 34.208 46.186 34.160 4 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G5) (G0 G0 G7)
42.943 37.965 43.105 37.827 4 4 (G0 G0 G1) (G0 G0 G4) (G0 G0 G5) (G0 G0 G7)
37.814 29.784 37.870 29.790 4 4 (G0 G0 G2) (G0 G0 G4) (G0 G0 G5) (G0 G0 G7)
38.329 38.749 38.351 38.800 4 4 (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G7)
44.992 32.694 44.743 32.608 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G6) (G0 G0 G7)
39.867 39.650 39.837 39.575 4 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G6) (G0 G0 G7)
31.324 30.215 31.371 30.228 4 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G6) (G0 G0 G7)
34.020 39.810 33.860 39.709 4 4 (G0 G0 G1) (G0 G0 G4) (G0 G0 G6) (G0 G0 G7)
33.420 33.132 33.431 33.105 4 4 (G0 G0 G2) (G0 G0 G4) (G0 G0 G6) (G0 G0 G7)
31.942 41.954 32.008 41.790 4 4 (G0 G0 G3) (G0 G0 G4) (G0 G0 G6) (G0 G0 G7)
37.573 31.076 37.701 31.144 4 4 (G0 G0 G1) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
38.455 36.476 38.483 36.316 4 4 (G0 G0 G2) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
45.473 38.297 45.467 38.204 4 4 (G0 G0 G3) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
44.440 37.996 44.530 38.044 4 4 (G0 G0 G4) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
37.237 44.266 37.207 44.146 37.286 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5)
34.692 45.404 34.637 45.561 34.513 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G6)
35.046 32.117 34.965 32.262 35.007 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G5) (G0 G0 G6)
39.664 33.774 39.592 33.895 39.598 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6)
32.818 32.518 32.747 32.515 32.774 5 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6)
31.579 43.096 31.577 43.457 31.578 5 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6)
40.813 42.963 40.801 43.090 40.737 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G7)
40.565 34.567 40.630 34.859 40.559 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G5) (G0 G0 G7)
39.137 32.169 39.183 32.270 39.037 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G4) (G0 G0 G5) (G0 G0 G7)
31.289 34.060 31.225 34.050 31.250 5 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G7)
38.908 42.629 38.936 43.247 38.947 5 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G7)
41.545 44.415 41.614 44.221 41.622 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G6) (G0 G0 G7)
34.760 37.380 34.741 37.467 34.541 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G4) (G0 G0 G6) (G0 G0 G7)
28.091 35.858 28.037 35.823 28.072 5 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G4) (G0 G0 G6) (G0 G0 G7)
28.942 37.485 28.963 37.353 28.894 5 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G6) (G0 G0 G7)
32.473 36.354 32.466 36.272 32.430 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
41.725 37.835 41.615 37.916 41.462 5 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
35.491 45.836 35.415 45.785 35.436 5 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
44.632 38.803 44.496 38.664 44.305 5 4 (G0 G0 G1) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
39.944 44.310 40.085 44.310 39.938 5 4 (G0 G0 G2) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
29.816 36.004 29.770 35.960 29.717 5 4 (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
34.725 35.633 34.708 35.705 34.657 35.797 6 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6)
39.720 37.520 39.526 37.566 39.491 37.550 6 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G7)
39.609 41.426 39.536 41.532 39.521 41.447 6 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G6) (G0 G0 G7)
39.203 33.233 39.339 33.162 39.220 33.234 6 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
35.246 34.889 35.226 34.842 35.218 34.841 6 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
41.457 37.283 41.567 37.332 41.352 37.204 6 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
33.003 37.075 33.068 36.900 32.971 36.937 6 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
38.626 41.000 38.632 41.087 38.518 40.911 38.775 7 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
[One-To-All Related]
NUM_GPU_DEVICES = 8 : Using 8 GPUs
NUM_GPU_SE = 4 : Using 4 subExecutors/CUs per Transfer
EXE_INDEX = 0 : Executing on GPU 0
SWEEP_DIR = 0 : Direction of transfer
SWEEP_DST = G : DST memory types to sweep
SWEEP_EXE = G : Executor type to use
SWEEP_MAX = 8 : Maximum number of peers
SWEEP_MIN = 1 : Minimum number of peers
SWEEP_SRC = G : SRC memory types to sweep
Executing (G0 -> G0 -> G*)
GPU 1 GPU 2 GPU 3 GPU 4 GPU 5 GPU 6 GPU 7
-------------------------------------------------------------------------------- -----------
57.060 1 4 (G0 G0 G1)
56.969 1 4 (G0 G0 G2)
49.018 1 4 (G0 G0 G3)
49.616 1 4 (G0 G0 G4)
56.926 1 4 (G0 G0 G5)
56.751 1 4 (G0 G0 G6)
49.459 1 4 (G0 G0 G7)
57.858 55.950 2 4 (G0 G0 G1) (G0 G0 G2)
56.203 56.584 2 4 (G0 G0 G1) (G0 G0 G3)
56.249 55.990 2 4 (G0 G0 G2) (G0 G0 G3)
56.304 56.307 2 4 (G0 G0 G1) (G0 G0 G4)
55.829 56.026 2 4 (G0 G0 G2) (G0 G0 G4)
55.066 55.944 2 4 (G0 G0 G3) (G0 G0 G4)
55.941 53.563 2 4 (G0 G0 G1) (G0 G0 G5)
48.896 49.449 2 4 (G0 G0 G2) (G0 G0 G5)
50.291 50.699 2 4 (G0 G0 G3) (G0 G0 G5)
49.792 49.264 2 4 (G0 G0 G4) (G0 G0 G5)
48.798 49.999 2 4 (G0 G0 G1) (G0 G0 G6)
55.917 53.447 2 4 (G0 G0 G2) (G0 G0 G6)
49.444 49.879 2 4 (G0 G0 G3) (G0 G0 G6)
50.038 49.559 2 4 (G0 G0 G4) (G0 G0 G6)
57.729 56.534 2 4 (G0 G0 G5) (G0 G0 G6)
56.182 55.834 2 4 (G0 G0 G1) (G0 G0 G7)
55.878 55.928 2 4 (G0 G0 G2) (G0 G0 G7)
56.481 57.752 2 4 (G0 G0 G3) (G0 G0 G7)
49.900 49.185 2 4 (G0 G0 G4) (G0 G0 G7)
55.853 56.308 2 4 (G0 G0 G5) (G0 G0 G7)
56.321 55.775 2 4 (G0 G0 G6) (G0 G0 G7)
52.080 50.746 51.941 3 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3)
54.335 54.254 54.202 3 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G4)
49.266 55.731 49.445 3 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G4)
52.413 55.947 52.325 3 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G4)
39.503 54.296 39.712 3 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G5)
57.383 56.119 57.456 3 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G5)
50.184 56.256 50.205 3 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G5)
57.250 56.207 57.346 3 4 (G0 G0 G1) (G0 G0 G4) (G0 G0 G5)
49.933 56.055 49.519 3 4 (G0 G0 G2) (G0 G0 G4) (G0 G0 G5)
48.265 56.240 48.151 3 4 (G0 G0 G3) (G0 G0 G4) (G0 G0 G5)
47.040 50.109 47.149 3 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G6)
50.567 56.220 50.564 3 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G6)
56.907 56.313 56.986 3 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G6)
50.609 56.264 50.417 3 4 (G0 G0 G1) (G0 G0 G4) (G0 G0 G6)
56.975 56.041 56.826 3 4 (G0 G0 G2) (G0 G0 G4) (G0 G0 G6)
48.868 56.275 48.590 3 4 (G0 G0 G3) (G0 G0 G4) (G0 G0 G6)
49.474 49.799 49.414 3 4 (G0 G0 G1) (G0 G0 G5) (G0 G0 G6)
39.407 53.626 39.264 3 4 (G0 G0 G2) (G0 G0 G5) (G0 G0 G6)
52.668 51.885 52.746 3 4 (G0 G0 G3) (G0 G0 G5) (G0 G0 G6)
54.683 50.035 54.503 3 4 (G0 G0 G4) (G0 G0 G5) (G0 G0 G6)
54.751 51.185 54.714 3 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G7)
49.464 56.451 49.507 3 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G7)
50.542 56.494 50.419 3 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G7)
47.802 53.791 47.561 3 4 (G0 G0 G1) (G0 G0 G4) (G0 G0 G7)
47.249 52.755 47.091 3 4 (G0 G0 G2) (G0 G0 G4) (G0 G0 G7)
41.682 55.054 41.609 3 4 (G0 G0 G3) (G0 G0 G4) (G0 G0 G7)
53.857 50.240 53.689 3 4 (G0 G0 G1) (G0 G0 G5) (G0 G0 G7)
46.694 49.802 46.467 3 4 (G0 G0 G2) (G0 G0 G5) (G0 G0 G7)
52.817 49.695 52.708 3 4 (G0 G0 G3) (G0 G0 G5) (G0 G0 G7)
42.766 49.378 42.681 3 4 (G0 G0 G4) (G0 G0 G5) (G0 G0 G7)
47.020 50.272 46.866 3 4 (G0 G0 G1) (G0 G0 G6) (G0 G0 G7)
51.293 50.344 51.281 3 4 (G0 G0 G2) (G0 G0 G6) (G0 G0 G7)
52.745 50.363 52.573 3 4 (G0 G0 G3) (G0 G0 G6) (G0 G0 G7)
43.464 50.005 43.378 3 4 (G0 G0 G4) (G0 G0 G6) (G0 G0 G7)
52.110 53.252 52.204 3 4 (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
53.978 53.951 53.909 53.994 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G4)
52.088 48.838 52.174 48.706 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G5)
54.746 51.347 54.722 51.213 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G4) (G0 G0 G5)
53.295 54.767 53.528 54.685 4 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5)
50.468 48.308 50.462 47.927 4 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5)
50.893 46.216 50.966 46.051 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G6)
52.775 43.437 52.870 43.390 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G4) (G0 G0 G6)
51.347 47.597 51.299 47.533 4 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G4) (G0 G0 G6)
54.851 54.193 54.852 54.315 4 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G6)
52.597 53.273 52.389 53.026 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G5) (G0 G0 G6)
49.185 51.880 49.343 51.712 4 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G5) (G0 G0 G6)
50.603 56.058 50.795 55.960 4 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G5) (G0 G0 G6)
49.493 53.818 49.462 53.614 4 4 (G0 G0 G1) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6)
50.473 52.841 50.388 52.713 4 4 (G0 G0 G2) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6)
55.233 53.448 54.880 53.259 4 4 (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6)
53.965 53.219 54.128 53.233 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G7)
48.949 50.712 48.946 50.613 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G4) (G0 G0 G7)
52.486 47.821 52.730 47.730 4 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G4) (G0 G0 G7)
51.232 49.069 51.309 48.869 4 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G7)
49.876 51.404 49.772 51.046 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G5) (G0 G0 G7)
57.132 57.070 56.963 56.772 4 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G5) (G0 G0 G7)
49.970 57.176 49.987 56.920 4 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G5) (G0 G0 G7)
57.333 49.658 57.264 49.806 4 4 (G0 G0 G1) (G0 G0 G4) (G0 G0 G5) (G0 G0 G7)
50.165 49.903 50.134 49.860 4 4 (G0 G0 G2) (G0 G0 G4) (G0 G0 G5) (G0 G0 G7)
52.488 51.273 52.639 51.069 4 4 (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G7)
51.169 54.829 51.031 54.709 4 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G6) (G0 G0 G7)
50.695 57.240 50.471 56.931 4 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G6) (G0 G0 G7)
56.892 57.171 56.747 57.028 4 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G6) (G0 G0 G7)
50.567 49.730 50.262 49.642 4 4 (G0 G0 G1) (G0 G0 G4) (G0 G0 G6) (G0 G0 G7)
56.972 49.999 56.850 49.764 4 4 (G0 G0 G2) (G0 G0 G4) (G0 G0 G6) (G0 G0 G7)
55.711 51.511 55.656 51.235 4 4 (G0 G0 G3) (G0 G0 G4) (G0 G0 G6) (G0 G0 G7)
51.660 54.717 51.631 54.697 4 4 (G0 G0 G1) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
48.339 50.612 48.182 50.660 4 4 (G0 G0 G2) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
54.962 54.106 54.762 53.969 4 4 (G0 G0 G3) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
49.339 51.046 49.435 50.976 4 4 (G0 G0 G4) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
44.784 52.269 44.716 52.113 44.546 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5)
51.310 52.573 51.138 52.632 51.216 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G6)
53.244 47.458 53.128 47.570 53.279 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G5) (G0 G0 G6)
53.537 49.462 53.431 49.427 53.541 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6)
47.703 56.413 47.796 56.427 47.780 5 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6)
47.025 53.682 46.996 53.527 47.114 5 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6)
44.808 52.363 44.935 52.466 44.864 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G7)
53.774 44.200 53.745 44.146 53.889 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G5) (G0 G0 G7)
50.409 42.969 50.554 42.820 50.407 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G4) (G0 G0 G5) (G0 G0 G7)
46.721 55.426 46.727 55.217 46.646 5 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G7)
49.917 52.813 50.019 52.586 49.718 5 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G7)
49.463 50.373 49.695 50.244 49.436 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G6) (G0 G0 G7)
49.394 50.794 49.331 50.565 49.373 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G4) (G0 G0 G6) (G0 G0 G7)
47.873 51.213 47.900 51.305 47.921 5 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G4) (G0 G0 G6) (G0 G0 G7)
47.109 51.965 47.182 51.776 47.153 5 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G6) (G0 G0 G7)
50.039 54.672 50.159 54.760 50.229 5 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
46.918 52.488 47.028 52.327 47.033 5 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
49.807 52.877 50.009 52.756 49.904 5 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
48.313 54.666 48.258 54.596 48.103 5 4 (G0 G0 G1) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
47.352 52.476 47.680 52.375 47.412 5 4 (G0 G0 G2) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
45.647 51.850 45.700 51.787 45.618 5 4 (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
53.797 53.041 53.715 53.185 53.728 53.055 6 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6)
50.819 49.056 50.912 49.257 50.800 49.082 6 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G7)
53.691 53.287 53.672 53.443 53.601 53.312 6 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G6) (G0 G0 G7)
51.184 51.978 51.156 51.922 51.261 51.993 6 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
52.548 50.879 52.511 51.038 52.776 50.962 6 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
52.010 52.226 51.881 52.229 51.977 52.150 6 4 (G0 G0 G1) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
49.444 48.838 49.543 48.895 49.396 48.811 6 4 (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
48.520 53.242 48.504 53.057 48.517 53.075 48.642 7 4 (G0 G0 G1) (G0 G0 G2) (G0 G0 G3) (G0 G0 G4) (G0 G0 G5) (G0 G0 G6) (G0 G0 G7)
Peer-to-peer preset (p2p)#
The p2p preset measures device memory bandwidth between all pairs of CPU NUMA nodes and GPUs. It tests unidirectional and bidirectional transfers for CPU-to-CPU, CPU-to-GPU, and GPU-to-GPU combinations.
Key features:
Tests all SRC-to-DST pairs across CPUs and GPUs.
Supports both unidirectional and bidirectional transfers (
P2P_MODE).Uses GFX or DMA as GPU Executor (
USE_GPU_DMA).Supports remote read (DST GPU as Executor) instead of source-side execution.
Prints bandwidth matrix with row and column labels. Optionally shows min/max/stddev per iteration.
Note
The Executor used is either the same device as SRC, or DST if USE_REMOTE_READ=1. For example, a transfer from CPU 01 to GPU 2 uses CPU threads to copy to GPU 2, which is equivalent to C0→C0→G2.
Restrictions:
Single-node only.
``USE_FINE_GRAIN`` is deprecated: Returns error if
USE_FINE_GRAINis set. UseCPU_MEM_TYPEandGPU_MEM_TYPEinstead.NVIDIA platforms: CPU executors can’t access GPU memory; those pairs are skipped.
Self-transfers skipped: CPU i-to-i and GPU i-to-i are skipped in bidirectional mode.
Usage:
./TransferBench p2p
For exclusively unidirectional transfer with DMA:
P2P_MODE=1 USE_GPU_DMA=1 ./TransferBench p2p
Environment variables#
To modify the behavior of p2p preset, use the following environment variables:
Environment variable |
Description |
Default value |
|---|---|---|
|
CPU memory: 0=default, 1=coherent, 2=non-coherent, 3=uncached, 4=unpinned. See What memory types do presets support?. |
|
|
GPU memory: 0=default, 1=fine-grained, 2=uncached, 3=managed. See What memory types do presets support?. |
|
|
Number of CPU NUMA nodes. To avoid using any pairs involving CPUs, set it to |
(all detected) |
|
CPU threads per CPU-executed transfer. |
|
|
Number of GPUs. This can be modified to reduce the number of GPUs to test. |
(all detected) |
|
GPU CUs per transfer. Default value varies according to |
(device max / GFX default) |
|
To show detailed min/max/stddev per iteration, set to |
|
|
1=Unidirectional only, 2=Bidirectional only, 0=both. |
|
|
To use DMA for GPU Executor, set to |
|
|
To place the Executor on DST, set to |
|
Example output#
[P2P Related]
CPU_MEM_TYPE = 0 : Using default CPU (0=default, 1=coherent, 2=non-coherent, 3=uncached, 4=unpinned)
GPU_MEM_TYPE = 0 : Using default GPU (0=default, 1=fine-grained, 2=uncached, 3=managed)
NUM_CPU_DEVICES = 2 : Using 2 CPUs
NUM_CPU_SE = 4 : Using 4 CPU threads per Transfer
NUM_GPU_DEVICES = 8 : Using 8 GPUs
NUM_GPU_SE = 304 : Using 304 GPU subexecutors/CUs per Transfer
P2P_MODE = 0 : Running Uni + Bi transfers
USE_GPU_DMA = 0 : Using GPU-GFX as GPU executor
USE_REMOTE_READ = 0 : Using SRC as executor
Bytes Per Direction 268435456
Unidirectional copy peak bandwidth GB/s [Local read / Remote write] (GPU-Executor: GFX)
SRC+EXE\DST CPU 00 CPU 01 GPU 00 GPU 01 GPU 02 GPU 03 GPU 04 GPU 05 GPU 06 GPU 07
CPU 00 -> 37.62 38.04 39.44 34.00 33.12 35.53 31.90 29.73 28.11 31.00
CPU 01 -> 37.84 37.69 29.92 29.85 31.19 29.63 38.99 38.41 38.32 39.56
GPU 00 -> 55.36 55.25 1618.87 48.83 48.89 49.00 48.05 47.94 48.27 47.85
GPU 01 -> 55.36 54.14 48.89 1860.47 48.95 48.95 47.91 48.04 48.49 48.32
GPU 02 -> 55.35 55.26 48.83 49.01 1868.43 49.07 48.70 48.34 48.85 48.97
GPU 03 -> 55.34 55.26 49.01 49.02 49.07 1877.42 48.51 48.17 48.85 49.04
GPU 04 -> 55.30 55.38 47.95 48.26 48.85 48.61 1849.65 48.99 48.85 48.84
GPU 05 -> 55.29 55.35 47.95 48.02 48.51 48.03 49.01 1853.87 49.15 49.01
GPU 06 -> 55.32 55.34 48.31 48.62 48.88 48.94 48.99 48.83 1829.05 49.17
GPU 07 -> 55.30 55.34 48.23 48.27 48.59 48.90 48.60 49.09 49.14 1841.42
CPU->CPU CPU->GPU GPU->CPU GPU->GPU
Averages (During UniDir): 37.94 33.67 55.25 48.65
Bidirectional copy peak bandwidth GB/s [Local read / Remote write] (GPU-Executor: GFX)
SRC\DST CPU 00 CPU 01 GPU 00 GPU 01 GPU 02 GPU 03 GPU 04 GPU 05 GPU 06 GPU 07
CPU 00 -> N/A 33.59 33.54 36.84 33.35 35.02 29.55 31.33 31.30 28.09
CPU 00 <- N/A 39.94 54.81 54.73 54.51 54.48 29.25 28.84 28.13 30.44
CPU 00 <-> N/A 73.52 88.35 91.57 87.86 89.51 58.80 60.17 59.43 58.53
CPU 01 -> 36.21 N/A 31.09 28.54 31.93 31.76 38.02 38.74 37.19 36.09
CPU 01 <- 33.60 N/A 28.85 28.27 27.93 28.54 54.85 54.80 54.68 54.70
CPU 01 <-> 69.81 N/A 59.94 56.81 59.86 60.30 92.87 93.54 91.86 90.78
GPU 00 -> 54.77 29.18 N/A 46.15 46.10 46.55 46.16 46.05 46.31 45.95
GPU 00 <- 34.70 30.98 N/A 46.21 46.40 46.65 46.12 46.00 46.25 45.98
GPU 00 <-> 89.47 60.15 N/A 92.36 92.50 93.20 92.27 92.05 92.56 91.93
GPU 01 -> 54.77 29.18 46.19 N/A 46.08 46.54 46.17 46.05 46.33 46.14
GPU 01 <- 32.11 30.59 46.11 N/A 46.64 46.42 46.16 46.09 46.51 46.20
GPU 01 <-> 86.89 59.77 92.30 N/A 92.73 92.97 92.32 92.14 92.84 92.33
GPU 02 -> 54.76 29.56 46.40 46.63 N/A 46.62 46.49 46.16 46.41 46.09
GPU 02 <- 32.05 27.70 46.07 46.05 N/A 46.24 46.18 46.26 46.12 46.27
GPU 02 <-> 86.81 57.25 92.47 92.68 N/A 92.86 92.67 92.42 92.53 92.37
GPU 03 -> 54.73 30.33 46.62 46.44 46.23 N/A 46.15 46.34 46.25 46.47
GPU 03 <- 33.13 29.77 46.50 46.52 46.61 N/A 46.17 46.22 46.23 46.46
GPU 03 <-> 87.86 60.10 93.13 92.96 92.84 N/A 92.32 92.56 92.48 92.93
GPU 04 -> 29.91 54.85 46.18 46.20 46.21 46.17 N/A 46.56 46.23 46.50
GPU 04 <- 30.60 34.45 46.27 46.37 46.58 46.17 N/A 46.49 46.25 46.44
GPU 04 <-> 60.52 89.30 92.45 92.57 92.78 92.34 N/A 93.05 92.49 92.93
GPU 05 -> 30.58 54.76 45.99 46.04 46.24 46.32 46.51 N/A 46.38 46.15
GPU 05 <- 26.98 35.95 46.00 46.01 46.18 46.38 46.56 N/A 46.26 46.20
GPU 05 <-> 57.55 90.70 91.99 92.05 92.43 92.69 93.07 N/A 92.63 92.36
GPU 06 -> 30.22 54.65 46.34 46.40 46.13 46.24 46.26 46.33 N/A 46.43
GPU 06 <- 27.72 35.78 46.37 46.35 46.35 46.28 46.25 46.37 N/A 46.30
GPU 06 <-> 57.94 90.44 92.72 92.75 92.48 92.52 92.51 92.70 N/A 92.73
GPU 07 -> 30.55 54.66 46.03 46.15 46.35 46.38 46.39 46.17 46.35 N/A
GPU 07 <- 27.28 36.17 46.05 46.11 46.12 46.45 46.48 46.15 46.41 N/A
GPU 07 <-> 57.83 90.83 92.08 92.26 92.47 92.83 92.87 92.32 92.76 N/A
CPU->CPU CPU->GPU GPU->CPU GPU->GPU
Averages (During BiDir): 35.83 37.51 36.98 46.28
[P2P Related]
CPU_MEM_TYPE = 0 : Using default CPU (0=default, 1=coherent, 2=non-coherent, 3=uncached, 4=unpinned)
GPU_MEM_TYPE = 0 : Using default GPU (0=default, 1=fine-grained, 2=uncached, 3=managed)
NUM_CPU_DEVICES = 2 : Using 2 CPUs
NUM_CPU_SE = 4 : Using 4 CPU threads per Transfer
NUM_GPU_DEVICES = 8 : Using 8 GPUs
NUM_GPU_SE = 256 : Using 256 GPU subexecutors/CUs per Transfer
P2P_MODE = 0 : Running Uni + Bi transfers
USE_GPU_DMA = 0 : Using GPU-GFX as GPU executor
USE_REMOTE_READ = 0 : Using SRC as executor
Bytes Per Direction 268435456
Unidirectional copy peak bandwidth GB/s [Local read / Remote write] (GPU-Executor: GFX)
SRC+EXE\DST CPU 00 CPU 01 GPU 00 GPU 01 GPU 02 GPU 03 GPU 04 GPU 05 GPU 06 GPU 07
CPU 00 -> 83.89 93.99 42.90 42.89 42.94 42.93 42.90 42.88 41.76 42.81
CPU 01 -> 91.09 83.25 42.77 42.84 42.27 42.88 42.79 42.91 42.83 42.79
GPU 00 -> 53.18 53.14 2285.12 57.51 57.46 57.38 57.33 57.32 57.28 57.64
GPU 01 -> 53.11 53.16 57.53 2280.83 57.36 57.30 57.32 57.33 57.48 57.44
GPU 02 -> 53.11 53.13 57.45 57.29 2286.68 57.36 57.58 57.53 57.38 57.35
GPU 03 -> 53.19 53.11 57.31 57.26 57.52 2281.59 57.52 57.47 57.33 57.38
GPU 04 -> 53.11 53.12 57.33 57.27 57.57 57.53 2292.99 57.51 57.36 57.36
GPU 05 -> 53.13 53.13 57.34 57.32 57.55 57.48 57.28 2276.23 57.42 57.50
GPU 06 -> 53.18 53.19 57.28 57.47 57.39 57.35 57.54 57.40 2305.57 57.49
GPU 07 -> 53.16 53.15 57.44 57.47 57.35 57.36 57.32 57.35 57.51 2289.74
CPU->CPU CPU->GPU GPU->CPU GPU->GPU
Averages (During UniDir): 92.54 42.76 53.14 57.41
Bidirectional copy peak bandwidth GB/s [Local read / Remote write] (GPU-Executor: GFX)
SRC\DST CPU 00 CPU 01 GPU 00 GPU 01 GPU 02 GPU 03 GPU 04 GPU 05 GPU 06 GPU 07
CPU 00 -> N/A 79.71 42.40 42.40 42.39 42.51 42.05 41.14 42.22 42.45
CPU 00 <- N/A 80.90 52.72 52.61 52.74 52.69 52.69 52.68 52.61 52.64
CPU 00 <-> N/A 160.62 95.11 95.01 95.13 95.20 94.75 93.82 94.83 95.09
CPU 01 -> 80.77 N/A 42.27 42.39 42.50 42.49 42.50 42.47 42.43 42.46
CPU 01 <- 79.50 N/A 52.68 52.60 52.69 52.66 52.68 52.65 52.68 52.68
CPU 01 <-> 160.27 N/A 94.95 94.99 95.19 95.15 95.17 95.11 95.11 95.14
GPU 00 -> 52.72 52.61 N/A 54.77 54.78 54.61 54.66 54.58 54.51 54.85
GPU 00 <- 42.48 42.34 N/A 54.77 54.72 54.52 54.58 54.53 54.57 54.72
GPU 00 <-> 95.20 94.95 N/A 109.54 109.51 109.13 109.23 109.11 109.08 109.57
GPU 01 -> 52.68 52.69 54.75 N/A 54.66 54.51 54.54 54.57 54.74 54.70
GPU 01 <- 42.43 42.40 54.84 N/A 54.46 54.55 54.45 54.61 54.82 54.79
GPU 01 <-> 95.11 95.09 109.59 N/A 109.12 109.06 108.99 109.18 109.56 109.50
GPU 02 -> 52.72 52.59 54.80 54.52 N/A 54.62 54.87 54.86 54.64 54.53
GPU 02 <- 42.48 42.36 54.80 54.62 N/A 54.71 54.79 54.75 54.59 54.56
GPU 02 <-> 95.20 94.94 109.60 109.15 N/A 109.33 109.66 109.61 109.23 109.09
GPU 03 -> 52.61 52.59 54.43 54.52 54.64 N/A 54.80 54.82 54.61 54.59
GPU 03 <- 42.49 42.38 54.63 54.53 54.63 N/A 54.79 54.73 54.47 54.49
GPU 03 <-> 95.09 94.97 109.06 109.05 109.28 N/A 109.59 109.56 109.08 109.08
GPU 04 -> 52.69 52.59 54.56 54.50 54.74 54.76 N/A 54.75 54.57 54.64
GPU 04 <- 41.98 42.47 54.66 54.53 54.82 54.81 N/A 54.56 54.74 54.53
GPU 04 <-> 94.67 95.06 109.22 109.03 109.56 109.57 N/A 109.31 109.31 109.17
GPU 05 -> 52.71 52.58 54.54 54.56 54.78 54.71 54.55 N/A 54.59 54.73
GPU 05 <- 42.33 42.36 54.59 54.58 54.85 54.83 54.74 N/A 54.50 54.68
GPU 05 <-> 95.04 94.94 109.13 109.14 109.64 109.55 109.29 N/A 109.09 109.41
GPU 06 -> 52.64 52.70 54.56 54.82 54.63 54.53 54.61 54.59 N/A 54.82
GPU 06 <- 42.37 42.52 54.53 54.83 54.66 54.56 54.60 54.59 N/A 54.75
GPU 06 <-> 95.02 95.22 109.10 109.65 109.28 109.09 109.21 109.18 N/A 109.57
GPU 07 -> 52.70 52.66 54.70 54.84 54.58 54.53 54.50 54.68 54.83 N/A
GPU 07 <- 42.16 42.45 54.88 54.72 54.55 54.63 54.61 54.73 54.73 N/A
GPU 07 <-> 94.85 95.11 109.58 109.56 109.12 109.16 109.11 109.41 109.56 N/A
CPU->CPU CPU->GPU GPU->CPU GPU->GPU
Averages (During BiDir): 80.22 47.49 47.51 54.66
Pod all-to-all preset (poda2a)#
The poda2a preset is the pod-aware sibling of All-to-all preset (a2a). It creates groups within a virtual pod, then conducts all-to-all among devices within a group through the UALoE path. It expands the all-to-all matrix beyond a single node so GFX and DMA Executors can reach SRC and DST memory on remote-rank GPUs that share the pod. It supports GFX or DMA as the Executor and an optional concurrent NIC ring, and is available since v1.67.
Key features:
GFX or DMA mode and transfer modes: Behaves the same as the All-to-all preset (a2a) preset.
USE_SINGLE_STREAM=1is always set so all transfers from a source GPU are coalesced into a single kernel launch.GFX_UNROLLdefaults to2unless the user exports an explicit value, for parity with a2a.Grouping: With
NUM_GROUPS> 1, the pod devices are permuted byGROUP_STRIDEand partitioned intoNUM_GROUPSequally-sized groups.Execution: Each group runs its own all-to-all and all groups execute concurrently inside a single
RunTransferscall. This measures how partitioned traffic patterns share fabric bandwidth.NIC rings: When
NUM_QUEUE_PAIRS> 0, each source GPU gets a supplementary NIC ring (GPUi→ GPU(i+1)%groupSizevia nearest-NIC RDMA). These transfers add load but are intentionally excluded from the reported bandwidth matrix.Results: Prints one SRC×DST bandwidth matrix per group, with per-rank and per-GPU rows and columns, row and column totals (
STotal,RTotal), and anActualcolumn derived fromrowCount x min(row), similar to regular a2a output.
Restrictions:
Single-pod only: Multi-pod topologies are rejected with
[ERROR] PodAllToAll preset currently requires all ranks to be in a single pod. Multi-pod support isn’t yet implemented.Pod detection required: If amd-smi doesn’t return a non-empty pod map, the preset exits with
[ERROR] No pods detected. UseTB_FORCE_SINGLE_POD=1to override.DMA Executor is copy-only:
USE_DMA_EXEC=1combined with any non-copyA2A_MODE(including customN:M) fails immediately.Equal GPU count per rank: All participating ranks must report the same
NUM_GPU_DEVICES; a mismatch is a fatal error.``NUM_GROUPS`` divisibility:
NUM_GROUPSmust evenly dividenumRanks x NUM_GPU_DEVICES, otherwise the preset exits with[ERROR] NUM_GROUPS (X) must divide pod device count.NIC config mismatch is a warning: Differing NIC counts across ranks produce
[WARN] Not all ranks have the same number of NICsbut don’t abort the run.Duplicate-hostname warning: A trailing
[WARN]is emitted if two ranks share a hostname — running more than one rank per host can alias Executors and skew results.
Usage:
./TransferBench poda2a [numBytes]
Multi-rank (sockets):
./LaunchTransferBench.sh hostA,hostB -- poda2a 1G
Multi-rank (MPI):
mpirun -np <N> ./TransferBench poda2a 1G
Note
When pod detection via amd-smi is unavailable, prefix with TB_FORCE_SINGLE_POD=1 to treat all participating ranks as one pod.
Environment variables#
To modify the behavior of the poda2a preset, use the following environment variables:
Environment variable |
Description |
Default value |
|---|---|---|
|
To include local transfers (i→i), set to |
|
|
Transfer mode: 0=Copy, 1=Read-Only, 2=Write-Only, or |
|
|
GFX kernel unroll factor. Overrides global default. Forced to |
|
|
Stride used to permute the per-pod device list before splitting into groups. Larger strides break up rank-local clustering so each group spans more ranks. |
|
|
GPU memory type: 0=default, 1=fine-grained, 2=uncached, 3=managed. See What memory types do presets support?. |
|
|
Number of GPUs per rank to include. Must not exceed the detected GPU count on every rank. |
(detected) |
|
Number of independent all-to-all groups per pod. Must evenly divide |
|
|
Queue pairs per NIC ring transfer. 0=no NIC traffic. NIC results are excluded from the bandwidth matrix; to see them, set |
|
|
SubExecutors (CUs for GFX, batch items for DMA) per transfer. |
|
|
To show the full per-transfer result table in addition to the summarized matrix, set to |
|
|
To use DMA Executor instead of GFX, set to |
|
|
To use DST GPU as Executor (remote read) instead of SRC GPU (local read), set to |
|
Example output#
[AllToAll Related]
A2A_LOCAL = 0 : Exclude local transfers
A2A_MODE = 0 : Copy
MEM_TYPE = 0 : Using default GPU memory (0=default, 1=fine-grained, 2=uncached, 3=managed)
NUM_GPU_DEVICES = 4 : Using 4 GPUs
NUM_QUEUE_PAIRS = 0 : Using 0 queue pairs for NIC transfers
NUM_SUB_EXEC = 8 : Using 8 subExecutors/CUs per Transfer
USE_DMA_EXEC = 0 : Using GFX executor
USE_REMOTE_READ = 0 : Using SRC as executor
GROUP_STRIDE = 2 : Stride permutation on device list before splitting into groups
NUM_GROUPS = 2 : Splitting each pod into 2 group(s) for a2a
GPU-GFX IntraPod All-To-All benchmark:
==============================
[268435456 bytes per Transfer] [GFX:8] [1 Read(s) 1 Write(s)] [MemType:default GPU] [NIC QueuePairs:0] [#Ranks:2]
A2A group 0: R0:G0, R0:G2, R1:G0, R1:G2
A2A group 1: R0:G1, R0:G3, R1:G1, R1:G3
--- Pod AllToAll Group 0 ---
┌-------------┬------------┬-----------------┬-----------------┬---------┬---------┐
│ SRC+EXE\DST │ │ Rank 00 │ Rank 01 │ STotal │ Actual │
├-------------┼------------┼-----------------┼-----------------┼---------┼---------┤
│ │ Mem Device │ GPU 00 GPU 02 │ GPU 00 GPU 02 │ │ │
├-------------┼------------┼-----------------┼-----------------┼---------┼---------┤
│ Rank 00 │ GPU 00 │ N/A 106.23 │ 106.38 106.78 │ 319.39 │ 318.69 │
│ │ GPU 02 │ 106.51 N/A │ 106.46 107.10 │ 320.07 │ 319.38 │
├-------------┼------------┼-----------------┼-----------------┼---------┼---------┤
│ Rank 01 │ GPU 00 │ 105.84 106.56 │ N/A 106.39 │ 318.79 │ 317.52 │
│ │ GPU 02 │ 105.77 105.30 │ 106.07 N/A │ 317.13 │ 315.89 │
├-------------┼------------┼-----------------┼-----------------┼---------┼---------┤
│ │ RTotal │ 318.12 318.09 │ 318.90 320.27 │ 1275.38 │ 1271.49 │
└-------------┴------------┴-----------------┴-----------------┴---------┴---------┘
--- Pod AllToAll Group 1 ---
┌-------------┬------------┬-----------------┬-----------------┬---------┬---------┐
│ SRC+EXE\DST │ │ Rank 00 │ Rank 01 │ STotal │ Actual │
├-------------┼------------┼-----------------┼-----------------┼---------┼---------┤
│ │ Mem Device │ GPU 01 GPU 03 │ GPU 01 GPU 03 │ │ │
├-------------┼------------┼-----------------┼-----------------┼---------┼---------┤
│ Rank 00 │ GPU 01 │ N/A 105.90 │ 105.73 106.09 │ 317.73 │ 317.20 │
│ │ GPU 03 │ 107.34 N/A │ 108.22 108.86 │ 324.42 │ 322.02 │
├-------------┼------------┼-----------------┼-----------------┼---------┼---------┤
│ Rank 01 │ GPU 01 │ 105.97 106.28 │ N/A 106.44 │ 318.69 │ 317.90 │
│ │ GPU 03 │ 106.02 106.06 │ 106.51 N/A │ 318.60 │ 318.07 │
├-------------┼------------┼-----------------┼-----------------┼---------┼---------┤
│ │ RTotal │ 319.33 318.24 │ 320.47 321.39 │ 1279.43 │ 1275.20 │
└-------------┴------------┴-----------------┴-----------------┴---------┴---------┘
Pod peer-to-peer preset (podp2p)#
The podp2p preset measures pair-wise peer-to-peer bandwidth between every pair of GPUs that belong to the same pod, including cross-rank pairs reachable over XGMI fabric. Each pair can be measured unidirectionally (one direction at a time), bidirectionally (both directions concurrently), or both. Two parallelism modes are supported: serialized pair-at-a-time (the default, which yields the cleanest peak numbers) or node-pair-parallel (faster wall time, more realistic interference). The podp2p preset is the pod-aware sibling of Peer-to-peer preset (p2p) — instead of restricting the matrix to one node, it expands to all ranks in a single pod.
Key features:
Pair enumeration: For each ordered pair (
srcGPU,dstGPU) across all pod-wide devices, runs a transfer fromsrcGPUtodstGPU. Self-pairs are included in the unidirectional matrix as a loopback measurement and excluded from the bidirectional matrix.Direction modes:
P2P_MODEselects unidirectional only (1), bidirectional only (2), or both back-to-back (0).Parallelism modes:
PARALLEL_LVL=0(default): runs exactly one transfer (or one pair of transfers for bidirectional) at a time — every other GPU pair is idle. Produces the cleanest peak-bandwidth matrix.PARALLEL_LVL=1: node-pair-parallel mode using the internalRoundRobinSchedule. Each round picks a set of disjoint rank-pairs and runs all (srcDev,dstDev) pairs for those rank-pairs concurrently. Faster but introduces cross-pair fabric contention.
GFX or DMA executor: Uses either GFX (default) or DMA (
USE_GPU_DMA=1). The Executor is placed on either the SRC GPU (default) or the DST GPU (USE_REMOTE_READ=1). Unlike Pod all-to-all preset (poda2a), DMA works for anyP2P_MODE— bidirectional DMA runs two SDMA engines back-to-back.Results: Prints one bandwidth table per direction mode. Output is either a full
N×Nmatrix (OUTPUT_FORMAT=1, default) with bidirectional showing three rows per SRC GPU (->,<-,<->), or a flat list (OUTPUT_FORMAT=0) with one row per (SRC, DST, direction).Pair iteration order: Pairs are iterated in (
srcRank,srcDev,dstRank,dstDev) order. WithPARALLEL_LVL=1, the outer iteration is replaced by a round-robin tournament over rank-pairs so that no rank participates in more than one pair per round.``NUM_GPU_SE`` default differs by executor: For GFX, defaults to the full CU count of GPU 0 (giving each pair a fully owned GPU). For DMA, defaults to
1since SDMA engines aren’t subdivided by SubExecutor.
Restrictions:
Homogeneous ranks required: All ranks must have the same physical and virtual pod membership; otherwise the preset exits with
[ERROR] Pod p2p preset can only be run across ranks that are homogenous.Pod detection required: If amd-smi returns an empty pod map, the preset exits with
[ERROR] No pods detected. Override withTB_FORCE_SINGLE_POD=1.
Note
This preset uses different environment variable names than Pod all-to-all preset (poda2a) for memory type and SubExecutors: GPU_MEM_TYPE, NUM_GPU_SE, and USE_GPU_DMA rather than MEM_TYPE, NUM_SUB_EXEC, and USE_DMA_EXEC.
Note
When pod detection via amd-smi is unavailable, prefix with TB_FORCE_SINGLE_POD=1 to treat all participating ranks as one pod.
Usage:
./TransferBench podp2p [numBytes]
Multi-rank (sockets):
./LaunchTransferBench.sh hostA,hostB -- podp2p 1G
Multi-rank (MPI):
mpirun -np <N> ./TransferBench podp2p 1G
Environment variables#
To modify the behavior of the podp2p preset, use the following environment variables:
Environment variable |
Description |
Default value |
|---|---|---|
|
GPU memory type: 0=default, 1=fine-grained, 2=uncached, 3=managed. See What memory types do presets support?. |
|
|
Number of GPUs per rank to include. |
(detected) |
|
SubExecutors per transfer. For GFX, defaults to the full CU count so each pair has the GPU all to itself. For DMA, defaults to |
(hardware CU count or |
|
To output a full |
|
|
Direction mode: 0=unidirectional and bidirectional (both, back-to-back), 1=unidirectional only, 2=bidirectional only. |
|
|
Parallelism level: 0=one pair at a time, 1=node-pairs concurrent. Level 1 reduces wall time but per-cell numbers may dip from cross-pair contention. |
|
|
To use DMA Executor instead of GFX, set to |
|
|
To use DST GPU as Executor (remote read) instead of SRC GPU (local read), set to |
|
Example output#
[P2P Related]
GPU_MEM_TYPE = 0 : Using default GPU (0=default, 1=fine-grained, 2=uncached, 3=managed)
NUM_GPU_DEVICES = 4 : Using 4 GPUs per rank
NUM_GPU_SE = 152 : Using 152 GPU subExecutors/CUs per Transfer
P2P_MODE = 0 : Running Uni + Bi transfers
PARALLEL_LVL = 0 : Executing p2p in parallel level 0 (0: no parallel, 1: node pairs in parallel)
USE_GPU_DMA = 0 : Using GPU-GFX as GPU executor
USE_REMOTE_READ = 0 : Using SRC as executor
Bytes Per Direction 268435456
Unidirectional copy peak bandwidth GB/s [Local read / Remote write] (GPU-Executor: GFX)
┌-------------┬------------┬---------------------------------------┬---------------------------------------┐
│ SRC+EXE\DST │ │ Rank 00 │ Rank 01 │
├-------------┼------------┼---------------------------------------┼---------------------------------------┤
│ │ Mem Device │ GPU 00 GPU 01 GPU 02 GPU 03 │ GPU 00 GPU 01 GPU 02 GPU 03 │
├-------------┼------------┼---------------------------------------┼---------------------------------------┤
│ Rank 00 │ GPU 00 │ 1683.68 631.82 621.12 615.64 │ 621.32 623.75 617.52 616.44 │
│ │ GPU 01 │ 606.28 1563.20 613.56 615.22 │ 613.53 613.71 613.49 615.39 │
│ │ GPU 02 │ 608.66 618.81 1611.71 626.64 │ 621.54 622.20 625.34 617.71 │
│ │ GPU 03 │ 614.25 621.75 624.77 1652.70 │ 628.94 601.20 624.25 623.78 │
├-------------┼------------┼---------------------------------------┼---------------------------------------┤
│ Rank 01 │ GPU 00 │ 615.06 622.32 621.86 620.58 │ 1639.94 620.94 613.57 617.17 │
│ │ GPU 01 │ 614.84 618.22 620.67 621.07 │ 622.79 1589.99 613.92 613.48 │
│ │ GPU 02 │ 617.73 618.69 618.10 618.10 │ 619.35 614.28 1590.92 619.23 │
│ │ GPU 03 │ 618.77 622.42 625.30 624.11 │ 622.33 626.28 625.73 1621.71 │
└-------------┴------------┴---------------------------------------┴---------------------------------------┘
The output table shows:
Rows: SRC GPU, grouped by rank. In the bidirectional table each SRC GPU spans three rows:->(forward bandwidth),<-(reverse bandwidth), and<->(their sum). The unidirectional table has one row per SRC.Columns: DST GPU, grouped by rank.Diagonal cells (N/A): Self-pairs aren’t measured in the bidirectional table; the unidirectional table includes them.Header label:SRC+EXE\DSTwhen the Executor is on the SRC (default),SRC\DST+EXEwhenUSE_REMOTE_READ=1.Bytes Per Direction: For bidirectional measurements, both directions transfer this many bytes concurrently; aggregate bandwidth can therefore exceed link peak by approximately two times if the link is full-duplex.OUTPUT_FORMAT=0(flat): The same data is rendered as one row per (SRC, DST, direction), with columnsSRC Rank | SRC MEM | (Dir) | DST Rank | DST MEM | bw (GB/s).
Scaling preset (scaling)#
The scaling preset runs a scaling test from one GPU to all other devices (CPUs and GPUs). It varies the number of SubExecutors (CUs) from SWEEP_MIN to SWEEP_MAX and reports bandwidth for each target device. It helps find optimal CU count per transfer.
Key features:
Uses one GPU (
LOCAL_IDX) as source.Runs one transfer per target at a time (one SRC to one DST per cell).
Copies to each CPU NUMA node and every other GPU.
For each CU count (
SWEEP_MINtoSWEEP_MAX), runs one transfer per target and reports bandwidth.Prints a table: rows = CU count, columns = target device.
Adds a
Bestrow to the output showing peak bandwidth and optimal CU count per target.
Restrictions:
Single-node only.
``USE_FINE_GRAIN`` is deprecated: Returns error if set. Use
CPU_MEM_TYPEandGPU_MEM_TYPEinstead.
Usage:
./TransferBench scaling
To run using GPU 2 as SRC with CU range between 4 and 64:
LOCAL_IDX=2 SWEEP_MIN=4 SWEEP_MAX=64 ./TransferBench scaling
Environment variables#
To modify the behavior of scaling preset, use the following environment variables:
Environment variable |
Description |
Default value |
|---|---|---|
|
CPU memory type: 0=default, 1=coherent, 2=non-coherent, 3=uncached, 4=unpinned. See What memory types do presets support?. |
|
|
GPU memory type: 0=default, 1=fine-grained, 2=uncached, 3=managed. See What memory types do presets support?. |
|
|
Index of the GPU performing copy to other GPUs. |
|
|
Number of CPU NUMA nodes. |
(all detected) |
|
Number of GPUs. |
(all detected) |
|
Minimum SubExecutors (CUs). |
|
|
Maximum SubExecutors. |
|
Example output#
[Scaling Related]
CPU_MEM_TYPE = 0 : Using default CPU (0=default, 1=coherent, 2=non-coherent, 3=uncached, 4=unpinned)
GPU_MEM_TYPE = 0 : Using default GPU (0=default, 1=fine-grained, 2=uncached, 3=managed)
LOCAL_IDX = 0 : Local GPU index
NUM_CPU_DEVICES = 2 : Using 2 CPUs
NUM_GPU_DEVICES = 8 : Using 8 GPUs
SWEEP_MAX = 32 : Max number of subExecutors to use
SWEEP_MIN = 1 : Min number of subExecutors to use
GPU-GFX Scaling benchmark:
==========================
- Copying 268435456 bytes from GPU 0 to other devices
- All numbers reported as GB/sec
NumCUs CPU00 CPU01 GPU00 GPU01 GPU02 GPU03 GPU04 GPU05 GPU06 GPU07
1 20.22 20.41 18.68 25.91 26.08 26.06 25.95 26.04 26.01 26.02
2 37.37 37.03 36.88 48.65 48.33 49.24 47.91 47.72 48.48 47.13
3 52.96 51.92 55.74 48.92 48.43 49.22 47.45 47.47 48.11 47.88
4 56.38 53.18 73.05 49.41 49.19 49.34 47.84 47.79 48.46 48.05
5 54.61 52.96 91.57 45.23 44.60 49.03 47.73 44.32 48.57 44.11
6 54.61 53.78 109.70 48.98 48.82 49.13 47.84 47.46 48.38 48.19
7 56.48 54.27 127.43 49.15 49.14 49.15 48.00 47.85 48.50 48.05
8 56.60 54.71 142.35 49.14 49.37 49.31 47.86 47.98 48.39 48.13
9 56.66 54.93 161.43 49.13 49.58 49.16 47.77 47.92 48.44 48.18
10 56.83 55.31 178.08 49.17 49.33 49.07 47.79 47.99 48.33 48.23
11 56.84 55.63 195.82 49.36 49.43 49.10 47.56 47.96 48.54 48.37
12 57.12 55.83 210.39 49.50 48.97 49.43 47.97 47.73 48.63 48.27
13 56.91 55.65 226.79 49.52 48.86 49.22 47.63 47.92 48.60 48.16
14 57.10 55.83 238.49 49.26 49.42 49.13 48.08 48.18 48.44 48.18
15 57.09 55.86 258.25 49.23 49.19 49.42 47.74 47.96 48.68 48.11
16 57.11 55.98 271.55 49.62 49.25 49.54 47.84 47.75 48.39 47.93
17 57.10 55.82 287.98 49.10 49.36 49.35 47.64 47.97 48.81 48.28
18 57.10 55.81 306.06 49.33 49.14 49.34 47.81 47.99 48.47 48.05
19 56.94 55.69 319.71 49.20 49.14 49.32 48.13 47.93 48.61 48.30
20 57.14 55.88 334.89 49.35 49.25 49.22 48.19 47.97 48.62 48.24
21 57.12 55.94 346.59 49.13 49.23 49.19 48.24 47.84 48.52 48.16
22 57.13 56.01 362.42 49.34 49.39 49.09 47.95 48.00 48.53 48.20
23 57.13 56.17 375.70 49.10 49.22 49.43 47.98 48.14 48.58 48.46
24 57.14 56.23 388.97 49.25 49.24 49.52 47.72 48.06 48.67 48.31
25 57.14 56.30 403.32 49.04 49.20 49.42 48.05 48.01 48.51 47.97
26 57.14 56.17 417.88 49.57 49.59 49.57 47.89 48.04 48.79 48.34
27 57.12 56.02 426.76 49.32 49.24 49.29 48.14 48.01 48.50 48.04
28 57.13 56.05 444.58 49.31 49.37 49.12 48.00 47.96 48.44 47.99
29 57.14 56.07 453.05 49.55 49.40 49.56 48.16 47.78 48.18 48.17
30 57.14 56.12 462.74 49.11 49.27 49.33 47.97 48.20 48.63 48.26
31 57.13 56.12 478.60 49.35 48.96 49.06 47.94 48.33 48.43 48.35
32 57.15 56.35 493.17 49.23 49.55 49.33 47.77 48.28 48.56 48.22
Best 57.15( 32) 56.35( 32) 493.17( 32) 49.62( 16) 49.59( 26) 49.57( 26) 48.24( 21) 48.33( 31) 48.81( 17) 48.46( 23)
[Scaling Related]
CPU_MEM_TYPE = 0 : Using default CPU (0=default, 1=coherent, 2=non-coherent, 3=uncached, 4=unpinned)
GPU_MEM_TYPE = 0 : Using default GPU (0=default, 1=fine-grained, 2=uncached, 3=managed)
LOCAL_IDX = 0 : Local GPU index
NUM_CPU_DEVICES = 2 : Using 2 CPUs
NUM_GPU_DEVICES = 8 : Using 8 GPUs
SWEEP_MAX = 32 : Max number of subExecutors to use
SWEEP_MIN = 1 : Min number of subExecutors to use
GPU-GFX Scaling benchmark:
==========================
- Copying 268435456 bytes from GPU 0 to other devices
- All numbers reported as GB/sec
NumCUs CPU00 CPU01 GPU00 GPU01 GPU02 GPU03 GPU04 GPU05 GPU06 GPU07
1 26.51 26.30 15.81 26.48 26.57 26.44 25.68 26.39 26.58 26.04
2 51.52 50.86 31.50 52.65 52.28 52.28 52.00 52.57 52.95 52.39
3 42.83 43.01 46.13 53.32 57.39 55.81 49.08 57.41 49.65 48.31
4 50.02 49.93 61.77 57.34 57.09 49.10 49.67 57.02 56.89 49.79
5 53.58 53.58 77.07 55.85 57.78 57.22 50.69 57.72 54.80 50.27
6 53.84 53.82 91.73 58.29 58.48 56.60 54.91 58.41 57.81 54.89
7 53.56 53.63 106.60 57.98 57.24 57.18 55.86 56.97 57.79 55.87
8 53.22 52.97 121.07 58.40 58.27 57.43 58.07 58.17 58.07 58.39
9 54.22 54.22 135.97 58.37 57.88 57.54 58.10 57.72 58.21 58.26
10 54.37 54.34 148.80 58.61 58.63 57.74 58.49 58.63 58.32 58.35
11 54.62 54.58 163.28 57.83 58.55 58.26 58.17 58.53 57.94 58.38
12 54.63 54.56 177.99 58.93 58.69 58.59 58.49 58.68 58.57 58.64
13 54.66 54.69 191.79 58.55 58.51 58.59 58.24 58.50 58.42 58.33
14 54.73 54.63 205.97 58.73 58.49 58.36 58.28 58.40 58.51 58.30
15 54.73 54.64 221.70 58.65 58.55 58.41 58.44 58.61 58.56 58.43
16 54.63 54.59 233.49 59.14 59.04 58.84 58.93 59.03 58.98 59.08
17 54.75 54.76 247.85 58.78 58.56 58.43 58.55 58.61 58.62 58.48
18 54.74 54.73 262.07 58.70 58.42 58.34 58.33 58.37 58.48 58.40
19 54.77 54.73 274.98 58.57 58.42 58.38 58.37 58.55 58.40 58.33
20 54.82 54.86 287.02 58.76 58.77 58.58 58.62 58.67 58.58 58.69
21 54.79 54.76 301.35 58.62 58.48 58.38 58.40 58.45 58.47 58.38
22 54.74 54.72 313.96 58.59 58.56 58.43 58.43 58.45 58.56 58.42
23 54.79 54.78 328.28 58.55 58.53 58.41 58.38 58.48 58.41 58.34
24 54.65 54.73 343.28 58.76 59.02 58.68 58.78 58.68 59.01 58.76
25 54.72 54.78 354.62 58.57 58.50 58.38 58.42 58.39 58.50 58.41
26 54.67 54.71 367.90 58.58 58.51 58.54 58.43 58.46 58.52 58.55
27 54.74 54.73 377.03 58.52 58.41 58.26 58.31 58.45 58.39 58.36
28 54.67 54.73 393.19 58.69 58.36 58.32 58.40 58.44 58.46 58.41
29 54.72 54.71 402.84 58.50 58.31 58.26 58.33 58.36 58.48 58.35
30 54.75 54.79 418.54 58.82 58.52 58.37 58.39 58.67 58.52 58.46
31 54.79 54.75 429.11 58.65 58.33 58.33 58.55 58.35 58.41 58.41
32 54.74 54.79 445.36 59.08 59.12 58.85 58.81 59.02 59.13 59.11
Best 54.82( 20) 54.86( 20) 445.36( 32) 59.14( 16) 59.12( 32) 58.85( 32) 58.93( 16) 59.03( 16) 59.13( 32) 59.11( 32)
Schmoo preset (schmoo)#
The schmoo preset runs scaling tests for local and remote read, write, and copy operations between two GPUs. For each CU count (SWEEP_MIN to SWEEP_MAX), it measures six bandwidth values: Local Read, Local Write, Local Copy, Remote Read, Remote Write, and Remote Copy.
Key features:
Uses two GPUs:
LOCAL_IDX(local) andREMOTE_IDX(remote).Fixed topology: Always two GPUs (local and remote); no sweep over device count.
For each CU count, runs the following six tests. Each test measures bandwidth for the corresponding operation pattern:
Local Read: Local GPU reads from local memory (SRC->G->null).
Local Write: Local GPU writes to local memory (null->G->DST).
Local Copy: Local GPU copies (local->local).
Remote Read: Local GPU reads from remote memory.
Remote Write: Local GPU writes to remote memory.
Remote Copy: Local GPU copies (local->remote).
Outputs a table: rows = #CUs, columns = the 6 operation types.
Restrictions:
Single-node only.
Requires at least two GPUs.
Usage:
./TransferBench schmoo
To run using GPUs 0 and 3:
LOCAL_IDX=0 REMOTE_IDX=3 SWEEP_MIN=4 SWEEP_MAX=32 ./TransferBench schmoo
To run using fine-grained memory:
USE_FINE_GRAIN=1 ./TransferBench schmoo
Environment variables#
To modify the behavior of schmoo preset, use the following environment variables:
Environment variable |
Description |
Default value |
|---|---|---|
|
Local GPU index. |
|
|
Remote GPU index. |
|
|
Minimum CUs. |
|
|
Maximum CUs. |
|
|
To use fine-grained GPU memory, set to |
|
Example output#
[Schmoo Related]
LOCAL_IDX = 0 : Local GPU index
REMOTE_IDX = 1 : Remote GPU index
SWEEP_MAX = 32 : Max number of subExecutors to use
SWEEP_MIN = 1 : Min number of subExecutors to use
USE_FINE_GRAIN = 0 : Using coarse-grained memory
Bytes to transfer: 268435456 Local GPU: 0 Remote GPU: 1
| Local Read | Local Write | Local Copy | Remote Read | Remote Write| Remote Copy |
#CUs |G00->G00->N00|N00->G00->G00|G00->G00->G00|G01->G00->N00|N00->G00->G01|G00->G00->G01|
|------|-------------|-------------|-------------|-------------|-------------|-------------|
1 51.037 53.012 53.762 23.204 46.208 25.919
2 101.532 104.000 106.908 45.954 49.012 48.511
3 153.172 160.430 155.587 49.119 49.000 48.515
4 204.086 211.594 208.435 49.420 49.015 48.978
5 256.109 262.338 251.753 49.648 48.873 45.222
6 307.136 308.372 295.809 49.383 49.014 48.800
7 360.041 346.673 352.816 49.619 49.209 49.178
8 413.266 399.531 393.937 49.843 49.426 49.412
9 466.896 438.429 439.352 49.183 48.870 48.865
10 476.217 478.565 491.344 49.725 49.400 49.336
11 574.845 543.872 522.368 49.573 49.330 49.301
12 630.188 574.289 554.644 49.407 49.183 49.139
13 685.999 625.135 607.760 49.489 49.103 49.079
14 737.719 628.946 634.839 49.225 48.917 48.895
15 795.374 667.816 673.621 49.608 49.360 49.276
16 849.834 724.657 717.113 49.475 49.175 49.099
17 901.907 739.877 753.509 49.338 49.094 48.998
18 957.395 795.402 780.286 49.850 49.428 49.360
19 1010.702 869.258 877.458 49.870 49.603 49.518
20 1064.781 892.518 858.842 49.730 49.561 49.467
21 946.525 959.054 884.443 49.752 49.415 49.371
22 1169.169 951.487 957.266 49.734 49.475 49.397
23 1223.308 981.540 1016.227 49.220 48.926 48.874
24 1276.598 1014.258 1048.556 49.484 49.323 49.271
25 1331.670 1158.243 1072.181 49.365 49.141 49.088
26 1379.783 1189.800 1129.175 49.671 49.419 49.368
27 1434.226 1164.508 1168.762 49.753 49.427 49.378
28 1489.157 1261.949 1221.166 49.300 49.076 49.002
29 1540.581 1306.211 1311.738 49.605 49.235 49.190
30 1601.357 1299.206 1295.013 49.769 49.433 49.369
31 1653.141 1351.537 1405.414 49.856 49.616 49.527
32 1692.585 1419.625 1426.634 49.608 49.434 49.386
[Schmoo Related]
LOCAL_IDX = 0 : Local GPU index
REMOTE_IDX = 1 : Remote GPU index
SWEEP_MAX = 32 : Max number of subExecutors to use
SWEEP_MIN = 1 : Min number of subExecutors to use
USE_FINE_GRAIN = 0 : Using coarse-grained memory
Bytes to transfer: 268435456 Local GPU: 0 Remote GPU: 1
| Local Read | Local Write | Local Copy | Remote Read | Remote Write| Remote Copy |
#CUs |G00->G00->N00|N00->G00->G00|G00->G00->G00|G01->G00->N00|N00->G00->G01|G00->G00->G01|
|------|-------------|-------------|-------------|-------------|-------------|-------------|
1 31.275 56.947 54.649 23.250 56.354 16.008
2 63.360 111.062 111.648 42.510 61.841 32.069
3 94.786 159.915 157.217 58.491 61.574 47.758
4 125.263 206.254 215.890 67.051 61.683 58.118
5 154.284 247.049 250.347 65.372 61.129 49.033
6 187.071 312.830 308.607 66.833 61.480 59.549
7 215.486 350.307 354.566 67.416 60.972 58.593
8 246.444 410.437 394.129 67.913 62.747 61.175
9 277.144 444.415 455.422 67.842 61.290 59.632
10 308.084 484.421 499.521 67.880 61.232 60.124
11 336.616 549.631 557.121 67.856 61.551 59.818
12 369.013 593.980 583.503 67.885 61.407 59.615
13 397.772 634.416 631.802 67.936 60.917 61.034
14 429.556 688.752 675.656 67.898 61.209 60.205
15 463.523 719.647 737.079 67.944 61.154 60.210
16 492.962 786.956 764.987 67.852 62.921 61.556
17 524.163 813.451 822.919 67.959 61.181 60.190
18 542.562 857.169 862.646 67.951 61.439 60.465
19 580.838 905.857 921.543 67.965 61.183 60.895
20 606.689 986.007 949.209 67.950 60.991 60.555
21 635.903 1012.960 1021.343 67.976 60.967 60.942
22 663.815 1048.666 1043.773 67.952 61.644 61.512
23 690.147 1118.677 1091.516 68.005 61.263 60.845
24 719.361 1140.178 1152.880 67.957 62.712 62.428
25 750.207 1187.300 1192.013 68.014 61.365 61.175
26 786.751 1229.900 1227.538 67.958 61.040 61.112
27 815.247 1283.177 1278.599 68.012 61.220 61.362
28 855.279 1319.975 1335.241 67.958 61.277 61.600
29 865.201 1367.699 1362.437 67.975 61.296 61.569
30 916.368 1412.692 1421.783 68.003 61.315 61.514
31 932.003 1460.826 1460.643 68.007 61.867 62.011
32 949.888 1499.941 1497.281 67.917 62.874 62.825
Sweep (sweep) and random sweep preset (rsweep)#
The sweep preset performs an ordered sweep through sets of transfers. It systematically tests combinations of (SRC, Executor, DST) with varying parallelism (from SWEEP_MIN simultaneous transfers up to SWEEP_MAX) using lexicographic order (alphabetized by source-executor-destination triplet). The rsweep preset performs the same sweep in a random order.
Note
This preset is primarily used for stress testing.
Key features:
Test set construction: Builds all possible triplets (SRC, EXE, DST) from
SWEEP_SRC,SWEEP_EXE,SWEEP_DST, and device counts, as a Cartesian product (srcListxexeListxdstList) with filters such as XGMI hop count and CPU-on-GPU skip on NVIDIA.XGMI filtering: Optionally filters by XGMI hop count (
SWEEP_XGMI_MIN,SWEEP_XGMI_MAX).Parallelism sweep: Starts at
SWEEP_MINsimultaneous transfers, exhausts all combinations at that count, then increments up toSWEEP_MAX(set to0for no limit).Ordered permutation: Uses
std::prev_permutationto iterate through M-combinations of the possible transfer set in a deterministic order.Log format: Logs each test’s transfers to
SWEEP_FILE. TheSWEEP_FILEcontains lines such as “# Test N” and “-M (src->exe->dst CUs bytes)…”.Limits: Respects
SWEEP_TEST_LIMITandSWEEP_TIME_LIMIT.Default executors:
SWEEP_EXE= CDG includes CPU, DMA, and GFX for broad coverage.
Restrictions:
Single-node only.
Note
On systems with many devices, set SWEEP_TEST_LIMIT or SWEEP_TIME_LIMIT to bound the runtime. Without these limits, the default sweep may never finish.
Usage:
./TransferBench sweep
To run with memory and Executor limited to GPU only, and XGMI:
SWEEP_SRC=G SWEEP_DST=G SWEEP_EXE=G SWEEP_XGMI_MIN=1 SWEEP_MAX=16 ./TransferBench sweep
To limit the duration of run:
SWEEP_TIME_LIMIT=3600 SWEEP_FILE=/tmp/mySweep.cfg ./TransferBench sweep
Environment variables#
To modify the behavior of sweep and rsweep preset, use the following environment variables:
Environment variable |
Description |
Default value |
|---|---|---|
|
To continue despite validation error, set to |
|
|
Number of CPU NUMA nodes. |
(all detected) |
|
CPU threads per CPU-executed transfer. |
|
|
Number of GPUs. |
(all detected) |
|
CUs per GPU-executed transfer. |
|
|
Source memory types: C=CPU, G=GPU, N=Null. |
|
|
Destination memory types. |
|
|
Executor types: C=CPU, D=DMA, G=GFX. |
|
|
File where sweep configuration is saved. |
|
|
Minimum simultaneous transfers. |
|
|
Maximum simultaneous transfers (0=no limit). |
|
|
To use random transfer size, set to |
|
|
Random seed. Used for rsweep or |
time(NULL) |
|
Maximum number of tests allowed to run. |
|
|
Maximum allowed test duration (in seconds). |
|
|
Minimum XGMI hops for transfers. |
|
|
Maximum allowed XGMI hops. |
|
Example output#
[Sweep Related]
CONTINUE_ON_ERROR = 0 : Stop after first error
NUM_CPU_DEVICES = 2 : Using 2 CPUs
NUM_CPU_SE = 4 : Using 4 CPU threads per CPU executed Transfer
NUM_GPU_DEVICES = 8 : Using 8 GPUs
NUM_GPU_SE = 4 : Using 4 subExecutors/CUs per GPU executed Transfer
SWEEP_DST = CG : Destination Memory Types to sweep
SWEEP_EXE = CDG : Executor Types to sweep
SWEEP_FILE = /tmp/lastSweep.cfg : File to store the executing sweep configuration
SWEEP_MAX = 24 : Max simultaneous transfers (0 = no limit)
SWEEP_MIN = 1 : Min simultaenous transfers
SWEEP_RAND_BYTES = 0 : Using constant number of bytes per Transfer
SWEEP_SEED = 1773692223 : Random seed set to 1773692223
SWEEP_SRC = CG : Source Memory Types to sweep
SWEEP_TEST_LIMIT = 0 : Max number of tests to run during sweep (0 = no limit)
SWEEP_TIME_LIMIT = 0 : Max number of seconds to run sweep for (0 = no limit)
SWEEP_XGMI_MAX = -1 : Max number of XGMI hops for Transfers (-1 = no limit)
SWEEP_XGMI_MIN = 0 : Min number of XGMI hops for Transfers
Sweep configuration saved to: /tmp/lastSweep.cfg
Test 1:
-------------------┬--------------┬------------┬-------------------┬--------------------
Executor: CPU 00 │ 30.660 GB/s │ 8.755 ms │ 268435456 bytes │ 30.847 GB/s (sum)
-------------------┼--------------┼------------┼-------------------┼--------------------
Transfer 0 │ 30.847 GB/s │ 8.702 ms │ 268435456 bytes │ C1 -> C0:4 -> G6
-------------------┼--------------┼------------┼-------------------┼--------------------
Executor: GPU 01 │ 38.662 GB/s │ 6.943 ms │ 268435456 bytes │ 38.669 GB/s (sum)
-------------------┼--------------┼------------┼-------------------┼--------------------
Transfer 8 │ 38.669 GB/s │ 6.942 ms │ 268435456 bytes │ G2 -> G1:4 -> G1
-------------------┼--------------┼------------┼-------------------┼--------------------
Executor: GPU 02 │ 61.598 GB/s │ 4.358 ms │ 268435456 bytes │ 61.615 GB/s (sum)
-------------------┼--------------┼------------┼-------------------┼--------------------
Transfer 9 │ 61.615 GB/s │ 4.357 ms │ 268435456 bytes │ G2 -> G2:4 -> G0
-------------------┼--------------┼------------┼-------------------┼--------------------
Executor: GPU 03 │ 38.816 GB/s │ 6.916 ms │ 268435456 bytes │ 38.826 GB/s (sum)
-------------------┼--------------┼------------┼-------------------┼--------------------
Transfer 10 │ 38.826 GB/s │ 6.914 ms │ 268435456 bytes │ G2 -> G3:4 -> G7
-------------------┼--------------┼------------┼-------------------┼--------------------
Executor: GPU 06 │ 44.298 GB/s │ 12.120 ms │ 536870912 bytes │ 58.182 GB/s (sum)
-------------------┼--------------┼------------┼-------------------┼--------------------
Transfer 11 │ 22.151 GB/s │ 12.118 ms │ 268435456 bytes │ G1 -> G6:4 -> C1
Transfer 12 │ 36.030 GB/s │ 7.450 ms │ 268435456 bytes │ G2 -> G6:4 -> G5
-------------------┼--------------┼------------┼-------------------┼--------------------
Executor: GPU 07 │ 37.963 GB/s │ 7.071 ms │ 268435456 bytes │ 37.969 GB/s (sum)
-------------------┼--------------┼------------┼-------------------┼--------------------
Transfer 13 │ 37.969 GB/s │ 7.070 ms │ 268435456 bytes │ G4 -> G7:4 -> G6
-------------------┼--------------┼------------┼-------------------┼--------------------
Executor: DMA 01 │ 43.428 GB/s │ 12.362 ms │ 536870912 bytes │ 77.585 GB/s (sum)
-------------------┼--------------┼------------┼-------------------┼--------------------
Transfer 1 │ 55.481 GB/s │ 4.838 ms │ 268435456 bytes │ C0 -> D1:4 -> G0
Transfer 2 │ 22.105 GB/s │ 12.144 ms │ 268435456 bytes │ G7 -> D1:4 -> C1
-------------------┼--------------┼------------┼-------------------┼--------------------
Executor: DMA 03 │ 31.427 GB/s │ 8.541 ms │ 268435456 bytes │ 32.353 GB/s (sum)
-------------------┼--------------┼------------┼-------------------┼--------------------
Transfer 3 │ 32.353 GB/s │ 8.297 ms │ 268435456 bytes │ G4 -> D3:4 -> G6
-------------------┼--------------┼------------┼-------------------┼--------------------
Executor: DMA 04 │ 22.214 GB/s │ 12.084 ms │ 268435456 bytes │ 22.536 GB/s (sum)
-------------------┼--------------┼------------┼-------------------┼--------------------
Transfer 4 │ 22.536 GB/s │ 11.912 ms │ 268435456 bytes │ C1 -> D4:4 -> G1
-------------------┼--------------┼------------┼-------------------┼--------------------
Executor: DMA 06 │ 53.665 GB/s │ 10.004 ms │ 536870912 bytes │ 72.749 GB/s (sum)
-------------------┼--------------┼------------┼-------------------┼--------------------
Transfer 5 │ 27.768 GB/s │ 9.667 ms │ 268435456 bytes │ G2 -> D6:4 -> C0
Transfer 6 │ 44.981 GB/s │ 5.968 ms │ 268435456 bytes │ G3 -> D6:4 -> G2
-------------------┼--------------┼------------┼-------------------┼--------------------
Executor: DMA 07 │ 57.440 GB/s │ 4.673 ms │ 268435456 bytes │ 60.131 GB/s (sum)
-------------------┼--------------┼------------┼-------------------┼--------------------
Transfer 7 │ 60.131 GB/s │ 4.464 ms │ 268435456 bytes │ G7 -> D7:4 -> G5
-------------------┼--------------┼------------┼-------------------┼--------------------
Aggregate (CPU) │ 295.108 GB/s │ 12.735 ms │ 3758096384 bytes │ Overhead 0.372 ms
-------------------┴--------------┴------------┴-------------------┴--------------------
