ROCm Compute Profiler at a glance

ROCm Compute Profiler (rocprofiler-compute) is a kernel-level profiling tool that measures how efficiently a single GPU kernel dispatch uses the underlying hardware: compute unit occupancy, cache and memory bandwidth utilization, instruction mix, and achieved versus peak arithmetic throughput.

This kernel-level view matters once you already know which kernel is worth optimizing. Where ROCm Systems Profiler characterizes an entire application to find where time goes, ROCm Compute Profiler drills into a specific dispatch to explain why it runs at the speed it does, down to the hardware block level.

This topic orients you to how ROCm Compute Profiler is put together and how to invoke it. For a narrative introduction, see What is ROCm Compute Profiler? for the full performance-model reference, see Performance model.

Key features

The feature set is documented across several how-to and conceptual pages; this table is a quick index into them.

Feature	Description	See also
Kernel-level counter collection	Collects hardware performance counters per kernel dispatch, replaying the application as many times as needed to gather every requested counter.	How it works
System and hardware block Speed-of-Light	Compares achieved utilization against theoretical peak, both for overall GPU throughput and for individual hardware blocks such as the command processor, workgroup manager, and caches.	Analysis views
Memory chart analysis	Visualizes transaction counts and bandwidth at each level of the memory hierarchy.	Analysis views
Empirical roofline analysis	Benchmarks achievable peak compute throughput and memory bandwidth, then plots kernel arithmetic intensity against that roofline.	Standalone roofline
Wavefront and instruction mix analysis	Reports launch and runtime statistics, and the breakdown of VALU, VMEM, scalar, and matrix instructions issued by a kernel.	Pipeline metrics
Baseline comparison	Compares two or more profiled runs of the same SoC side by side to check the effect of a code change.	analysis-baseline-comparison
Multiple analysis interfaces	The command line and ROCm Optiq both read the same profiling output.	Quickstart
Iteration multiplexing	Collects a large number of performance counters with minimal profiling overhead by splitting counter collection across kernel iterations instead of full application replays.	Iteration multiplexing

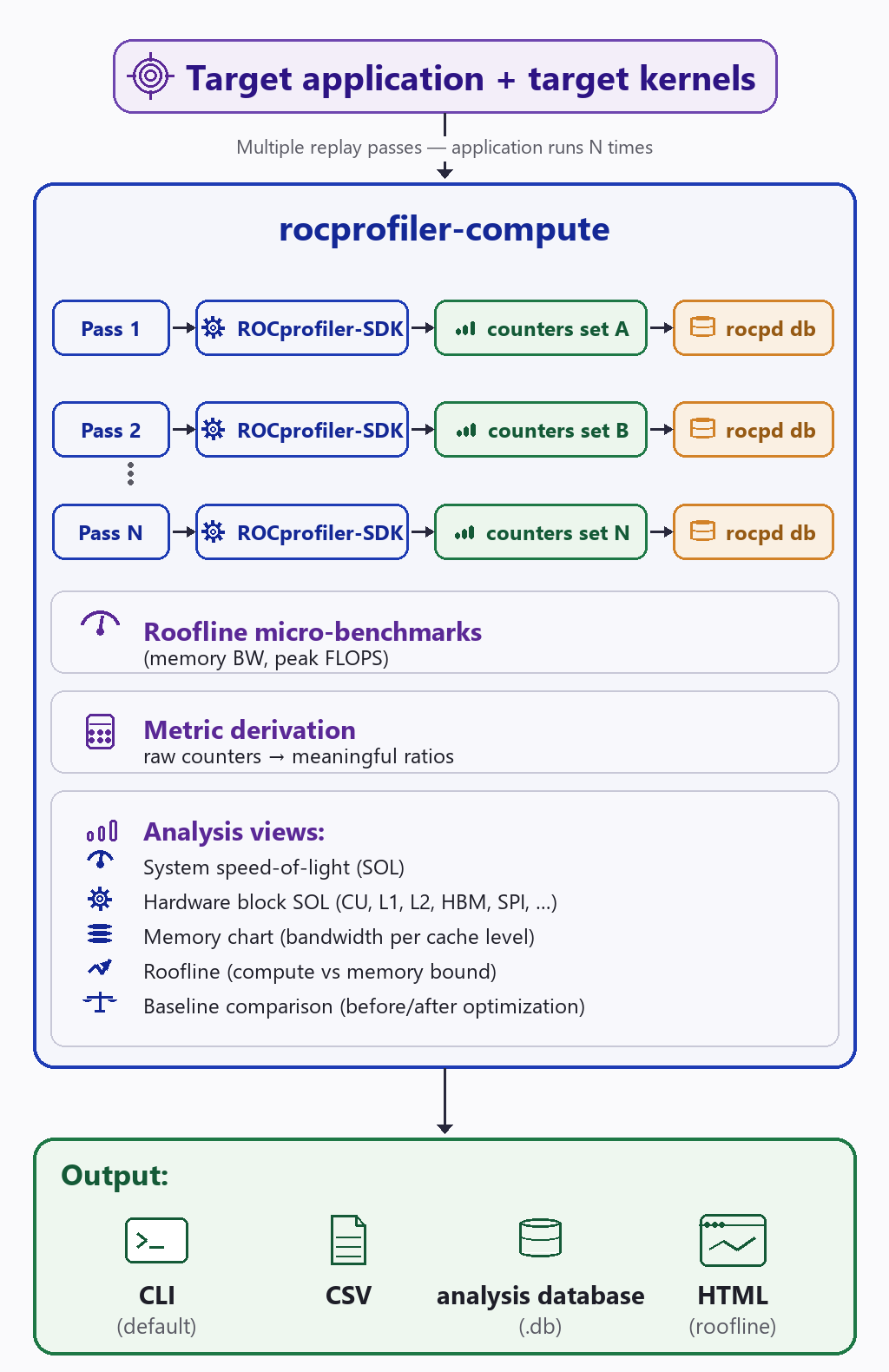

How it works

ROCm Compute Profiler is a Python-based tool that profiles an application in up to two stages: it first replays the application as many times as needed to collect the requested hardware counters per kernel dispatch, then, unless disabled with --no-roof, runs a set of accelerator-specific micro-benchmarks to establish the empirical roofline. See profiling-routine for the exact stage breakdown.

Counter collection is performed by injecting two libraries into the target process alongside ROCprofiler-SDK: a native tool (librocprofiler-compute-tool.so) that collects hardware performance counters per dispatch, and an SDK tool (librocprofiler-sdk-tool.so) that handles kernel tracing and output database generation. See Configuring the environment for profiling for the full backend and library breakdown.

Warning

Because associating counters with a specific kernel dispatch requires serializing dispatches, kernels launched on separate HIP streams on the same GPU don’t execute concurrently while profiling. Profiled kernel duration and utilization metrics reflect this serialized execution, not the concurrent behavior of a normal run. See the full warning and its consequences in Profile mode.

Once counters are collected, ROCm Compute Profiler derives higher-level metrics, such as utilizations and ratios, from the raw counter values to populate the analysis views described next.

Analysis views

ROCm Compute Profiler’s analysis report is organized into the following views:

View	What it tells you	See also
System Speed-of-Light	What percentage of the GPU’s theoretical peak performance the kernel achieves, across compute and memory subsystems.	CDNA Speed-of-Light, RDNA Speed-of-Light
Hardware block Speed-of-Light	Which specific hardware block — the compute unit, a cache level, the command processor, or the workgroup manager — is the bottleneck for a kernel, based on utilization and stall metrics for that block.	Analysis report block filtering, Performance model
Memory chart	Read, write, and atomic transaction counts, hit rates, and latencies at each level of the memory hierarchy: LDS, the L1 caches, the L2 cache, and HBM.	Vector L1 cache (vL1D), L2 cache (TCC)
Roofline	Classifies whether a kernel is compute-bound or memory-bound, and plots its exact position against attainable peak compute throughput and memory bandwidth; combine with kernel filtering for a per-kernel breakdown.	Standalone roofline, per-kernel-roofline
Wavefront analysis	Launch statistics (grid size, workgroup size, VGPR/AGPR/SGPR usage) and runtime statistics (wavefront occupancy, active cycles) for profiled kernels.	Pipeline metrics
Instruction mix	Breakdown of VALU, VMEM, scalar, LDS, and matrix (MFMA/WMMA) instructions issued by a kernel.	Pipeline metrics
Baseline comparison	Side-by-side comparison of any of the preceding views across two or more profiled runs of the same SoC — for example, before and after an optimization.	analysis-baseline-comparison

Key commands

ROCm Compute Profiler exposes two primary modes on the rocprof-compute executable: profile to collect data, and analyze to read it back. See Modes for the full list of modes and Basic operations for the required arguments per operation.

Command	Purpose
rocprof-compute profile -n my_run -- ./app	Profiles ./app, collecting all available counters for all kernels, and writes results to workloads/my_run/<SoC>/.
rocprof-compute profile -n my_run -k vecCopy -- ./app	Profiles only kernels whose name matches vecCopy.
rocprof-compute profile -n my_run -d 1 2 3 -- ./app	Profiles only the 1st, 2nd, and 3rd dispatch of each kernel.
rocprof-compute profile -n my_run -b 2 5 -- ./app	Profiles only the counters needed for the specified analysis report blocks, which speeds up the profiling run.
rocprof-compute profile -n my_run --roof-only -- ./app	Runs only the roofline micro-benchmarks, skipping standard counter collection.
rocprof-compute analyze -p workloads/my_run/MI300X/	Analyzes a profiled run in the terminal.
rocprof-compute analyze -p workloads/my_run/MI300X/ --output-format db	Writes the analysis to a SQLite analysis database instead of printing to the terminal.
rocprof-compute analyze -p run_a/MI300X/ run_b/MI300X/	Compares two profiled runs of the same SoC side by side.

For full walkthroughs, see Profile mode and CLI analysis.

Flags reference

This isn’t an exhaustive list of flags; run rocprof-compute profile -h or rocprof-compute analyze -h for the complete set. The following are the most commonly used with profile and analyze:

Flag	Mode	Effect
-n, --name	profile	Names the run and sets the output subdirectory under workloads/.
-k, --kernel	profile, analyze	Filters to kernels whose name matches the given substring. See Kernel filtering.
-d, --dispatch	profile, analyze	Filters to the given 1-based dispatch indices or ranges (start:end or start-end). See Dispatch filtering.
-b, --block	profile, analyze	Limits collection or analysis to the given analysis report blocks; in profile mode this also speeds up counter collection. Can’t combine with --roof-only or --set. See Analysis report block filtering.
--roof-only	profile	Runs only the roofline micro-benchmarks. Can’t combine with --block, --set, or --bench-only. See Standalone roofline.
-p, --path	analyze	Points analyze at one or more profiled output directories; repeat or space-separate for baseline comparison.
--output-format	analyze	Selects the analysis report format: stdout (default), txt, csv, or db. See Output formats.

Output formats

analyze accepts an --output-format option for the analysis report. The following table lists the available values, plus the HTML roofline plots that analyze writes automatically, and the rocpd database that profile always writes:

Format	Produced by	Description
rocpd	profile	SQLite database of raw counters per dispatch, written automatically. Required for analyze --output-format csv or db.
stdout (default)	analyze	Analysis results printed to the terminal only.
txt	analyze	Analysis results written to a rocprof_compute_<uuid>.txt file.
csv	analyze	Analysis results written to a folder of CSV files. Requires the workload’s rocpd database from profiling.
db	analyze	Analysis results written to a rocprof_compute_<uuid>.db SQLite analysis database. Same requirement as csv.
html	analyze	Standalone Plotly roofline plot(s) (empirRoof_gpu-<id>...html), written automatically whenever the workload includes roofline data, independent of --output-format. See Standalone roofline.

Select the analyze output format with --output-format and override the file name with --output-name. See Analysis output format for details.

Supported hardware

Roofline micro-benchmark support varies by SoC family independently of general counter and Speed-of-Light support. See Compatible GPUs/APUs for the full, tool-wide support table.

SoC family	Counters / SOL support	Roofline support	Notes
AMD Instinct™ MI350 Series (CDNA4, gfx950)	✅	✅	Full feature support; MI350P support introduced in ROCm Compute Profiler 3.6.0.
AMD Instinct MI300 Series (CDNA3)	✅	✅	Full feature support.
AMD Instinct MI200 Series (CDNA2)	✅	✅	Full feature support.
AMD Instinct MI100 Series (CDNA1)	✅	❌	Roofline micro-benchmarks require MI200 or later. See Standalone roofline.
AMD Ryzen™ AI Max / Ryzen AI Max+ 300 and 400 Series and Ryzen AI 5/7 PRO 4xx Series (Strix/Halo, Gorgon/Halo; gfx1150/gfx1151/gfx1152/gfx1153)	✅	✅	Full feature support; roofline benchmarking for gfx1150 and gfx1152 was added in ROCm Compute Profiler 3.7.0, with the gfx1151 (Strix Halo) gap closed in 3.8.0. Uses Wave Matrix Multiply Accumulate (WMMA) in place of MFMA.
AMD Instinct MI50, MI60 (Vega 20)	❌	❌	—
