RCCL usage tips#
This topic describes some of the more common RCCL extensions, such as NPKit and MSCCL, and provides tips on how to configure and customize the application.
NPKit#
RCCL integrates NPKit, a profiler framework that enables the collection of fine-grained trace events in RCCL components, especially in giant collective GPU kernels. See the NPKit sample workflow for RCCL for a fully-automated usage example. It also provides useful templates for the following manual instructions.
To manually build RCCL with NPKit enabled, pass -DNPKIT_FLAGS="-DENABLE_NPKIT -DENABLE_NPKIT_...(other NPKit compile-time switches)"
to the cmake
command.
All NPKit compile-time switches are declared in the RCCL code base as macros with the prefix ENABLE_NPKIT_
.
These switches control the information that is collected.
Note
NPKit only supports the collection of non-overlapped events on the GPU.
The -DNPKIT_FLAGS
settings must follow this rule.
To manually run RCCL with NPKit enabled, set the environment variable NPKIT_DUMP_DIR
to the NPKit event dump directory. NPKit only supports one GPU per process.
To manually analyze the NPKit dump results, use npkit_trace_generator.py.
MSCCL/MSCCL++#
RCCL integrates MSCCL and MSCCL++ to leverage these highly efficient GPU-GPU communication primitives for collective operations. Microsoft Corporation collaborated with AMD for this project.
MSCCL uses XMLs for different collective algorithms on different architectures. RCCL collectives can leverage these algorithms after the user provides the corresponding XML. The XML files contain sequences of send-recv and reduction operations for the kernel to run.
MSCCL is enabled by default on the AMD Instinct™ MI300X accelerator. On other platforms, users might have to enable it
using the setting RCCL_MSCCL_FORCE_ENABLE=1
. By default, MSCCL is only used if every rank belongs
to a unique process. To disable this restriction for multi-threaded or single-threaded configurations,
use the setting RCCL_MSCCL_ENABLE_SINGLE_PROCESS=1
.
RCCL allreduce and allgather collectives can leverage the efficient MSCCL++ communication kernels for certain message sizes. MSCCL++ support is available whenever MSCCL support is available. To run a RCCL workload with MSCCL++ support, set the following RCCL environment variable:
RCCL_MSCCLPP_ENABLE=1
To set the message size threshold for using MSCCL++, use the environment variable RCCL_MSCCLPP_THRESHOLD
,
which has a default value of 1MB. After RCCL_MSCCLPP_THRESHOLD
has been set,
RCCL invokes MSCCL++ kernels for all message sizes less than or equal to the specified threshold.
The following restrictions apply when using MSCCL++. If these restrictions are not met, operations fall back to using MSCCL or RCCL.
The message size must be a non-zero multiple of 32 bytes
It does not support
hipMallocManaged
buffersAllreduce only supports the
float16
,int32
,uint32
,float32
, andbfloat16
data typesAllreduce only supports the sum operation
Enabling peer-to-peer transport#
To enable peer-to-peer access on machines with PCIe-connected GPUs, set the HSA environment variable as follows:
HSA_FORCE_FINE_GRAIN_PCIE=1
This feature requires GPUs that support peer-to-peer access along with proper large BAR addressing support.
Improving performance on the MI300X#
This section outlines ways to improve RCCL performance on MI300X systems, including guidelines for systems with fewer than eight GPUs and the most efficient GPU partition modes.
Configuration with fewer than eight GPUs#
On a system with eight MI300X accelerators, each pair of accelerators is
connected with dedicated Infinity Fabric™ links in a fully connected topology.
For collective operations, this can achieve good performance when all eight
accelerators (and all Infinity Fabric links) are used. When fewer than eight
GPUs are used, however, this can only achieve a fraction of the potential
bandwidth on the system. However, if your workload warrants using fewer than
eight MI300X accelerators on a system, you can set the run-time variable
NCCL_MIN_NCHANNELS
to increase the number of channels. For example:
export NCCL_MIN_NCHANNELS=32
Increasing the number of channels can benefit performance, but it also increases GPU utilization for collective operations. Additionally, RCCL pre-defines a higher number of channels when only two or four accelerators are in use on a 8*MI300X system. In this situation, RCCL uses 32 channels with two MI300X accelerators and 24 channels for four MI300X accelerators.
NPS4 and CPX partition modes#
The term compute partitioning modes, or Modular Chiplet Platform (MCP), refers to the logical partitioning of XCDs into devices in the ROCm stack. The names are derived from the number of logical partitions that are created out of the eight XCDs. In the default mode, SPX (Single Partition X-celerator), all eight XCDs are viewed as a single logical compute element, meaning that the amd-smi utility will show a single MI300X device. In CPX (Core Partitioned X-celerator) mode, each XCD appears as a separate logical GPU, for example, as eight separate GPUs in amd-smi per MI300X. CPX mode can be viewed as having explicit scheduling privileges for each individual compute element (XCD).
While compute partitioning modes change the space on which you can assign work to compute units, the memory partitioning modes (known as Non-Uniform Memory Access (NUMA) Per Socket (NPS)) change the number of NUMA domains that a device exposes. In other words, it changes the number of HBM stacks which are accessible to a compute unit, and therefore the size of its memory space. However, for the MI300X, the number of memory partitions must be less than or equal to the number of compute partitions. NPS4 (viewing pairs of HBM stacks as a disparate element), for example, is only enabled when in CPX mode (viewing each XCD as a disparate element).
Compute partition modes
In SPX mode, workgroups launched to the device are distributed round-robin to the XCDs in the device, meaning that the programmer cannot have explicit control over which XCD a workgroup is assigned to.
In CPX mode, workgroups are launched to a single XCD, meaning the programmer has explicit control over work placement onto the XCDs.
Memory partition modes
In NPS1 mode (compatible with CPX and SPX), the entire memory is accessible to all XCDs.
In NPS4 mode (compatible with CPX), each memory quadrant of the memory is directly visible to the logical devices in its quadrant. An XCD can still access all portions of memory through multi-GPU programming techniques.
The MI300 CPX mode can be accessed using the following AMD SMI documentation commands.
amd-smi set --gpu all --compute-partition CPX
amd-smi set --gpu all --memory-partition NPS4
RCCL performance with CPX and NPS4#
To run RCCL allreduce on 64 GPUs with CPX+NPS4 mode on the MI300X, use this example:
mpirun -np 64 --bind-to numa rccl-tests/build/all_reduce_perf -b 8 -e 1G -f 2 -g 1
To run RCCL allreduce on 8 GPUs in the same OAM with CPX+NPS4 mode on the MI300X, use this example:
export ROCR_VISIBLE_DEVICES=0,1,2,3,4,5,6,7
mpirun -np 8 --bind-to numa rccl-tests/build/all_reduce_perf -b 8 -e 1G -f 2 -g 1
RCCL delivers improved allreduce performance in CPX mode for TP=8 (8 GPUs in the same OAM) on the MI300X.
export HIP_FORCE_DEV_KERNARG=1
export RCCL_MSCCLPP_THRESHOLD=1073741824
export MSCCLPP_READ_ALLRED=1
export ROCR_VISIBLE_DEVICES=0,1,2,3,4,5,6,7
mpirun -np 8 --bind-to numa rccl-tests/build/all_reduce_perf -b 32 -e 1G -f 2 -g 1 -G 2 -w 20 -n 50

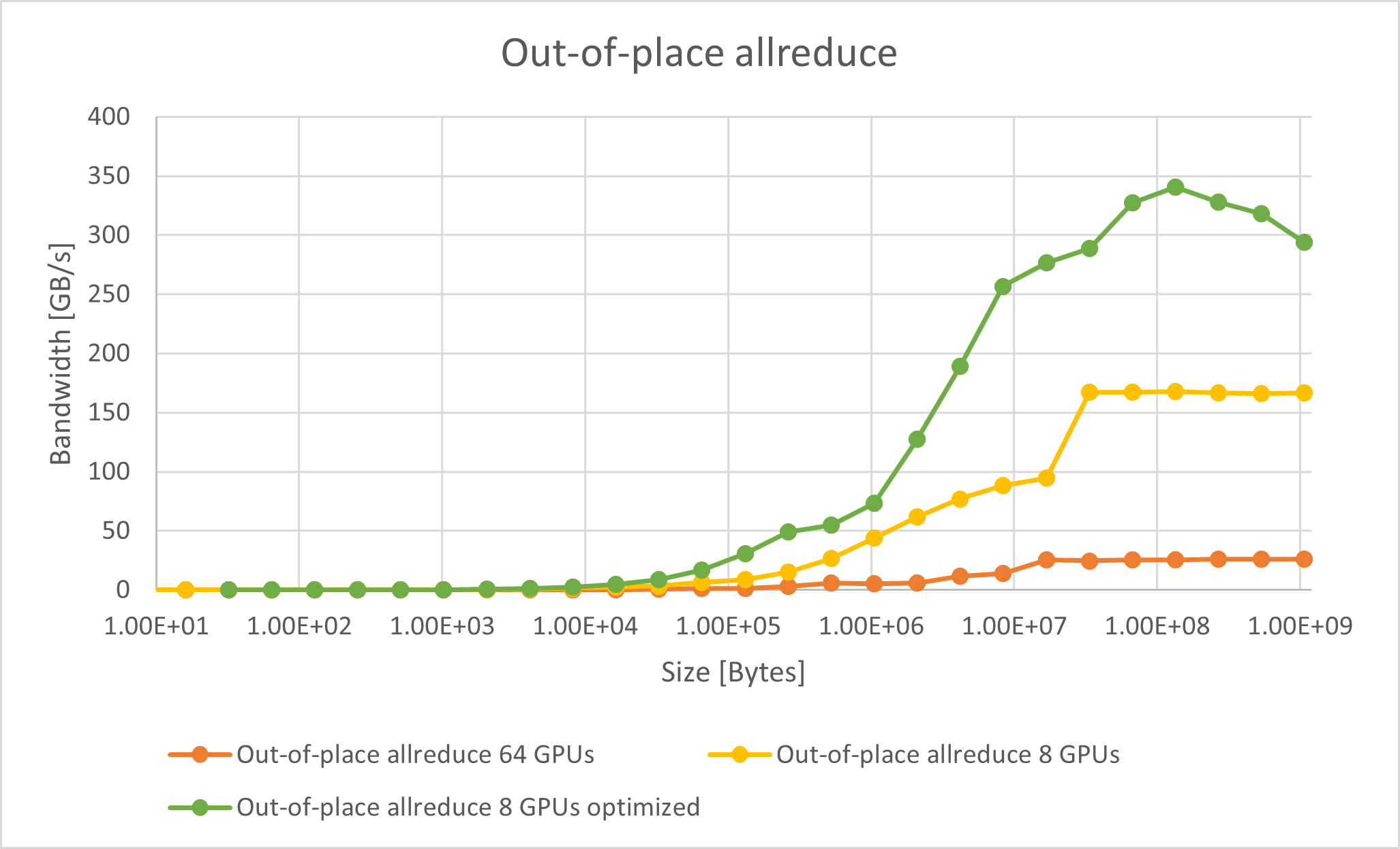

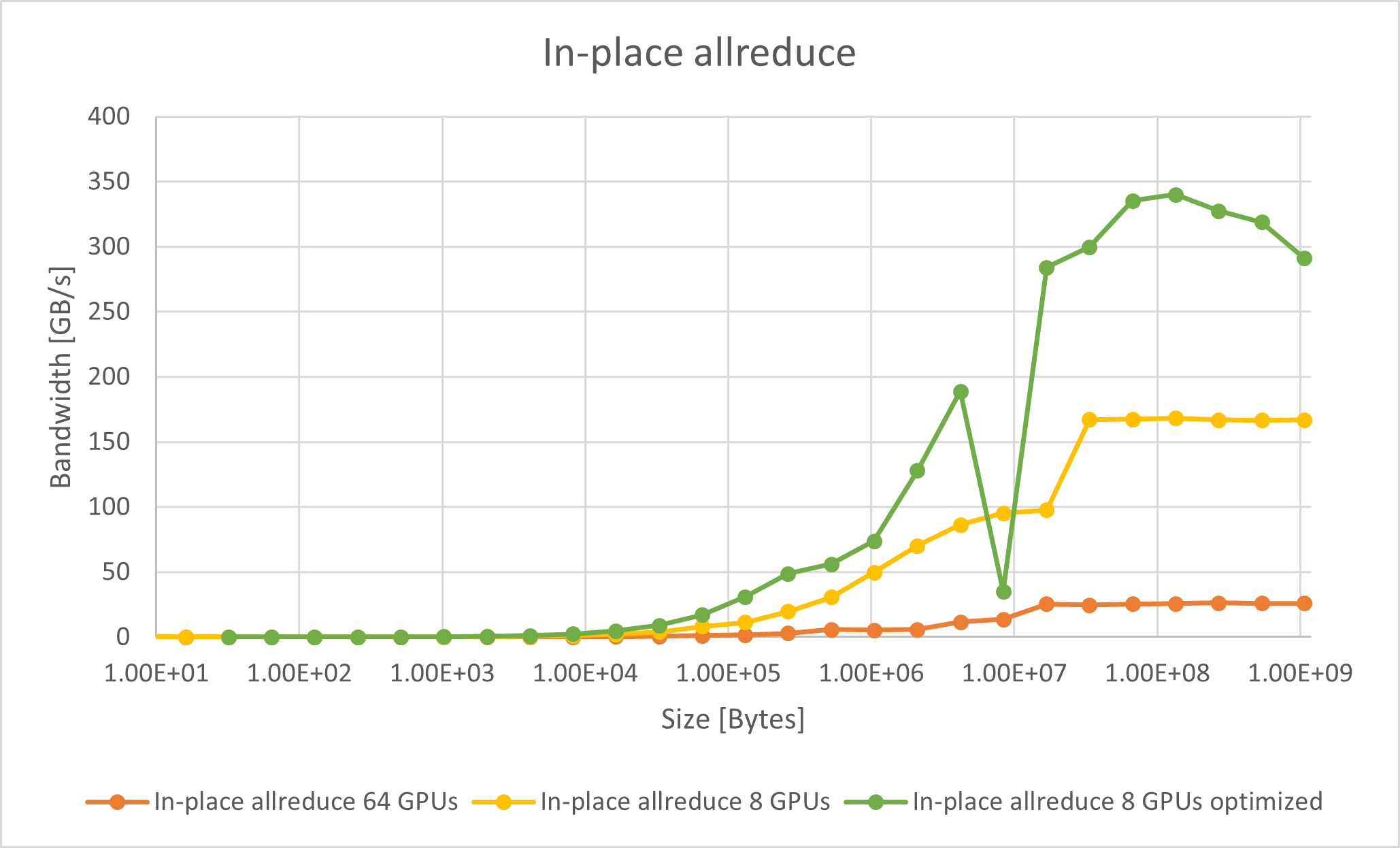

Here are the benchmark results for in-place (where the output buffer is used as the input buffer) and out-of-place allreduce bus bandwidth.


A significant performance improvement is achievable with optimized CPX mode, which peaks at ~340 GB/s with a single OAM. The difference in bus bandwidth between the unoptimized and optimized modes increases as the buffer size grows.
Using RCCL and CPX in PyTorch#
The PyTorch all_reduce benchmark is used to reproduce the performance reported by RCCL-Tests with the RCCL and CPX optimizations.
Note
To use RCCL with CPX mode in PyTorch, check the RCCL version used by PyTorch.
For a virtualenv with a .whl-based PyTorch setup (such as nightly/rocm6.2),
this would be in
<path-to-your-venv>/lib/<python-version>/site-packages/torch/lib/librccl.so
This is the version of RCCL that is packaged as part of ROCm version 6.2.
RCCL for CPX mode was enabled in ROCm 6.3.0. To use the CPX features, replace
the existing librccl.so
with one from ROCm 6.3.0 or newer or from a local
build of the RCCL develop branch.
To test the effects of RCCL on PyTorch, the stas00 all reduce benchmark was used. The following command is used to run a single OAM allreduce benchmark:
export ROCR_VISIBLE_DEVICES=0,1,2,3,4,5,6,7
python -u -m torch.distributed.run --nproc_per_node=8 --rdzv_endpoint localhost:6000 --rdzv_backend c10d all_reduce_bench.py
For better performance, the HIP_FORCE_DEV_KERNARG
, RCCL_MSCCLPP_THRESHOLD
,
and TORCH_NCCL_USE_TENSOR_REGISTER_ALLOCATOR_HOOK
environment variables are
set during the benchmark in the following manner:
export TORCH_NCCL_USE_TENSOR_REGISTER_ALLOCATOR_HOOK=1
export HIP_FORCE_DEV_KERNARG=1
export RCCL_MSCCLPP_THRESHOLD=$((2*1024*1024*1024))
export MSCCLPP_READ_ALLRED=1
export ROCR_VISIBLE_DEVICES=0,1,2,3,4,5,6,7
python -u -m torch.distributed.run --nproc_per_node=8 --rdzv_endpoint localhost:6000 --rdzv_backend c10d all_reduce_bench.py
The default allreduce PyTorch benchmark peak bus bandwidth performance is ~170 GB/s on a single OAM with ROCm 6.2.4, while the optimized run for CPX on a single OAM peaks at ~315 GB/s.
