Using the hipBLASLt Tuning Utility

Using the hipBLASLt Tuning Utility#

hipBLASLt has a simple utility that uses the existing kernel pools and searches for the best solution for a given problem size.

The template.yaml file#

The template.yaml file can be found in the utilities directory.

# Two steps, can comment out Bench or CreateLogic if you want to disable.
Bench:
ProblemType:  # Same as the given problem type
    ComputeDataType: s
    ComputeInputDataType: s  # Usually the same as DataTypeA and DataTypeB unless you are using mix precisions.
    DataTypeA: s
    DataTypeB: s
    DataTypeC: s
    DataTypeD: s
    TransposeA: 0
    TransposeB: 0
    UseBias: False
TestConfig:
    ColdIter: 20
    Iter: 100  # You can change this to a larger value for a more stable result, but the executing time also increases.
    AlgoMethod: "all"  # Fixed value
    RotatingBuffer: 512  # It's recommended to set this value larger than the cache size of the GPU.
TuningParameters:
    # SplitK list control parameter example
    # SplitK: [0, 4, 8]  # [0] For disable
ProblemSizes:
- [128, 128, 128]  # M, N, K
CreateLogic: {}  # Fixed

Running the tuning utility#

The find_exact.py file is found in the utilities directory.

Follow these steps to run the tuning:

  1. Run ./install.sh first. See Installation for more details.

  2. Ensure the MatchTable.yaml file exists in build/release/library.

  3. Run the command python3 find_exact.py <your yaml file> <hipblaslt_root_folder>/build/release <output folder>

You should see the following message appear. The following example is for NN FP32 tuning:

Running benchmarks
--Running size: result_NN_SSS_128x128x128.txt

After the tuning completes, the following message will appear:

Creating exact logic
--Reading matching table: <hipblaslt_root_folder>/build/release/library/MatchTable.yaml
--Reading bench files
 --Found file <output folder>/0_Bench/result_NN_SSS_88x12x664.txt
Writing logic yaml files: 100%|███████| 1/1 [00:05<00:00,  5.69s/it]

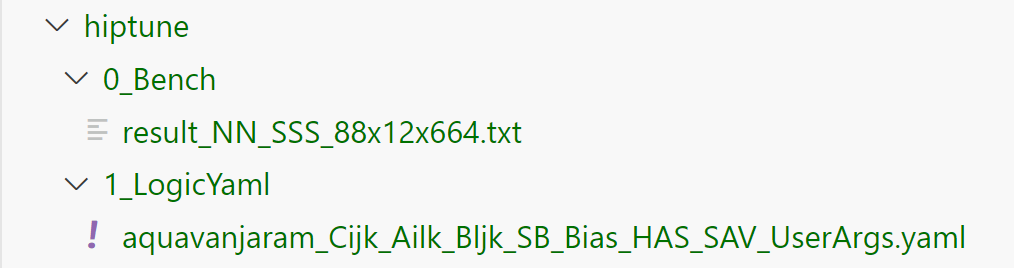

The final structure of the output folder is as follows:

_images/hipblaslt-tuning-folder-structure.png

The 0_Bench folder stores the raw benchmark results. The 1_LogicYaml folder stores the output, which is a tuned Equality logic yaml file.
