This chapter describes the hardware architecture of AMD GPUs supported by HIP, focusing on the internal organization and operation of GPU hardware components. Understanding these hardware details helps you optimize GPU applications and achieve maximum performance.

Overall GPU architecture#

AMD GPUs consist of interconnected blocks of digital circuits that work together to execute complex parallel computing tasks. The architecture is organized hierarchically to enable massive parallelism while managing resources efficiently.

Command processor and control#

The command processor (CP) serves as the primary interface between the CPU and GPU, receiving and distributing commands for execution. The CP consists of two main components:

Command processor fetcher (CPF): Fetches commands from memory and passes them to the CPC for processing.
Command processor packet processor (CPC): A microcontroller that decodes the fetched commands and dispatches kernels to the workgroup processors for scheduling.

The command processor handles several types of operations:

Kernel launches, which are forwarded to asynchronous compute engines (ACEs)
Memory transfers, which are delegated to direct memory access (DMA) engines
Synchronization operations and memory fences

DMA engines handle memory transfers between CPU and GPU memory without CPU involvement after initialization. Most GPUs contain two DMA engines, enabling concurrent bidirectional transfers to better utilize PCIe bandwidth. The DMA engines fetch data in small chunks and can process transfers in parallel but cannot handle multiple copy commands on the same engine simultaneously.

Asynchronous compute engines (ACEs) break down kernels into workgroups for distribution to shader processor input (SPI) blocks. Multiple ACEs enable concurrent kernel execution, with each ACE capable of dispatching one kernel at a time. ACEs process commands from different queues asynchronously, enabling overlap between different kernel executions and memory operations.

Hierarchical organization#

The GPU organizes compute resources in a three-level hierarchy that enables modular design and resource sharing:

Shader engines (SE): Top-level organizational units containing multiple shader arrays and shared resources
Shader arrays: Groups of compute units sharing instruction and scalar caches
Compute units (CU): Basic execution units containing the ALUs and registers for thread execution

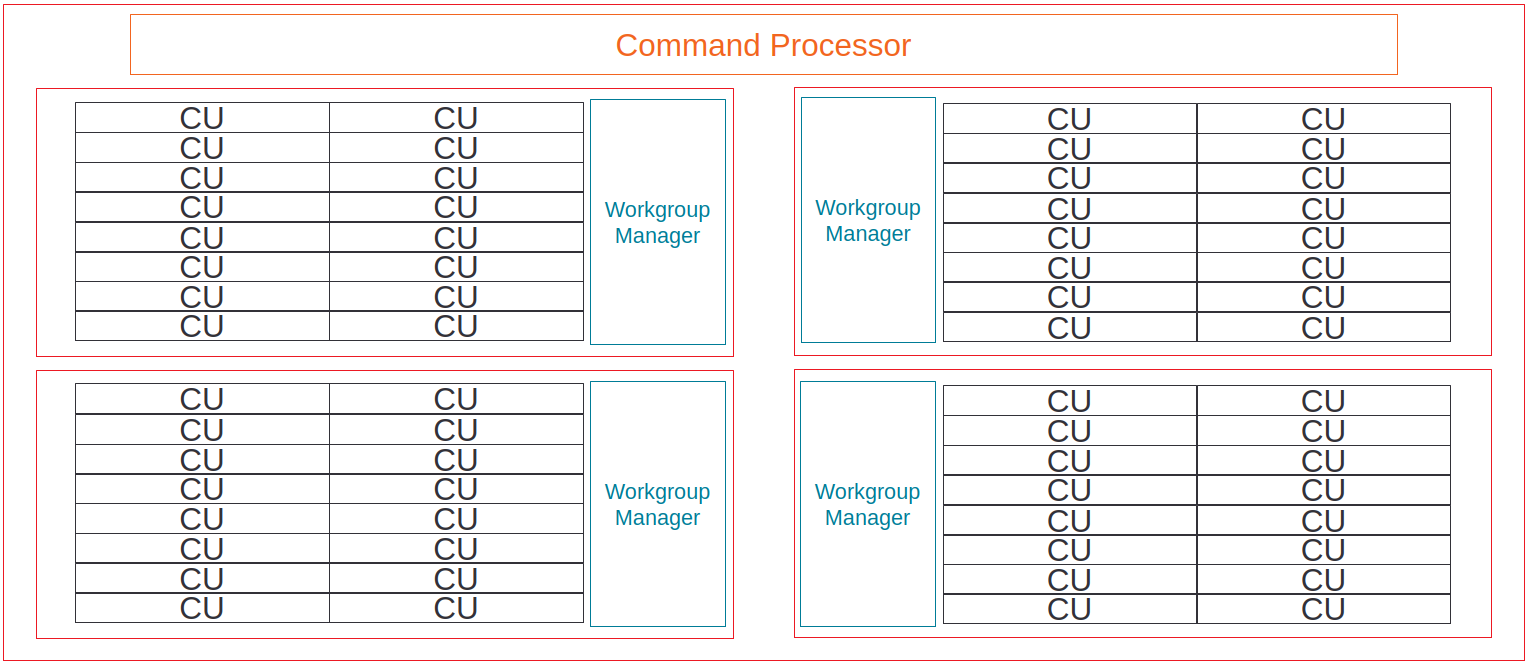

Diagram showing the hierarchical organization of compute units grouped into shader engines on AMD GPUs — Hierarchical organization of compute units into shader engines#

This hierarchical design allows different GPU configurations using the same underlying architecture. For example, the R9 Fury X contains 16 shader arrays with four CUs each, while the RX 480 contains 12 shader arrays with three CUs each, but both use the same gfx803 chip design.

Shader engine components#

Shader engines group multiple compute units together with shared resources that improve efficiency and reduce redundancy. Each shader engine contains several key components shared across its compute units.

Workgroup manager (SPI)#

The workgroup manager, also called the shader processor input (SPI), bridges the command processor and compute units. After the CP processes a kernel dispatch, the SPI:

Receives workgroups from the ACEs
Schedules workgroups onto available compute units
Initializes registers with kernel parameters
Ensures all wavefronts of a workgroup execute on the same CU for synchronization
Monitors resource availability and queues workgroups when resources are exhausted

The SPI tracks four critical resources that limit concurrent execution:

Wavefront slots (execution contexts)
Vector general-purpose registers (VGPRs)
Scalar general-purpose registers (SGPRs)
Local data share (LDS) memory

Workgroup-to-CU mapping is non-deterministic and based on available resources. You should not assume any specific mapping pattern, as the same kernel launched multiple times can have different workgroup distributions.

Scalar L1 data cache (sL1D)#

The scalar L1 data cache serves scalar memory operations from multiple CUs within a shader array. The sL1D is shared between CUs (3 CUs in the Graphics Core Next (GCN) and MI100, 2 CUs in the MI200 series) and caches data that is uniform across a wavefront, including:

Kernel arguments and pointers
Grid and block dimensions
Constants accessed uniformly across threads
Data from __constant__ memory when accessed uniformly

Unlike the vector L1 cache, the sL1D doesn’t use a “hit-on-miss” approach, meaning subsequent requests to the same pending cache line count as duplicated misses rather than hits.

L1 instruction cache (L1I)#

The L1 instruction cache is a read-only cache shared between multiple CUs in a shader array. Like the sL1D, it is backed by the L2 cache and doesn’t use the “hit-on-miss” approach. The L1I stores kernel instructions fetched by the compute units, reducing instruction fetch latency and L2 cache pressure.

Compute unit architecture#

The compute unit (CU) is the fundamental execution block of AMD GPUs. It’s responsible for executing kernels through its various specialized components and pipelines.

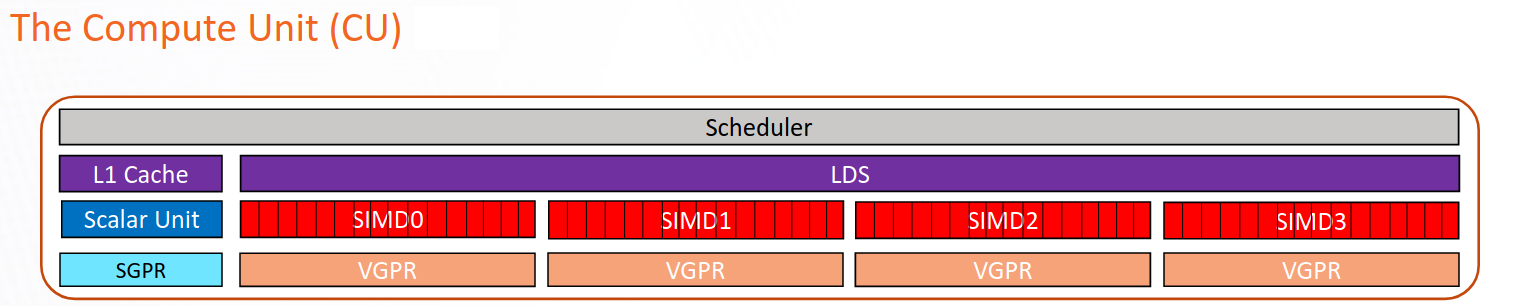

Detailed diagram of an AMD CDNA compute unit showing internal components and data flow — Internal architecture of an AMD CDNA compute unit#

Sequencer and scheduling#

The instruction sequencer (SQ) serves as the control center of each compute unit, managing instruction flow through the execution pipelines. The sequencer maintains wavefront state and coordinates instruction execution across different functional units.

Wavefront organization: The sequencer organizes active wavefronts into four pools, each containing slots for up to ten wavefronts (eight on the CDNA2 MI200 series). Each slot includes:

Wavefront-level registers (program counter, execution mask, and others)
Instruction buffer for prefetched instructions
State information for scheduling decisions

This organization theoretically allows up to 40 concurrent wavefronts per CU, though actual occupancy is typically limited by register and LDS usage.

Instruction fetching: The fetch arbiter selects one wavefront per cycle to fetch instructions from memory, prioritizing the oldest wavefronts. Each CU can fetch up to 32 bytes (4-8 instructions) per cycle.

Instruction issuing: The issue arbiter determines which instructions execute each cycle, selecting wavefronts from one pool per cycle in round-robin fashion. The arbiter can issue multiple instructions per cycle to different execution units, with a theoretical maximum of five instructions per cycle:

One VALU instruction
One vector memory operation
One SALU/scalar memory operation
One LDS operation
One branch operation

Instructions always issue at wavefront granularity, with all threads in the wavefront executing the same instruction in lockstep. Context switching between wavefronts occurs every cycle with zero overhead, as all wavefront contexts remain resident on the CU.

Execution pipelines#

Each compute unit contains multiple specialized execution pipelines that process different types of instructions in parallel, enabling efficient utilization of the hardware resources.

Vector arithmetic logic unit (VALU)#

The VALU executes vector instructions across entire wavefronts, with each thread potentially operating on different data. The VALU consists of:

Four SIMD processors: Each containing 16 single-precision ALUs (or equivalent), for 64 total ALUs per CU
Vector register files: 256-512 KiB of VGPR storage split across the four SIMDs
Instruction buffers: Storage for up to 8-10 wavefronts per SIMD

On architectures with 64-thread wavefronts and 16-instruction wide SIMD units, executing one instruction takes four cycles (one cycle per 16 threads). The four SIMD design ensures full utilization when sufficient wavefronts are available, as a new instruction can issue to each SIMD every cycle.

The VALU serves as the primary arithmetic engine, executing the majority of computation in GPU kernels. Data flows into these pipelines, undergoes arithmetic transformation, and exits as results — with the goal of maximizing the number of such transformations per clock cycle.

For CDNA architectures with matrix operations, the VALU also dispatches matrix fused multiply-add (MFMA) instructions to specialized matrix units.

Scalar arithmetic logic unit (SALU)#

The SALU executes instructions uniformly across all threads in a wavefront, handling operations like:

Control flow (branches, loops)
Address calculations
Loading kernel arguments and constants
Managing wavefront-uniform values

The SALU includes:

A scalar processor for arithmetic and logic operations
12.5 KiB of SGPR storage per CU
A scalar memory (SMEM) unit for memory operations

Scalar operations reduce pressure on vector units and registers by handling uniform computations efficiently.

Vector memory unit (VMEM)#

The VMEM unit handles all vector memory operations, including loads, stores, and atomic operations. Each thread supplies its own address and data, though the hardware optimizes access through memory coalescing when threads access nearby addresses. The VMEM unit connects to the vector L1 cache and implements both address generation and coalescing logic.

Branch unit#

The branch unit executes jumps and branches for control flow changes affecting entire wavefronts. Note that the branch unit handles wavefront-level control flow, not execution mask updates for thread divergence, which are handled through predication.

Special function unit (SFU)#

The special function units accelerate certain arithmetic operations that are too complex or costly to implement purely within the standard vector ALUs.

SFUs are responsible for executing transcendental and reciprocal mathematical functions — operations such as exp, log, sin, cos, rcp (reciprocal), and rsqrt (reciprocal square root). These are heavily used in scientific, physics, and machine learning workloads, particularly in activation functions like GELU, sigmoid, or softmax.

Each compute unit includes a set of specialized pipelines or transcendental function units (TFUs) that handle these operations with dedicated hardware. While their throughput is lower than that of the primary SIMD pipelines, they enable these functions to execute efficiently without consuming general ALU bandwidth.

From the compiler’s perspective, these operations map to specific AMDGPU ISA instructions, such as:

v_exp_f32 — compute exponential base e
v_log_f32 — compute natural logarithm
v_sin_f32, v_cos_f32 — compute sine or cosine
v_rsq_f32, v_rcp_f32 — compute reciprocal or reciprocal square root

In CDNA3-based GPUs (like MI300), SFU throughput and latency have been tuned for deep learning primitives. For instance, exponentiation (exp) and logarithm (log) functions are now pipelined to complete in a few cycles per lane, allowing vectorized activation functions in large-scale matrix workloads to execute without significant stalls.

For programmers targeting ROCm or HIP, these SFU-accelerated operations are typically accessed through math intrinsics such as __expf, __logf, or __sinf, which the compiler lowers to the corresponding AMDGPU ISA instructions at compile time.

Load/store unit (LSU)#

The load/store units handle the transfer of data between the compute units and the GPU’s memory subsystems. They are responsible for issuing, tracking, and retiring memory operations — including loads from and stores to global memory, local shared memory, and caches — for thousands of concurrent threads.

Each compute unit includes a set of LSUs tightly integrated with its vector and scalar pipelines. These units handle memory instructions generated by active wavefronts — such as buffer_load, buffer_store, and flat_load_dword — and route them through the GPU’s hierarchical memory system.

The LSU’s responsibilities include:

Managing vector memory accesses for SIMD instructions
Coordinating local data share (LDS) reads and writes
Accessing the L0/L1 caches and forwarding requests to the L2 cache and HBM
Handling synchronization and atomic operations between threads and workgroups

LSUs manage thousands of outstanding memory requests per GPU, dynamically scheduling them to hide memory latency. While arithmetic pipelines continue executing other wavefronts, the LSUs maintain queues of pending transactions and reorder responses as data returns from memory.

On modern accelerators like MI300X, these LSUs achieve terabytes-per-second of aggregate memory bandwidth, coordinating thousands of active threads performing memory-intensive operations such as tensor loading, matrix tiling, and gradient updates.

Matrix fused multiply-add (MFMA)#

CDNA architectures (MI100 and newer) include specialized matrix acceleration units for high-throughput matrix operations. These units execute independently from other VALU operations, allowing overlap between matrix and vector computations. MFMA units support various data types including INT8, FP16, BF16, and FP32, with different throughput characteristics for each.

Matrix cores are GPU execution units that perform large-scale matrix operations in a single instruction. In AMD architectures, these units are formally known as MFMA (matrix fused multiply-add) units — the core hardware blocks responsible for accelerating deep learning, HPC, and dense linear-algebra workloads on modern Instinct GPUs.

Operating on entire tiles of matrices per instruction allows MFMA units to deliver far greater arithmetic throughput and energy efficiency than scalar or vector ALUs. Rather than fetching and decoding thousands of per-element multiply-add instructions, each MFMA instruction processes an entire matrix fragment — drastically reducing power per operation and increasing overall throughput.

An example MFMA instruction from the AMDGPU ISA is:

v_mfma_f32_16x16x4f16 v[0:15], v[16:31], v[32:47], v[0:15]

This instruction performs a matrix multiplication and accumulation D=A×B+C, where the fragments A, B, and C are stored in VGPRs. The suffix 16x16x4f16 indicates a tile size of 16×16, with an inner dimension of 4, operating on half-precision (FP16) inputs and accumulating into 32-bit floating-point outputs.

Since their introduction in CDNA1, and further expanded in CDNA2 and CDNA3, AMD’s matrix cores have become the primary source of peak floating-point performance in datacenter GPUs. For example, an MI300X accelerator achieves its multi-petaFLOP throughput primarily through MFMA units.

The MFMA units use both standard VGPRs and additional accumulation VGPRs (AGPRs) on supported architectures, providing up to 512 KiB of combined register storage per CU.

Vector L1 cache#

Each CU contains a dedicated vector L1 data cache (vL1D) serving vector memory operations. Key characteristics include:

Write-through design (writes go directly to L2)
Optimization for high-bandwidth streaming access patterns
Coherent with other CUs through software management
Typical size of 16 KB per CU

The vector cache tags are checked for all vector memory operations, with misses forwarded to the L2 cache. The write-through design simplifies coherence at the cost of write bandwidth.

Memory hierarchy and system#

The GPU memory system provides the bandwidth and capacity needed for massive parallel computation while managing data coherence and access efficiency.

Memory organization#

Block diagram showing four compute engines with L2 cache, memory controllers, and Infinity Fabric interconnect on CDNA2 — CDNA2 Graphics Compute Die organization showing memory subsystem#

AMD GPUs typically use high-bandwidth memory (HBM) for data-intensive workloads, providing significantly higher bandwidth than traditional GDDR memory at the cost of slightly higher latency. The memory system includes:

Memory channels: Multiple independent memory controllers (typically 8-16)
L2 cache banks: Distributed cache banks serving as the coherence point
Infinity Fabric: High-speed interconnect for data routing

L2 cache architecture#

The L2 cache serves as the coherence point for all GPU memory accesses and is shared by all compute units. The L2 consists of multiple independent channels (32 on CDNA GPUs at 256-byte interleaving) that operate in parallel.

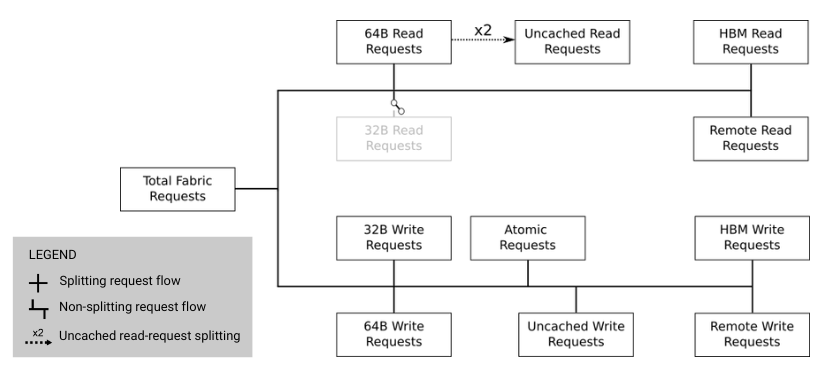

Diagram showing L2 cache to Infinity Fabric transaction flow with request categorization and routing — L2 cache to Infinity Fabric transaction flow#

Key characteristics:

Channel organization: Each channel handles a portion of the address space, with addresses interleaved across channels for load balancing.
Hit-on-miss behavior: If a request arrives for a pending cache line fill, it counts as a hit, improving the effective hit rate.
Write coalescing: Multiple writes to the same cache line are combined.
Atomic operation support: Atomics execute directly in the L2 cache for coherence.

L2-Fabric interface: Requests missing in L2 are routed through Infinity Fabric to the appropriate memory location, which could be:

Local HBM on the same GPU
Remote GPU memory (in multi-GPU systems)
System memory (CPU DRAM)

The interface categorizes requests by type (read/write), size (32B/64B), and destination for optimal routing.

Memory coherence#

GPU memory coherence differs significantly from CPU designs to optimize for throughput over latency:

Write-through L1 caches: All writes update both L1 and L2, ensuring L2 always has the latest data. This eliminates the need for complex coherence protocols between L1 caches but requires higher write bandwidth.

Software-managed coherence: Coherence between CUs requires explicit synchronization through:

Memory fences for ordering
Cache invalidation instructions
Atomic operations (executed at L2 level)
Kernel boundaries (implicit synchronization)

Write combining: To handle partial cache line updates from different CUs, the GPU uses write masks indicating which bytes to update. This prevents false sharing issues while maintaining correctness.

Memory coalescing#

Memory coalescing combines memory accesses from multiple threads into fewer transactions, significantly improving bandwidth utilization. The coalescing hardware in the VMEM unit analyzes addresses from all threads in a wavefront and groups them into the minimum number of cache line requests.

Coalesced access pattern: When consecutive threads access consecutive memory addresses, the hardware can combine all 64 thread requests into as few as 4-8 cache line requests (depending on data size and alignment).

Non-coalesced access pattern: When threads access widely separated addresses, each thread can generate a separate memory transaction, reducing effective bandwidth by up to 16x or more.

To achieve optimal memory performance:

Ensure consecutive threads access consecutive memory addresses
Align data structures to cache line boundaries (64B or 128B)
Use structure-of-arrays rather than array-of-structures layouts
Consider padding to avoid bank conflicts

Architecture variants#

AMD supports multiple GPU architecture families optimized for different use cases while maintaining HIP compatibility.

Graphics Core Next (GCN)#

GCN represents the foundational architecture for modern AMD GPUs, establishing key design principles still used today:

64-thread wavefronts
Four SIMD units per CU with 16 lanes each
Scalar unit for wavefront-uniform operations
LDS with 32 banks

Multiple GCN generations (GCN1-5) introduced incremental improvements in process technology, clock speeds, and instruction set features while maintaining the core architectural philosophy.

CDNA architecture#

CDNA (Compute DNA) specializes in high-performance computing and machine learning workloads. Building on GCN principles, CDNA adds significant compute enhancements:

Block diagram showing CDNA3 compute unit with matrix core unit, shader cores, L1 cache, and local data share — CDNA3 compute unit with matrix acceleration#

Matrix Core Unit: Specialized hardware for matrix multiply-accumulate operations, providing up to 16 times more throughput than vector units for supported operations. Matrix cores support multiple precisions (INT8, FP16, BF16, FP32) with varying performance characteristics.

Accumulation VGPRs (AGPRs): Additional register file space (up to 256 KB) dedicated to matrix accumulation, doubling the available register storage for matrix operations. Data movement between VGPRs and AGPRs uses specialized instructions (v_accvgpr_*).

Enhanced memory bandwidth: CDNA GPUs typically use HBM2/HBM2e/HBM3 memory, providing up to 3.2 TB/s bandwidth on high-end models.

Multi-die designs: CDNA2 (MI250) and CDNA3 (MI300) use chiplet architectures with multiple dies connected through high-speed links, scaling to higher compute and memory capacities.

RDNA architecture#

RDNA optimizes for graphics and lower-latency compute workloads through fundamental architectural changes:

Block diagram showing RDNA3 work group processor with dual compute units, shared caches, and 32-wide SIMD units — RDNA3 work group processor architecture#

Wave32 execution: Primary execution mode uses 32-thread wavefronts, reducing divergence penalties and register pressure. Wave64 mode is available for backward compatibility.

Dual compute units: The work group processor (WGP) replaces standalone CUs, containing two closely coupled compute units sharing resources:

Each CU has two 32-wide SIMD units (vs. four 16-wide in GCN)
Wavefronts execute in a single cycle on 32-wide SIMDs
Reduced instruction latency improves responsiveness

Three-level cache hierarchy:

L0 cache: Per-CU cache (equivalent to GCN’s L1)
L1 cache: Shared between CUs in a WGP (new intermediate level)
L2 cache: Global cache shared across all WGPs

128-byte cache lines: Doubled from 64 bytes in GCN, aligning with Wave32 access patterns (32 threads × 4 bytes = 128 bytes).

These RDNA optimizations target gaming workloads where latency matters more than pure throughput, though the architecture remains capable for general compute tasks.

Performance considerations#

Understanding hardware characteristics helps you optimize GPU applications for maximum performance.

Occupancy and resource limits#

Occupancy measures the ratio of active wavefronts to maximum possible wavefronts on a CU. Higher occupancy generally improves latency hiding but is limited by:

Register usage: Each wavefront requires VGPRs and SGPRs from finite pools
LDS allocation: Shared memory used per workgroup
Wavefront slots: Fixed number of execution contexts per CU
Workgroup size: Smaller workgroups can waste resources

Balancing these resources is critical for achieving optimal occupancy. Tools like rocprof can help analyze occupancy and identify limiting factors.

Latency hiding through multithreading#

GPUs hide memory and instruction latency through massive hardware multithreading rather than complex CPU techniques like out-of-order execution or speculation. With sufficient wavefronts:

Memory latency is hidden by executing other wavefronts during waits
Pipeline latencies are covered by round-robin wavefront scheduling
No context switch overhead as all contexts remain resident

The hardware can switch between wavefronts every cycle, maintaining high ALU utilization even with long-latency operations in flight.

Memory bandwidth utilization#

Effective memory bandwidth depends on access patterns:

Coalesced access: Can achieve 70-90% of peak bandwidth
Random access: Might achieve only 5-15% of peak bandwidth
Bank conflicts: Can serialize LDS access, reducing throughput

Memory-bound kernels should focus on:

Maximizing coalescing through proper data layout
Prefetching and data reuse in LDS
Balancing computation with memory access
Using appropriate cache policies

Hardware-specific optimizations#

Different AMD GPU architectures benefit from tailored optimizations:

For GCN/CDNA:

Optimize for 64-thread wavefront granularity
Leverage matrix cores for applicable algorithms
Consider AGPR usage for register spilling

For RDNA:

Design for 32-thread wavefront execution
Utilize improved divergence handling
Take advantage of additional cache level

Architecture-agnostic:

Minimize divergent control flow
Ensure memory access coalescing
Balance resource usage for occupancy
Overlap computation with memory access

Summary#

AMD GPU hardware architecture provides massive parallelism through hierarchical organization of compute resources, specialized execution units, and a sophisticated memory system. Understanding these hardware details—from the command processor through shader engines to individual compute units and the memory hierarchy—enables you to write more efficient GPU applications.

Key hardware concepts for optimization include:

Workgroup scheduling and resource management by the SPI
Instruction scheduling and wavefront execution in compute units
Memory coalescing and cache behavior
Architecture-specific features (matrix cores, Wave32/64 modes)
Resource limits affecting occupancy

For details on mapping parallel algorithms to this hardware, see the Introduction to the HIP programming model chapter. For specific optimization techniques, consult the performance optimization guides in the ROCm documentation.
